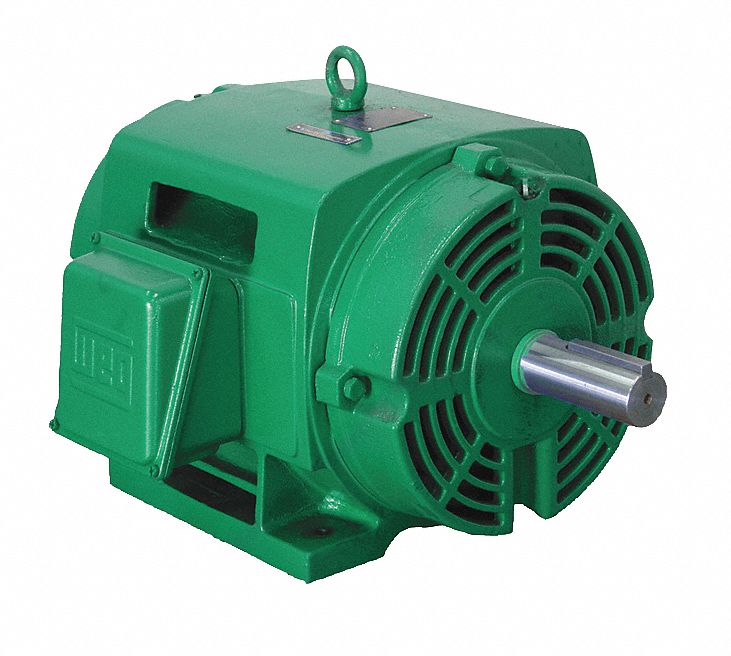

Weg 3G-OTH-62546 — Technical Specifications

Name: Weg 3G-OTH-62546 WEG General Purpose Motor: Rigid Base Mount, Open Drip Proof, 100 hp, 230/460V AC, 3,600 RPM (MPN 10036OT3E365TS-W40). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 232.0/116.0 A; Nameplate RPM @ 60 Hz: 3,600 RPM; Motor Enclosure: ODP.
Brand: Weg

The WEG General Purpose Motor: Rigid Base Mount is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It delivers 100 hp at 3,600 RPM and operates at 230/460V AC with a full load current of 232.0/116.0 A (MPN 10036OT3E365TS-W40).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Open Drip Proof, 100 hp, 3,600 RPM
Brand	WEG
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	3,600 RPM
Manufacturer Part Number	10036OT3E365TS-W40
Full Load Current @ 60 Hz	232.0/116.0 A
Nameplate Voltage @ 60 Hz	230/460V AC
