Weg 3G-OTH-72003 — Technical Specifications

Name: Weg 3G-OTH-72003 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 1/2 hp, 208-230/460V AC (MPN .5036ES3E56-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 1.86-1.69/0.843 A; Nameplate RPM @ 60 Hz: 3,500 RPM; Motor Enclosure: TEFC.
Brand: Weg

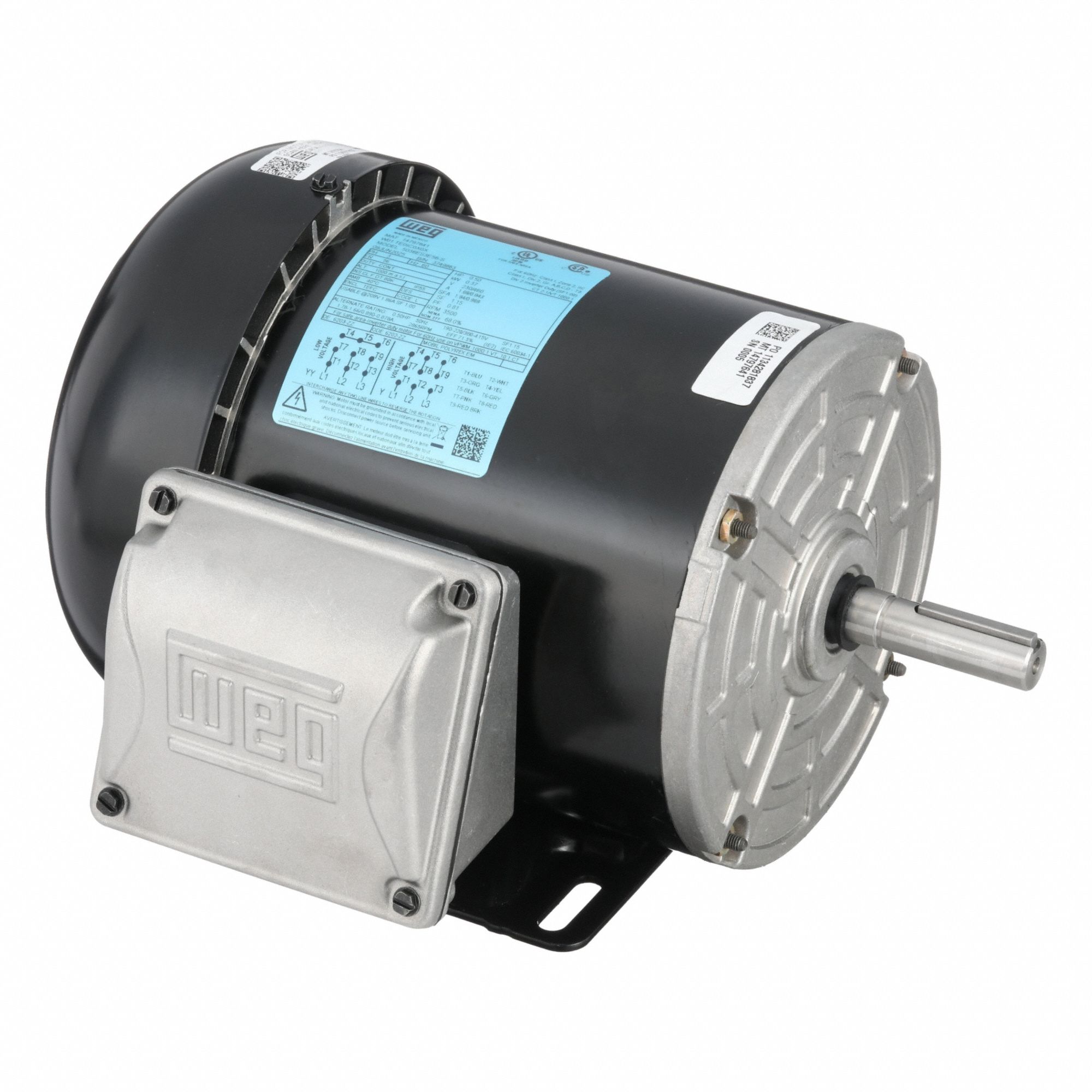

The WEG General Purpose Motor: Rigid Base Mount is a TEFC rigid base 3-phase AC motor with 1/2 hp, 3,500 RPM at 60 Hz, and a voltage rating of 208-230/460V AC. It draws a full load current of 1.86-1.69/0.843 A at 60 Hz. This motor is designed for general-purpose industrial applications requiring a compact, fan-cooled drive solution.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	Totally Enclosed Fan Cooled, 1/2 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,500 RPM
Manufacturer Part Number	.5036ES3E56-S
Full Load Current @ 60 Hz	1.86-1.69/0.843 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
