Weg 3G-OTH-54804 — Technical Specifications

Name: Weg 3G-OTH-54804 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 1/3 hp, 208-230/460V AC (MPN .3318ES3E56-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 1.38-1.25/0.624 A; Nameplate RPM @ 60 Hz: 1,760 RPM; Motor Enclosure: TEFC.
Brand: Weg

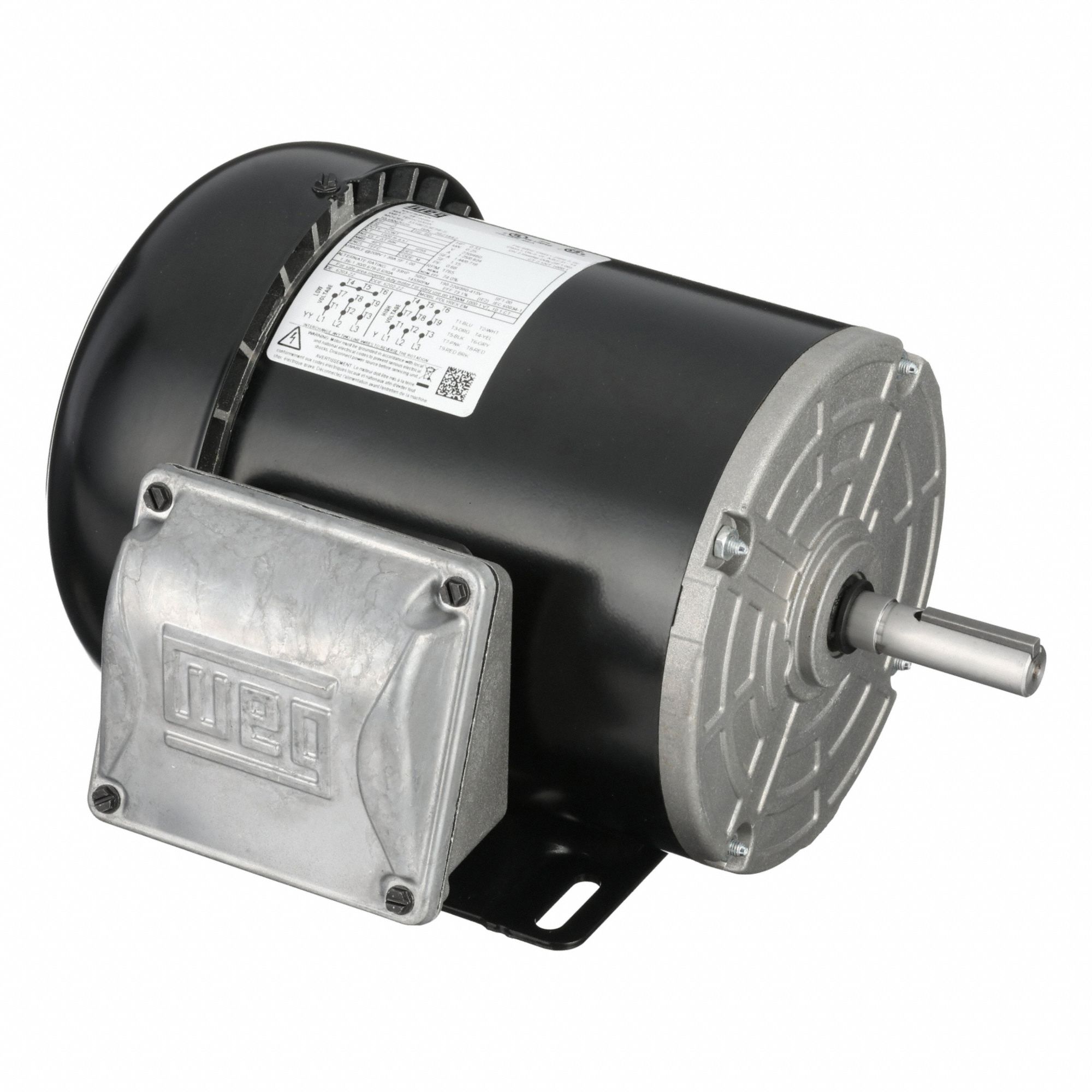

The WEG General Purpose Motor: Rigid Base Mount is a TEFC rigid base 3-phase AC motor. It operates at 1,760 RPM at 60 Hz with a nameplate voltage of 208-230/460V AC and a full load current of 1.38-1.25/0.624 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	Totally Enclosed Fan Cooled, 1/3 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,760 RPM
Manufacturer Part Number	.3318ES3E56-S
Full Load Current @ 60 Hz	1.38-1.25/0.624 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
