Weg 3G-OTH-55271 — Technical Specifications

Name: Weg 3G-OTH-55271 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 1/2 hp, 3,500 RPM (MPN .5036ES3E56C-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 1.86-1.69/0.843 A; Nameplate RPM @ 60 Hz: 3,500 RPM; Motor Enclosure: TEFC.
Brand: Weg

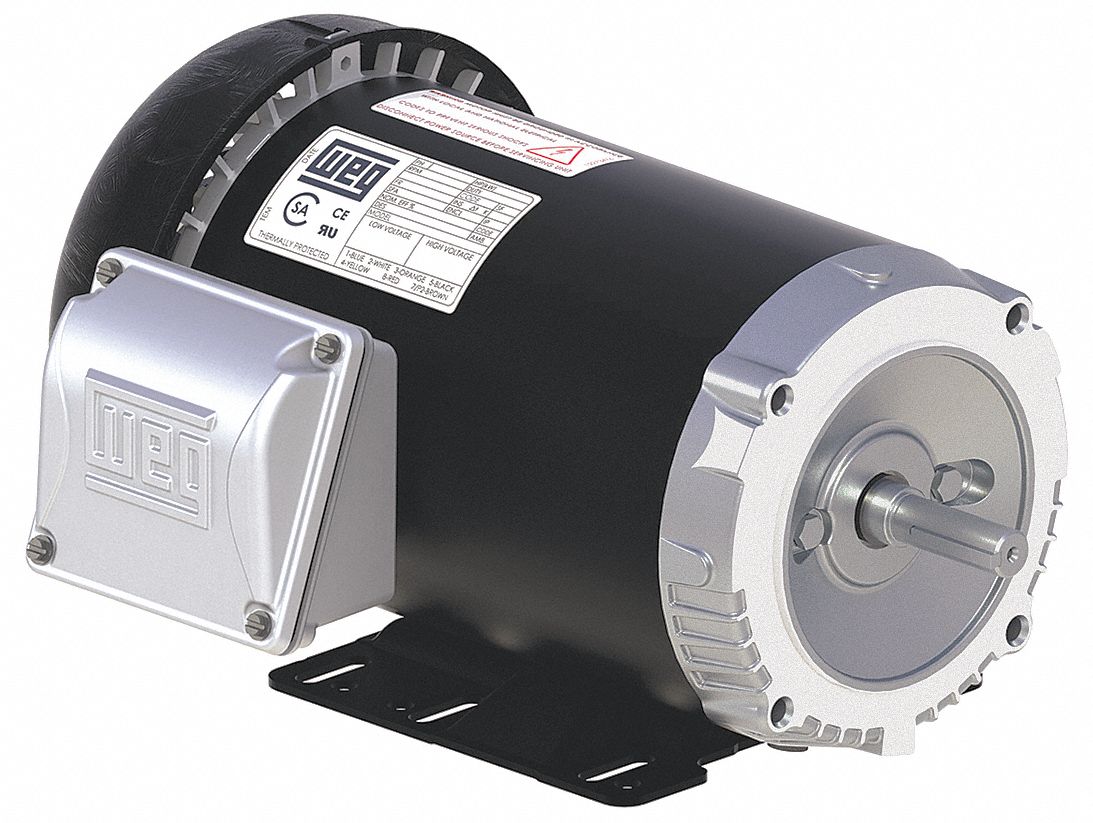

The WEG General Purpose Motor: C-Face/Rigid Base Mount is a TEFC 3-phase AC motor with 1/2 hp, 3,500 RPM at 60 Hz. It operates at 208-230/460V AC with a full load current of 1.86-1.69/0.843 A. This motor features a C-face with rigid base mount design.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Fan Cooled, 1/2 hp, 3,500 RPM
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,500 RPM
Manufacturer Part Number	.5036ES3E56C-S
Full Load Current @ 60 Hz	1.86-1.69/0.843 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
