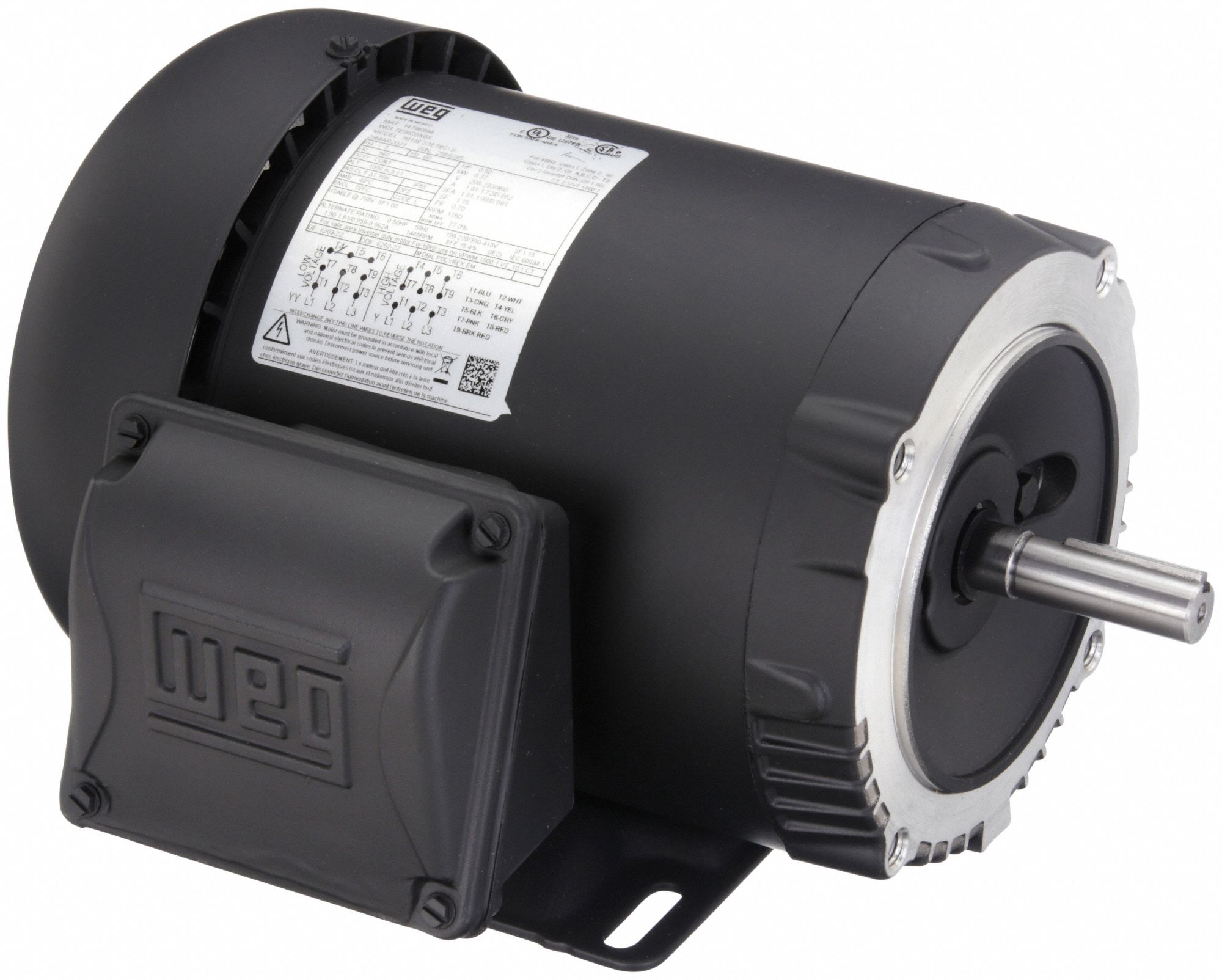

Weg 3G-OTH-55267 — Technical Specifications

Name: Weg 3G-OTH-55267 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 1/2 hp, 1,760 RPM (MPN .5018ES3E56C-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 1.91-1.72/0.862 A; Nameplate RPM @ 60 Hz: 1,760 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor is a C-Face with Rigid Base 3-Phase AC motor, model .5018ES3E56C-S, featuring a TEFC enclosure. It delivers 1/2 hp at 1,760 RPM on 60 Hz and operates at 208-230/460V AC with a full load current of 1.91-1.72/0.862 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Fan Cooled, 1/2 hp, 1,760 RPM
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,760 RPM
Manufacturer Part Number	.5018ES3E56C-S
Full Load Current @ 60 Hz	1.91-1.72/0.862 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
