Weg 3G-OTH-69634 — Technical Specifications

Name: Weg 3G-OTH-69634 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 1 hp, 230/460V AC (MPN 00136EG3E143T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 2.70/1.35 A; Nameplate RPM @ 60 Hz: 3,485 RPM; Motor Enclosure: TEFC.
Brand: Weg

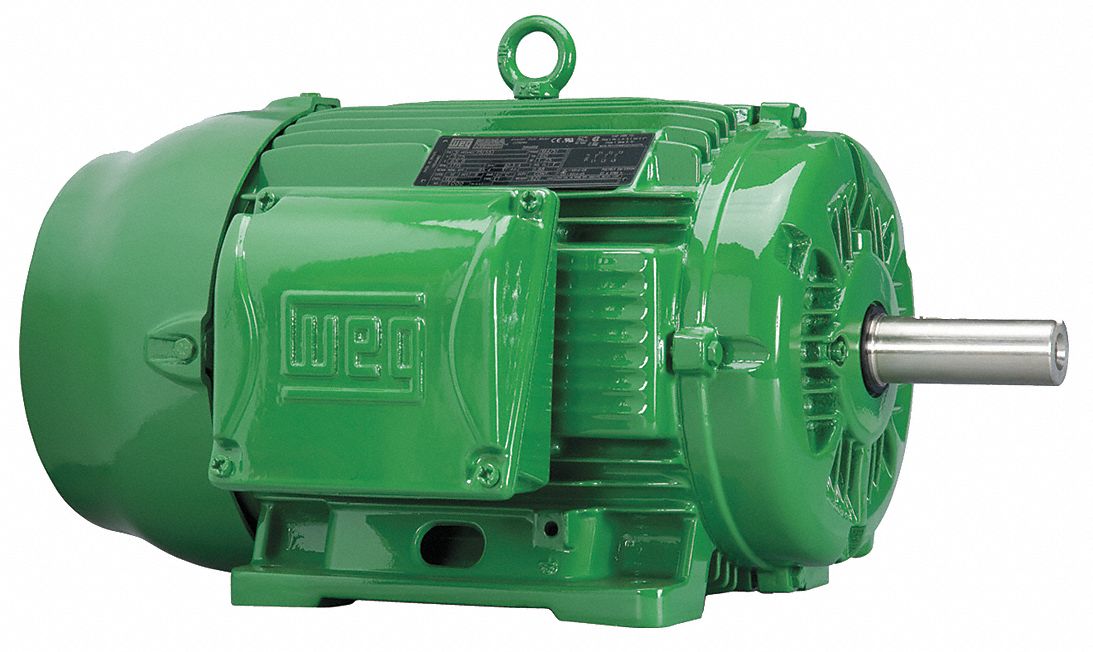

The WEG General Purpose Motor: Rigid Base Mount (SKU 39J093, MPN 00136EG3E143T-W22) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 1 hp, with a nameplate voltage of 230/460V AC, full load current of 2.70/1.35 A at 60 Hz, and a nameplate RPM of 3,485 RPM at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 1 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,485 RPM
Manufacturer Part Number	00136EG3E143T-W22
Full Load Current @ 60 Hz	2.70/1.35 A
Nameplate Voltage @ 60 Hz	230/460V AC
