Weg 3G-OTH-58729 — Technical Specifications

Name: Weg 3G-OTH-58729 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 3 hp, 230/460V AC (MPN 00336EG3E182T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 7.34/3.67 A; Nameplate RPM @ 60 Hz: 3,520 RPM; Motor Enclosure: TEFC.
Brand: Weg

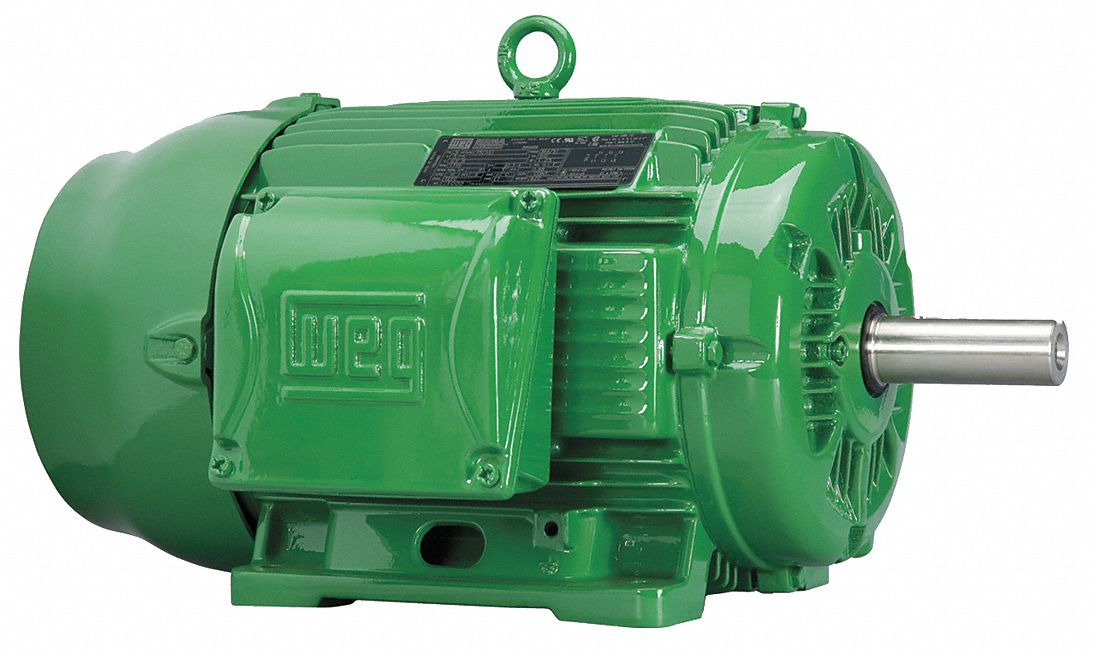

The WEG General Purpose Motor: Rigid Base Mount (MPN 00336EG3E182T-W22) is a 3 hp, rigid base 3-phase AC motor with a TEFC enclosure. It operates at 3,520 RPM at 60 Hz and accepts 230/460V AC input, drawing 7.34/3.67 A full load current.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 3 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,520 RPM
Manufacturer Part Number	00336EG3E182T-W22
Full Load Current @ 60 Hz	7.34/3.67 A
Nameplate Voltage @ 60 Hz	230/460V AC
