Weg 3G-OTH-60361 — Technical Specifications

Name: Weg 3G-OTH-60361 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 15 hp, 230/460V AC (MPN 01518EG3E254T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 35.6/17.8 A; Nameplate RPM @ 60 Hz: 1,775 RPM; Motor Enclosure: TEFC.
Brand: Weg

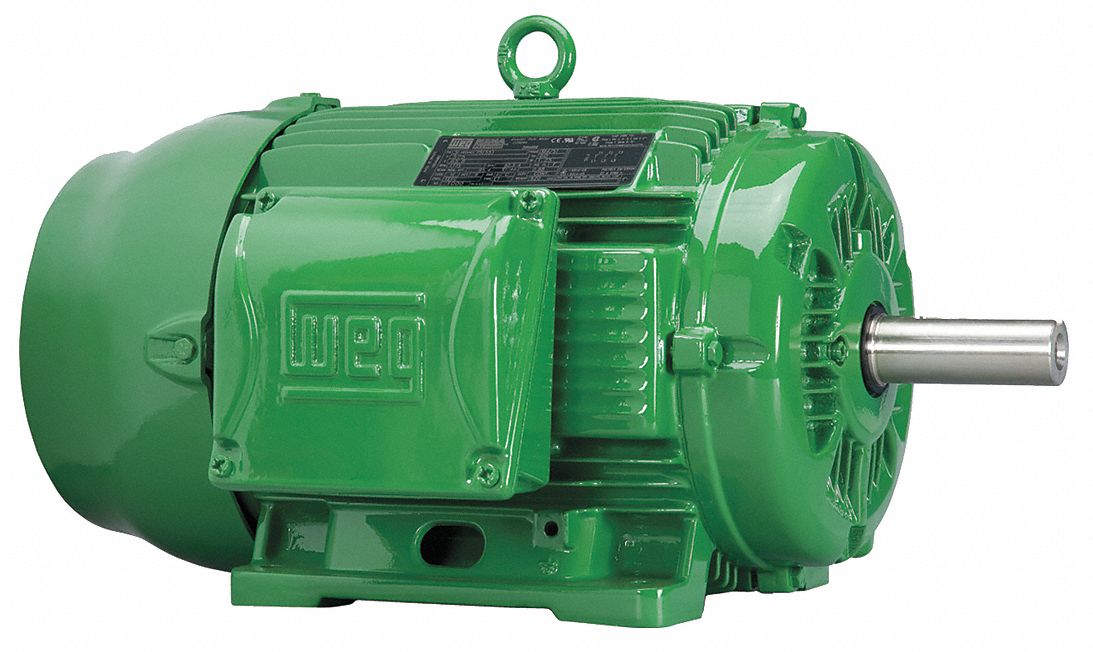

The WEG General Purpose Motor is a rigid base mount, 3-phase AC motor with a TEFC enclosure. It delivers 15 hp at 1,775 RPM (60 Hz) and operates on 230/460V AC, drawing 35.6/17.8 A full load current (MPN 01518EG3E254T-W22).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 15 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,775 RPM
Manufacturer Part Number	01518EG3E254T-W22
Full Load Current @ 60 Hz	35.6/17.8 A
Nameplate Voltage @ 60 Hz	230/460V AC
