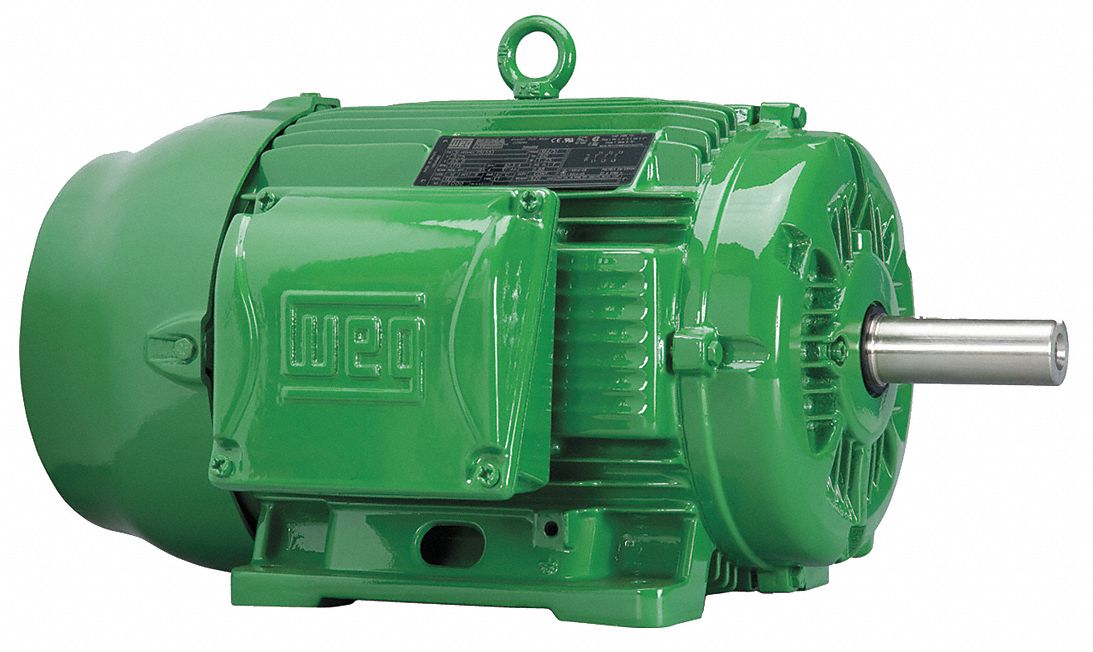

Weg 3G-OTH-76062 — Technical Specifications

Name: Weg 3G-OTH-76062 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 30 hp, 230/460V AC (MPN 03036EG3E286TS-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 67.0/33.5 A; Nameplate RPM @ 60 Hz: 3,550 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor: Rigid Base Mount (MPN 03036EG3E286TS-W22) is a 30 hp, TEFC, rigid base 3-phase AC motor. It operates at 3,550 RPM with a full load current of 67.0/33.5 A at 230/460V AC.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 30 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,550 RPM
Manufacturer Part Number	03036EG3E286TS-W22
Full Load Current @ 60 Hz	67.0/33.5 A
Nameplate Voltage @ 60 Hz	230/460V AC
