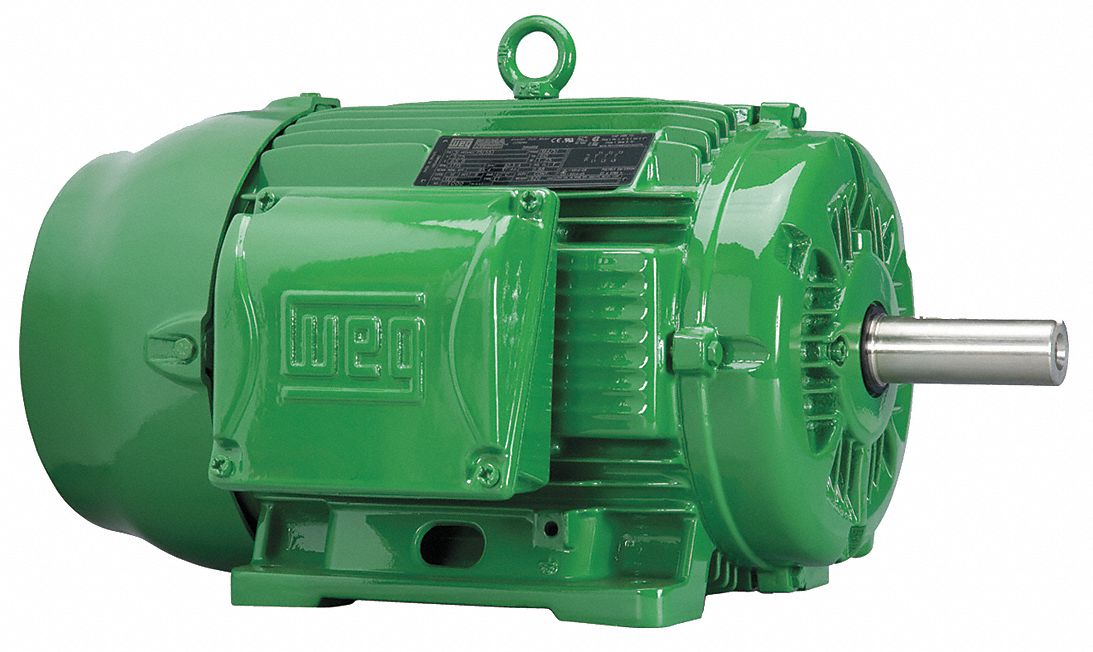

Weg 3G-OTH-76103 — Technical Specifications

Name: Weg 3G-OTH-76103 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 50 hp, 230/460V AC (MPN 05036EG3E326TS-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 114.0/57.1 A; Nameplate RPM @ 60 Hz: 3,570 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor: Rigid Base Mount (MPN 05036EG3E326TS-W22) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 50 hp with a nameplate voltage of 230/460V AC and a full load current of 114.0/57.1 A at 60 Hz. The motor operates at a nameplate RPM of 3,570 RPM at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 50 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,570 RPM
Manufacturer Part Number	05036EG3E326TS-W22
Full Load Current @ 60 Hz	114.0/57.1 A
Nameplate Voltage @ 60 Hz	230/460V AC
