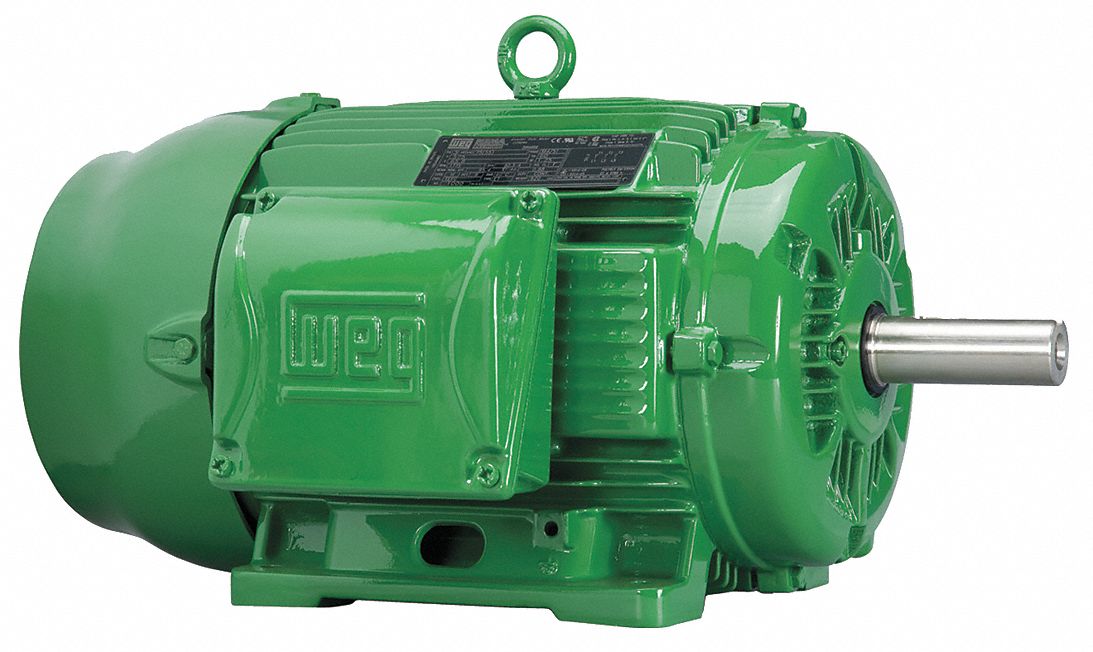

Weg 3G-OTH-81768 — Technical Specifications

Name: Weg 3G-OTH-81768 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 200 hp, 230/460V AC (MPN 20018EG3G449T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 234.0 A; Nameplate RPM @ 60 Hz: 1,785 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor: Rigid Base Mount (SKU 39J146, MPN 20018EG3G449T-W22) is a TEFC rigid base 3-phase AC motor rated at 200 hp. It operates at 1,785 RPM at 60 Hz with a full load current of 234.0 A and a nameplate voltage of 230/460V AC.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 200 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,785 RPM
Manufacturer Part Number	20018EG3G449T-W22
Full Load Current @ 60 Hz	234.0 A
Nameplate Voltage @ 60 Hz	230/460V AC
