Weg 3G-OTH-73838 — Technical Specifications

Name: Weg 3G-OTH-73838 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 200 hp, 230/460V AC (MPN 20012EG3G449T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 245.0 A; Nameplate RPM @ 60 Hz: 1,190 RPM; Motor Enclosure: TEFC.
Brand: Weg

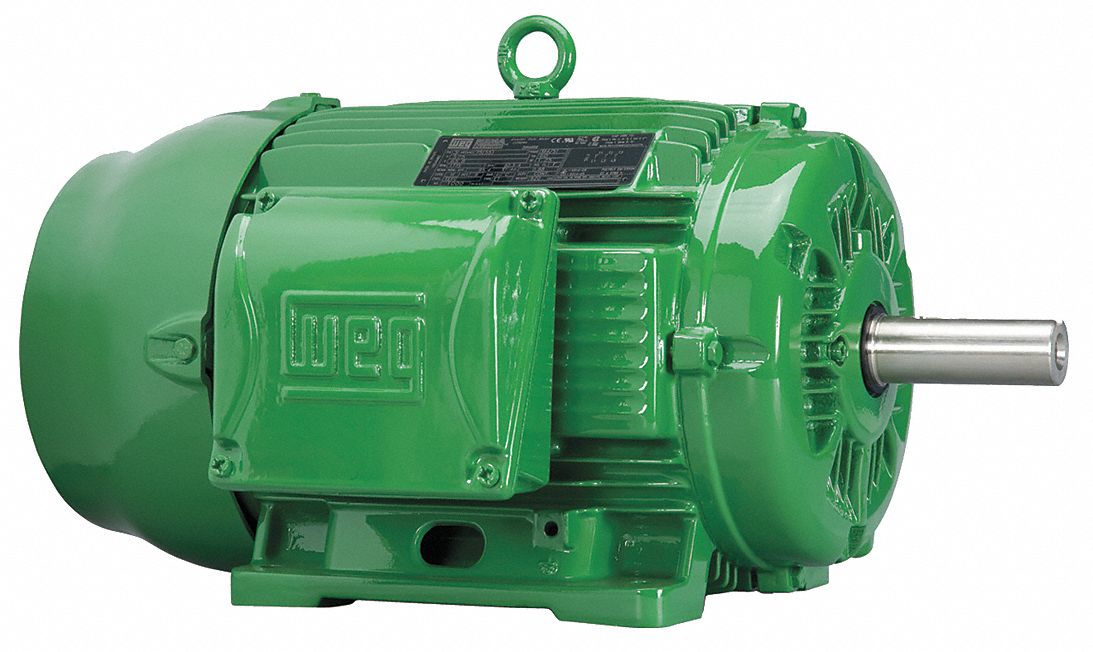

The WEG General Purpose Motor: Rigid Base Mount is a TEFC rigid base 3-phase AC motor, model 20012EG3G449T-W22. It delivers 200 hp with a nameplate RPM of 1,190 RPM at 60 Hz and a full load current of 245.0 A at 230/460V AC.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 200 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,190 RPM
Manufacturer Part Number	20012EG3G449T-W22
Full Load Current @ 60 Hz	245.0 A
Nameplate Voltage @ 60 Hz	230/460V AC
