Weg 3G-OTH-56073 — Technical Specifications

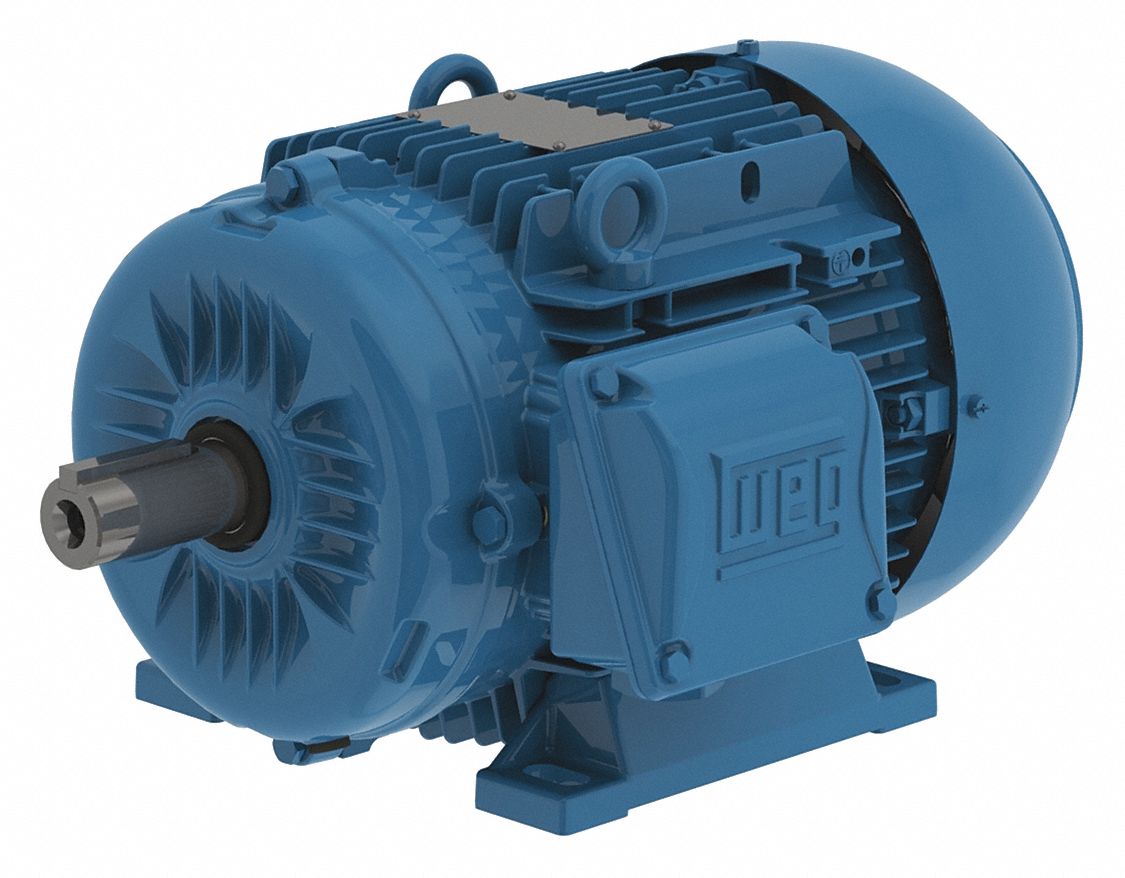

Name: Weg 3G-OTH-56073 WEG Metric Motor: 2 hp, Rigid Base Mount, 90L Frame Size, Totally Enclosed Fan Cooled, 460V AC (MPN 13984010). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 460V AC; Full Load Amps @ 60 Hz: 2.83 A; Nameplate RPM @ 60 Hz: 1755 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG Metric Motor: 2 hp is a Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It operates at 1755 RPM and 460V AC at 60 Hz, drawing 2.83 A full load amps. This motor features a 90L frame size and is identified by manufacturer part number 13984010.

View Product & Quote

Technical Specifications

Parameter	Value
AC	460V
Type	Rigid Base Mount, Totally Enclosed Fan Cooled
Brand	WEG
Frame Size	90L
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1755 RPM
Full Load Amps @ 60 Hz	2.83 A
Manufacturer Part Number	13984010
Nameplate Voltage @ 60 Hz	460V AC
