Weg 3G-OTH-60440 — Technical Specifications

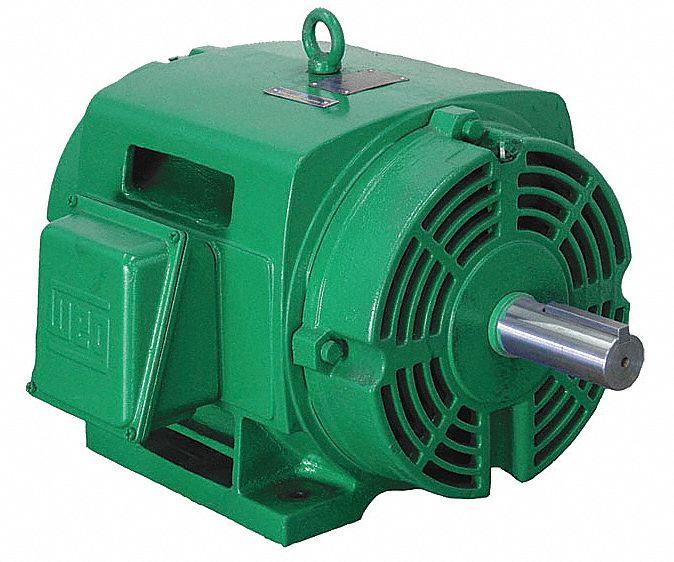

The WEG General Purpose Motor is a Rigid Base 3-Phase AC Motor with an Open Drip Proof (ODP) enclosure. It is rated at 15 hp, 575V AC, 1,775 RPM, and 14.9 A full load current at 60 Hz (MPN 01518OT3H254T).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Open Drip Proof, 15 hp, 1,775 RPM |
| Brand | WEG |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,775 RPM |
| Manufacturer Part Number | 01518OT3H254T |
| Full Load Current @ 60 Hz | 14.9 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
