Weg 3G-OTH-75985 — Technical Specifications

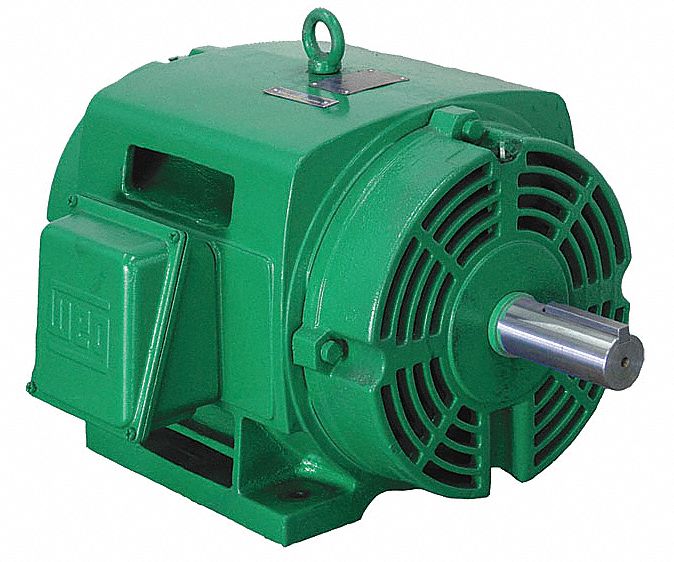

The WEG General Purpose Motor: Rigid Base Mount is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It is rated at 50 hp, 575V AC, 1,775 RPM, and a full load current of 47.9 A at 60 Hz (MPN 05018OT3H326T).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Open Drip Proof, 50 hp, 1,775 RPM |
| Brand | WEG |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,775 RPM |
| Manufacturer Part Number | 05018OT3H326T |
| Full Load Current @ 60 Hz | 47.9 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
