Weg 3G-OTH-76012 — Technical Specifications

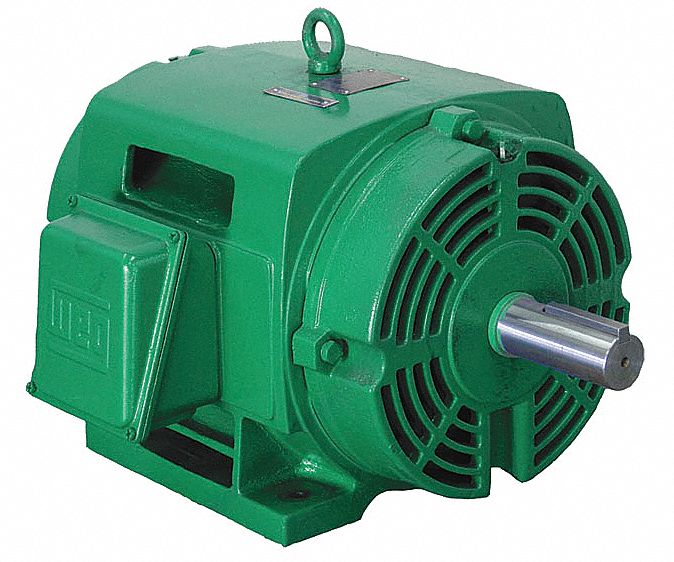

The WEG General Purpose Motor: Rigid Base Mount is a rigid base 3-phase general purpose AC motor with an ODP (Open Drip Proof) enclosure. It delivers 60 hp at 1,755 RPM and 575V AC, with a full load current of 55.9 A (MPN 06018OT3H364T).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Open Drip Proof, 60 hp, 1,755 RPM |
| Brand | WEG |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,755 RPM |
| Manufacturer Part Number | 06018OT3H364T |
| Full Load Current @ 60 Hz | 55.9 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
