Weg 3G-OTH-68203 — Technical Specifications

Name: Weg 3G-OTH-68203 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 25 hp, 230/460V AC (MPN 02512ET3E324T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 61.6/30.8 A; Nameplate RPM @ 60 Hz: 1,175 RPM; Motor Enclosure: TEFC.
Brand: Weg

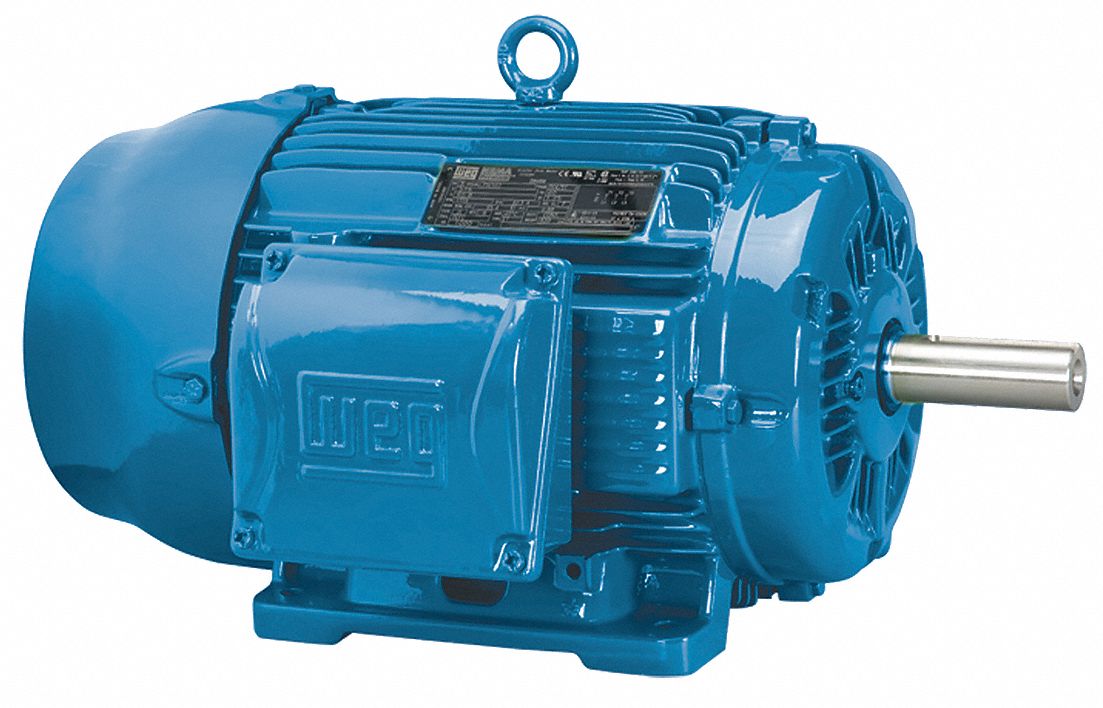

The WEG General Purpose Motor: Rigid Base Mount is a TEFC rigid base 3-phase AC motor rated at 25 hp. It operates at 1,175 RPM with a full load current of 61.6/30.8 A at 230/460V AC (MPN 02512ET3E324T-W22).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 25 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,175 RPM
Manufacturer Part Number	02512ET3E324T-W22
Full Load Current @ 60 Hz	61.6/30.8 A
Nameplate Voltage @ 60 Hz	230/460V AC
