Weg 3G-OTH-73951 — Technical Specifications

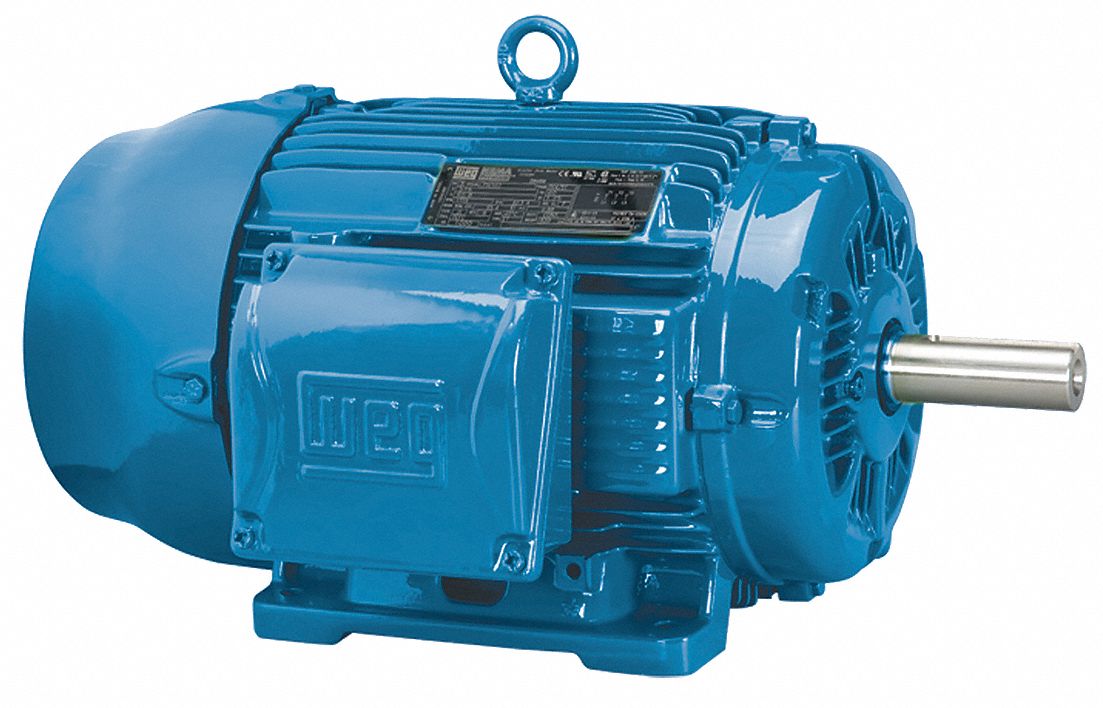

The WEG General Purpose Motor: Rigid Base Mount (SKU 6AJF7) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It delivers 125 hp, 1,185 RPM at 60 Hz, and operates at 230/460V AC with a full load current of 143.0 A (MPN 12512ET3G445T-W22).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Fan Cooled, 125 hp |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,185 RPM |
| Manufacturer Part Number | 12512ET3G445T-W22 |
| Full Load Current @ 60 Hz | 143.0 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
