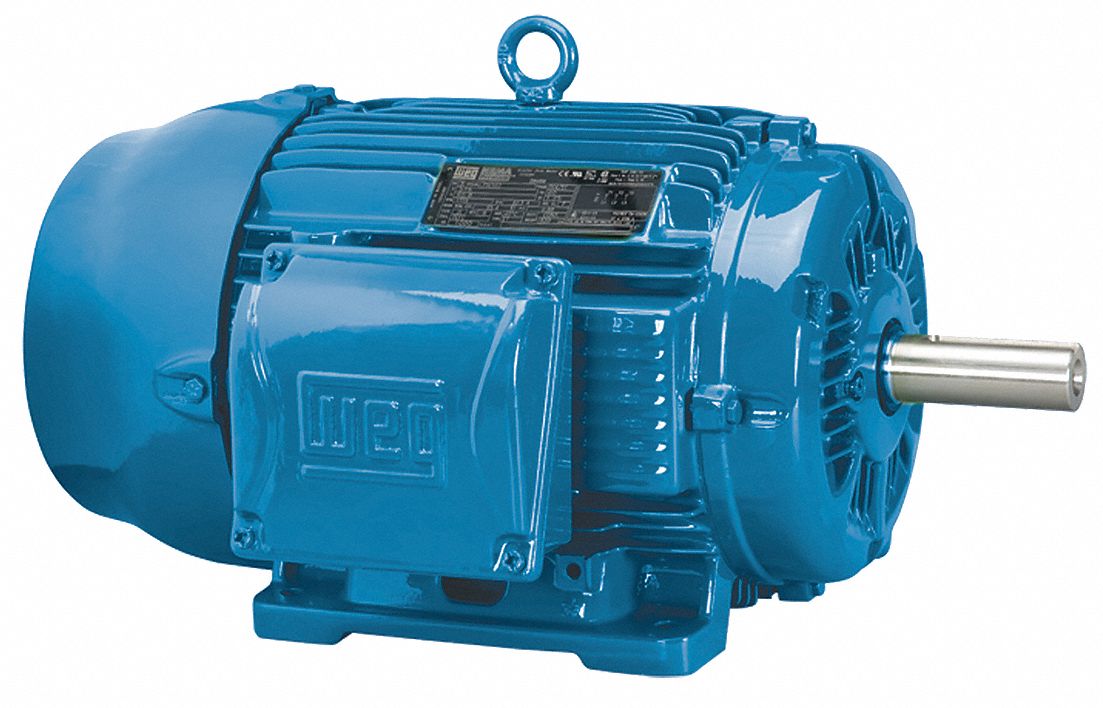

Weg 3G-OTH-58804 — Technical Specifications

Name: Weg 3G-OTH-58804 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 3 hp, 575V AC, 3,530 RPM (MPN 00336ET3H182T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 575V AC; Full Load Current @ 60 Hz: 2.9 A; Nameplate RPM @ 60 Hz: 3,530 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor: Rigid Base Mount (SKU 6APX2) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 3 hp, 575V AC, 3,530 RPM, and has a full load current of 2.9 A at 60 Hz (MPN 00336ET3H182T-W22).

View Product & Quote

Technical Specifications

Parameter	Value
AC	575V
Type	Totally Enclosed Fan Cooled, 3 hp, 3,530 RPM
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,530 RPM
Manufacturer Part Number	00336ET3H182T-W22
Full Load Current @ 60 Hz	2.9 A
Nameplate Voltage @ 60 Hz	575V AC
