Weg 3G-OTH-77767 — Technical Specifications

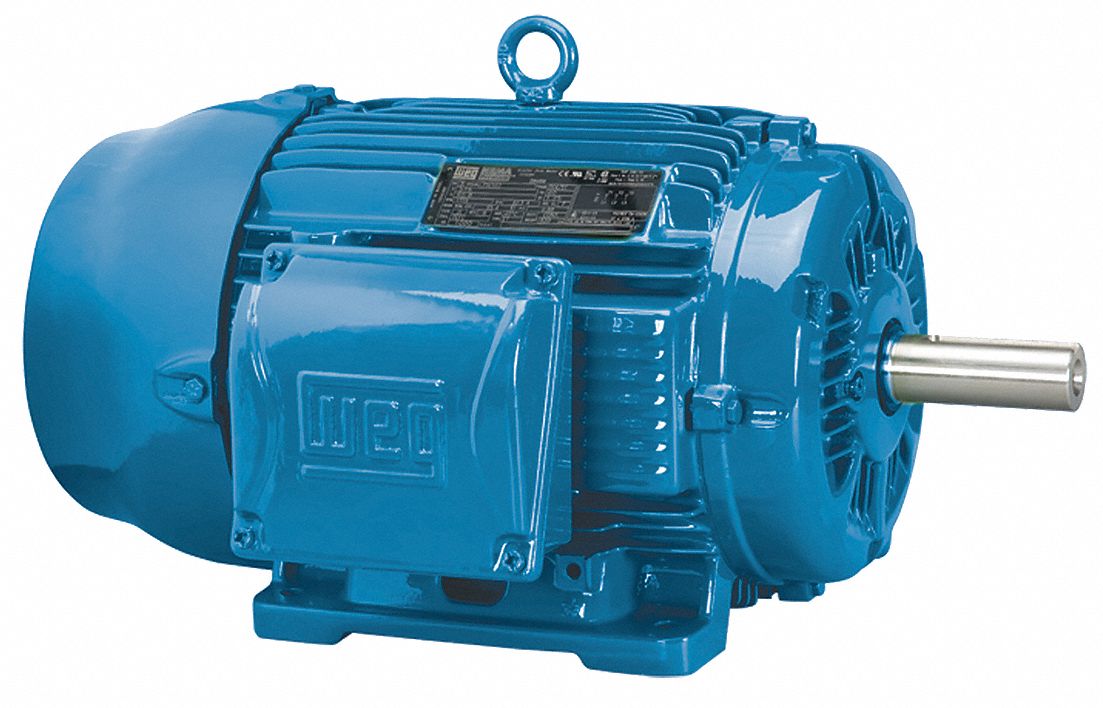

The WEG General Purpose Motor: Rigid Base Mount (SKU 6APX3, MPN 00318ET3H182T-W22) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 3 hp, 575V AC, 1,770 RPM, and a full load current of 3.13 A at 60 Hz.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 3 hp, 1,770 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,770 RPM |
| Manufacturer Part Number | 00318ET3H182T-W22 |
| Full Load Current @ 60 Hz | 3.13 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
