Weg 3G-OTH-66575 — Technical Specifications

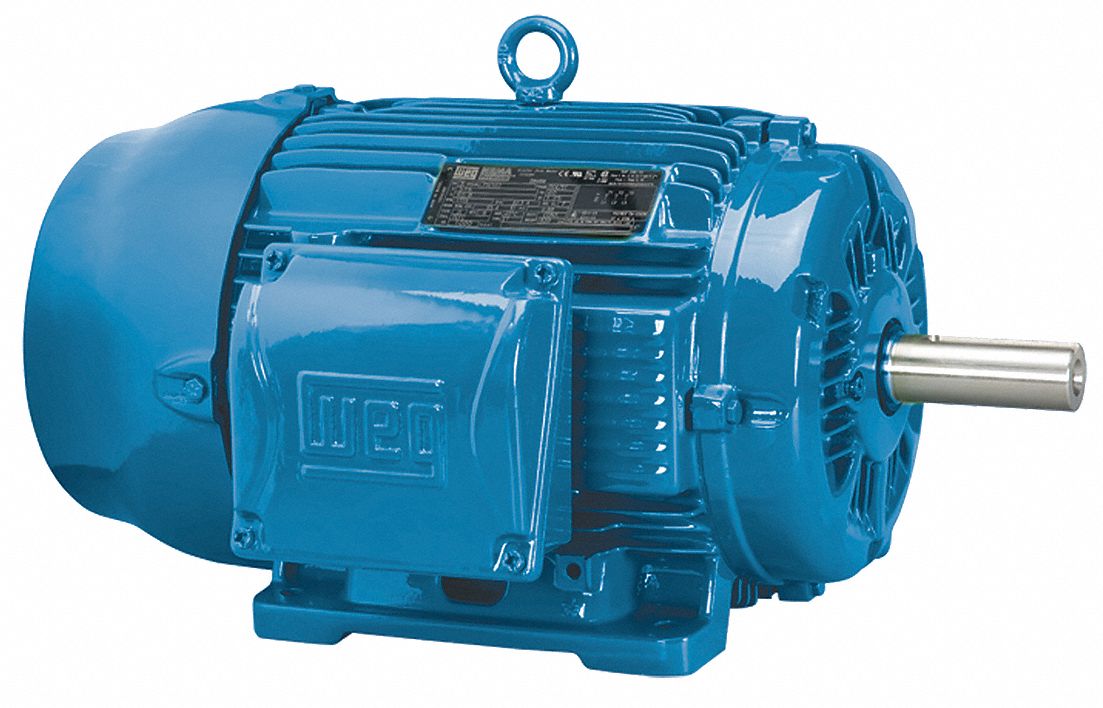

The WEG General Purpose Motor: Rigid Base Mount (MPN 02018ET3H256T-W22) is a 20 hp, TEFC, rigid base 3-phase AC motor. It operates at 1,760 RPM and 575V AC with a full load current of 19.3 A at 60 Hz.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 20 hp, 1,760 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,760 RPM |
| Manufacturer Part Number | 02018ET3H256T-W22 |
| Full Load Current @ 60 Hz | 19.3 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
