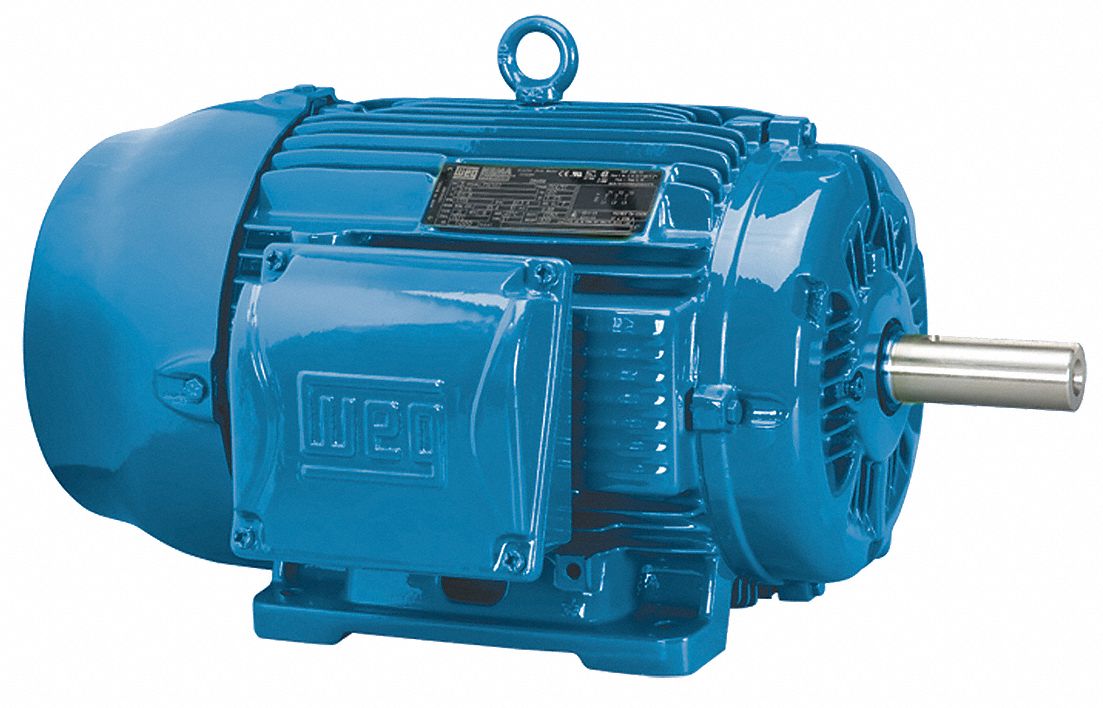

Weg 3G-OTH-80983 — Technical Specifications
The WEG General Purpose Motor: Rigid Base Mount is a 40 hp, rigid base 3-phase general purpose AC motor with a TEFC enclosure. It operates at 1,770 RPM and 575V AC at 60 Hz, with a full load current of 37.7 A (MPN 04018ET3H324T-W22).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 40 hp, 1,770 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,770 RPM |
| Manufacturer Part Number | 04018ET3H324T-W22 |
| Full Load Current @ 60 Hz | 37.7 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
