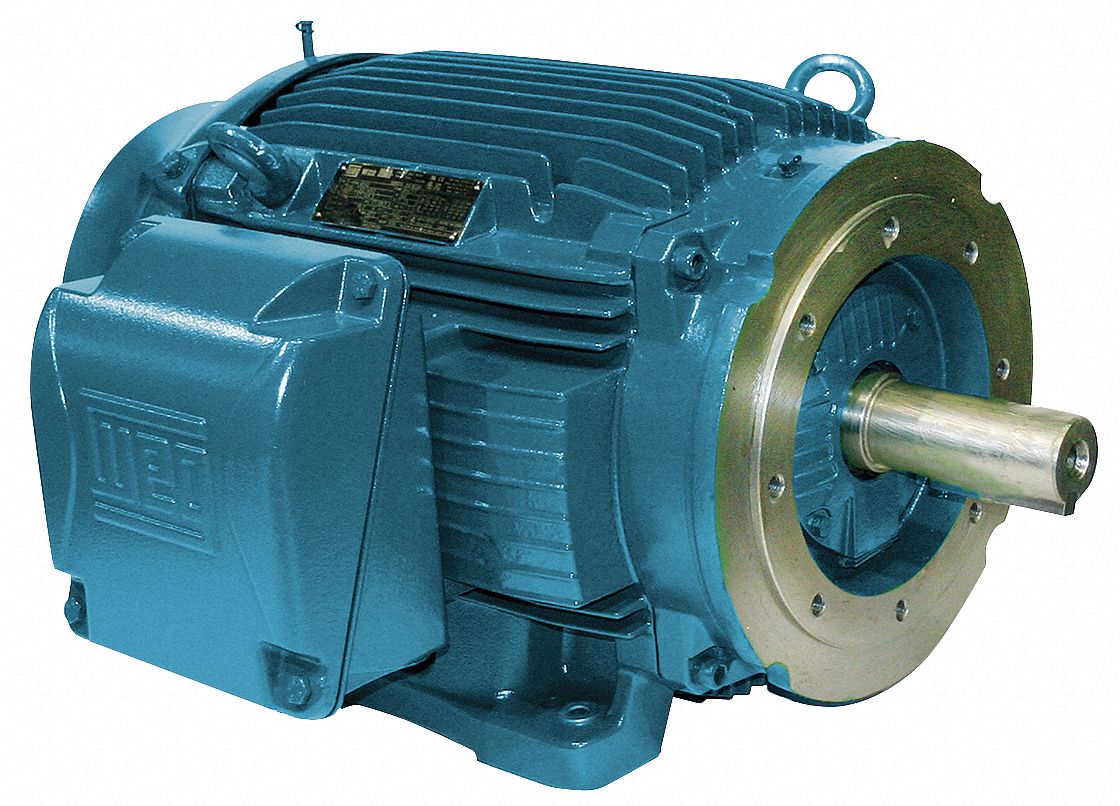

Weg 3G-OTH-54567 — Technical Specifications

Name: Weg 3G-OTH-54567 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 10 hp, 230/460V AC (MPN 01036ET3E215TC-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 23.2/11.6 A; Nameplate RPM @ 60 Hz: 3,510 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor (MPN 01036ET3E215TC-W22) is a C-Face with Rigid Base 3-Phase AC motor in a TEFC enclosure. It delivers 10 hp with a nameplate RPM of 3,510 at 60 Hz and operates at 230/460V AC with a full load current of 23.2/11.6 A.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 10 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,510 RPM
Manufacturer Part Number	01036ET3E215TC-W22
Full Load Current @ 60 Hz	23.2/11.6 A
Nameplate Voltage @ 60 Hz	230/460V AC
