Weg 3G-OTH-54740 — Technical Specifications

Name: Weg 3G-OTH-54740 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 30 hp, 230/460V AC (MPN 03036ET3E286TSC-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 67.6/33.8 A; Nameplate RPM @ 60 Hz: 3,535 RPM; Motor Enclosure: TEFC.
Brand: Weg

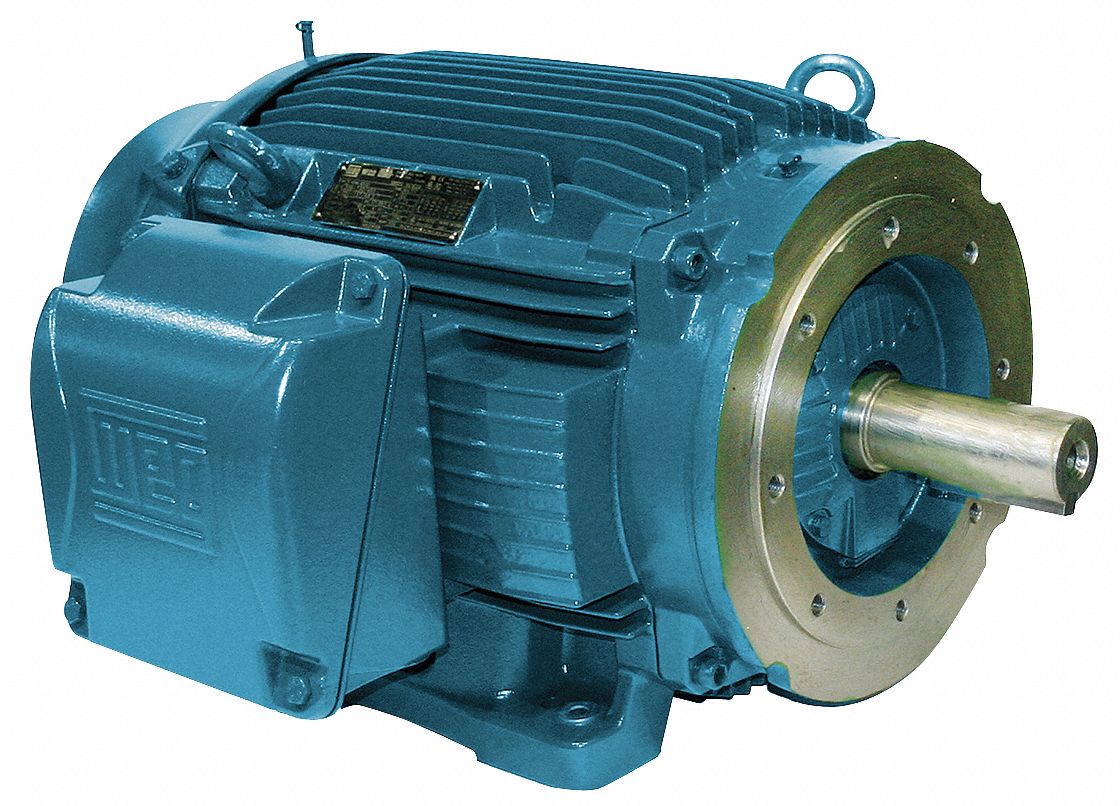

The WEG General Purpose Motor (SKU 6FDT3) is a C-Face with Rigid Base 3-Phase AC motor, featuring a TEFC enclosure. It is rated at 30 hp with a nameplate voltage of 230/460V AC at 60 Hz, a full load current of 67.6/33.8 A, and a nameplate RPM of 3,535 RPM (MPN 03036ET3E286TSC-W22).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 30 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,535 RPM
Manufacturer Part Number	03036ET3E286TSC-W22
Full Load Current @ 60 Hz	67.6/33.8 A
Nameplate Voltage @ 60 Hz	230/460V AC
