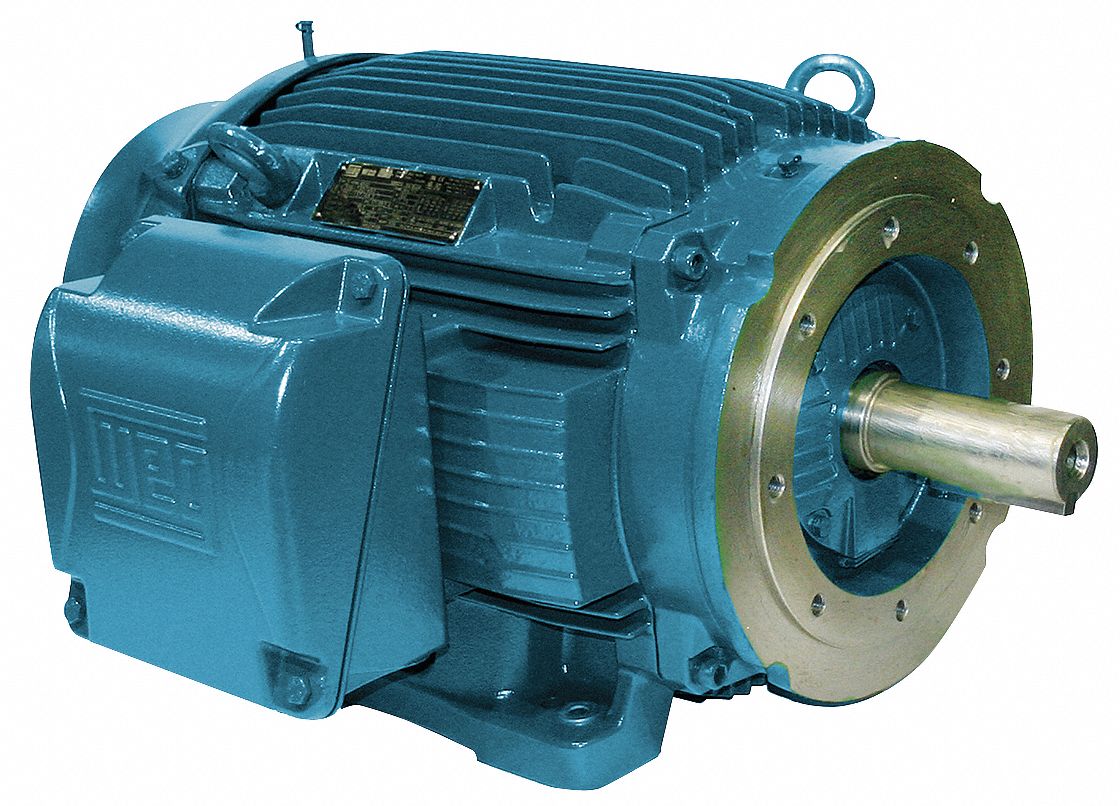

Weg 3G-OTH-56207 — Technical Specifications

Name: Weg 3G-OTH-56207 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 40 hp, 230/460V AC (MPN 04018ET3E324TC-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 94.2/47.1 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor: C-Face/Rigid Base Mount (MPN 04018ET3E324TC-W22) is a 40 hp, TEFC, 3-phase AC motor with a C-Face and rigid base mount. It operates at 1,725 RPM and 230/460V AC, drawing a full load current of 94.2/47.1 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 40 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	04018ET3E324TC-W22
Full Load Current @ 60 Hz	94.2/47.1 A
Nameplate Voltage @ 60 Hz	230/460V AC
