Weg 3G-OTH-54750 — Technical Specifications

Name: Weg 3G-OTH-54750 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 50 hp, 230/460V AC (MPN 05018ET3E326TC-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 118.0/59.2 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: TEFC.
Brand: Weg

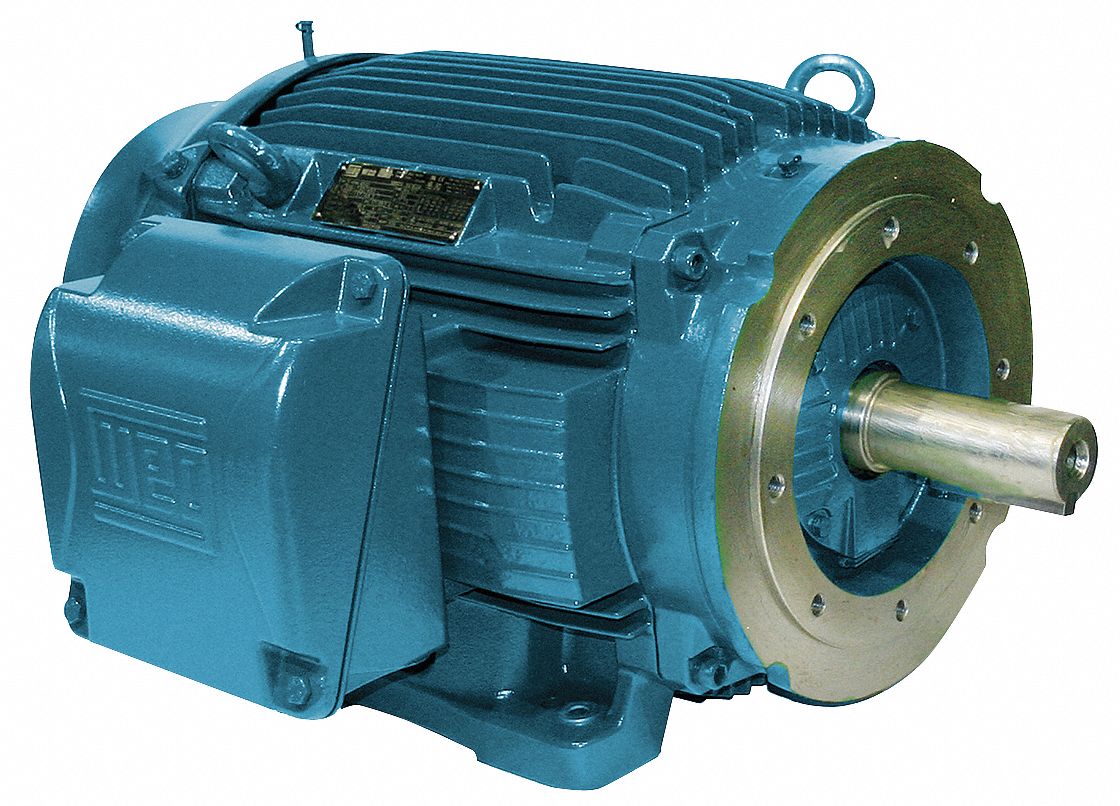

The WEG General Purpose Motor (MPN 05018ET3E326TC-W22) is a C-Face with Rigid Base 3-Phase AC motor featuring a TEFC enclosure. It delivers 50 hp at 1,725 RPM and operates on 230/460V AC with a full load current of 118.0/59.2 A.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 50 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	05018ET3E326TC-W22
Full Load Current @ 60 Hz	118.0/59.2 A
Nameplate Voltage @ 60 Hz	230/460V AC
