Weg 3G-OTH-70468 — Technical Specifications

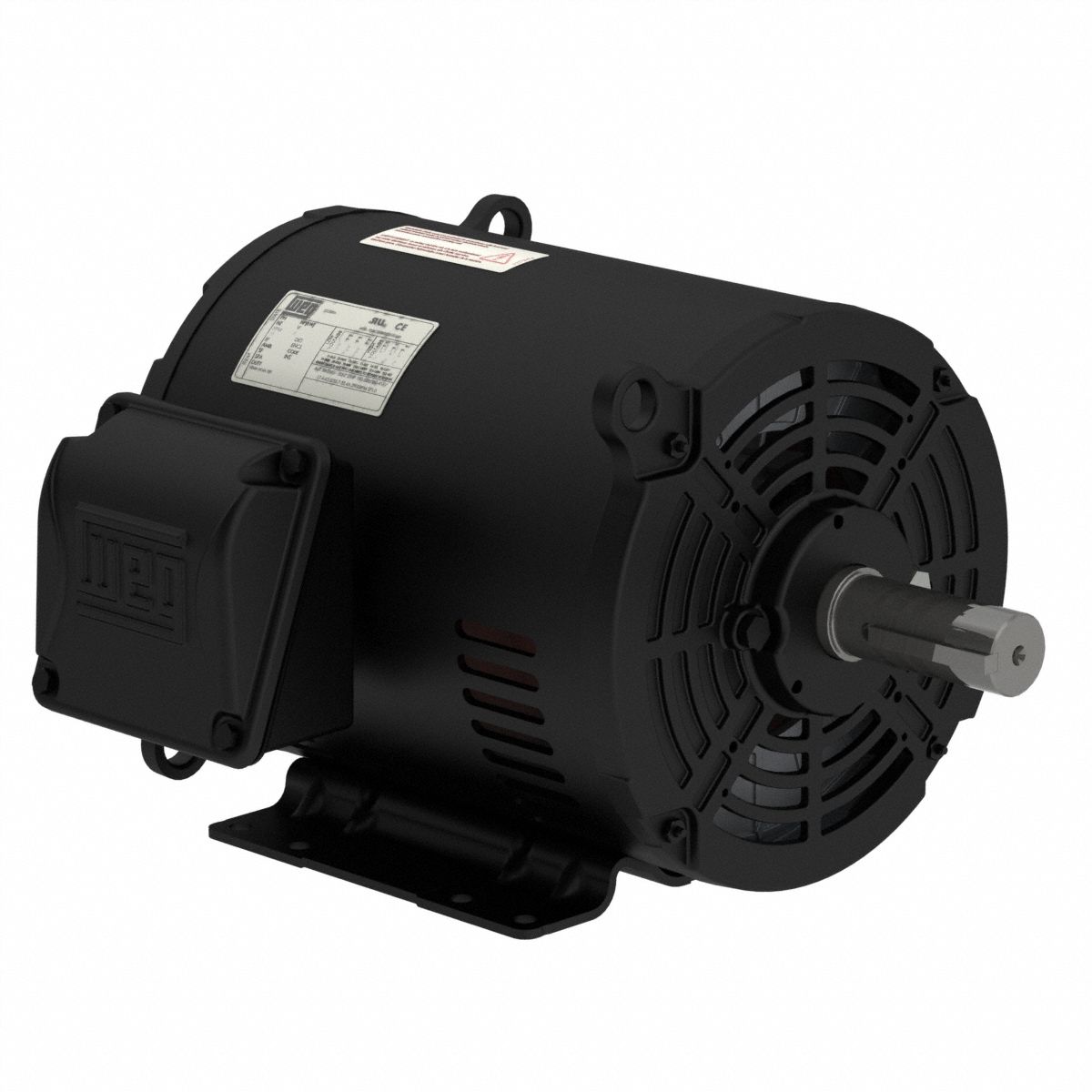

The WEG General Purpose Motor: Rigid Base Mount is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It delivers 15 hp at 1,775 RPM (60 Hz) and operates at 380/415V AC with a full load current of 18.6 A (60 Hz). This model, MPN 01518OT3E254T-SG, features a 254-6T frame size.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Open Drip Proof, 15 hp, 1,775 RPM |
| Brand | WEG |
| Frame Size | 254-6T |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,775 RPM |
| Manufacturer Part Number | 01518OT3E254T-SG |
| Full Load Current @ 60 Hz | 18.6 A |
| Nameplate Voltage @ 60 Hz | 380/415V AC |
