Weg 3G-OTH-61124 — Technical Specifications

Name: Weg 3G-OTH-61124 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Air-Over, 25 hp, 230/460V AC/380V AC (MPN 02536ET3E284TS-W22G). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 28.5 A; Nameplate RPM @ 60 Hz: 3,545 RPM; Motor Enclosure: TEAO.
Brand: Weg

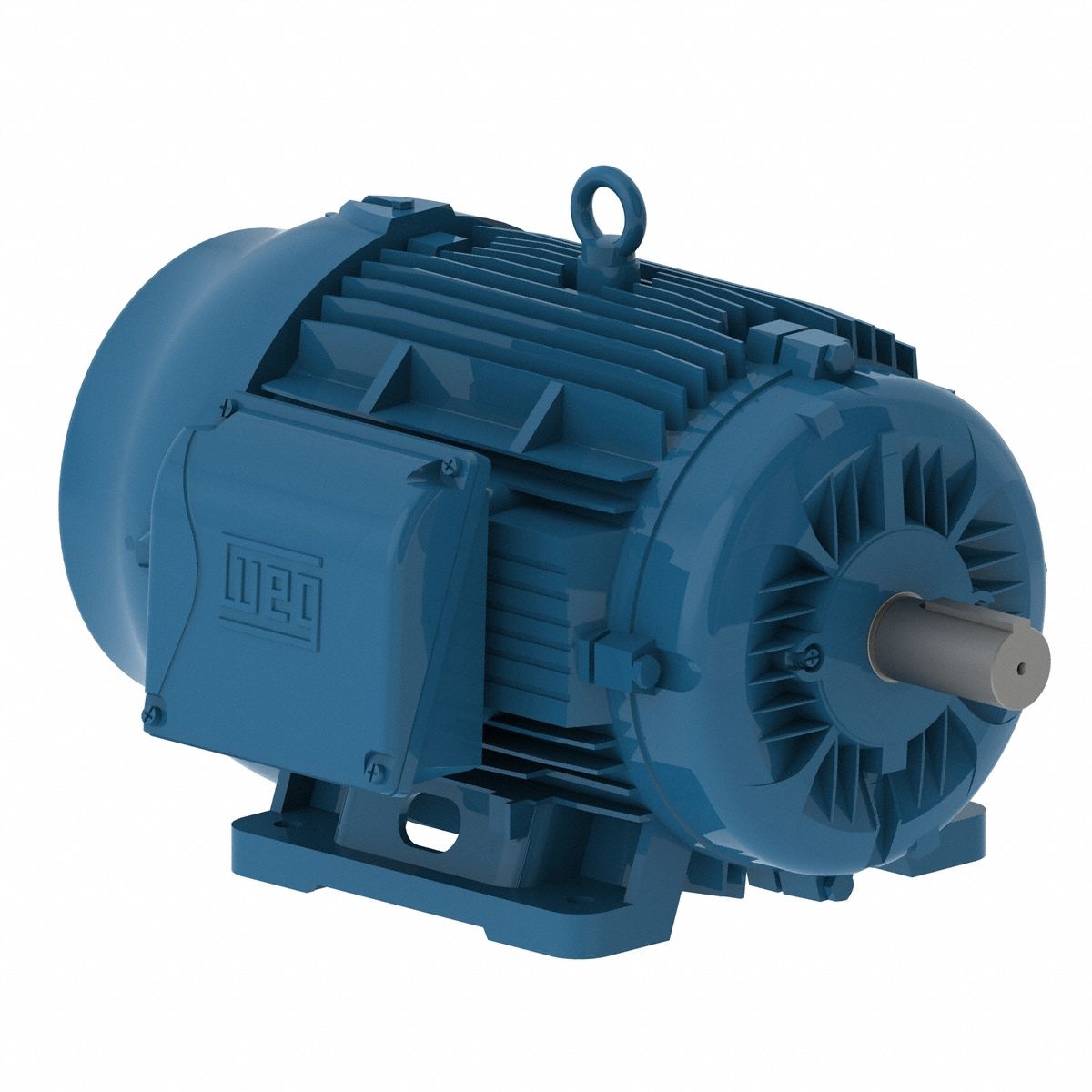

The WEG General Purpose Motor: Rigid Base Mount (MPN 02536ET3E284TS-W22G) is a rigid base 3-phase general purpose AC motor with a Totally Enclosed Air-Over (TEAO) enclosure. It delivers 25 hp at 3,545 RPM (60 Hz) and operates on 230/460V AC with a full load current of 28.5 A (60 Hz).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Air-Over, 25 hp
Brand	WEG
AC/380V AC	230/460V
Motor Enclosure	TEAO
Nameplate RPM @ 60 Hz	3,545 RPM
Manufacturer Part Number	02536ET3E284TS-W22G
Full Load Current @ 60 Hz	28.5 A
Nameplate Voltage @ 60 Hz	230/460V AC
