Weg 3G-OTH-82105 — Technical Specifications

Name: Weg 3G-OTH-82105 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Air-Over, 15 hp, 1,780 RPM (MPN 01518ET3E254T-SG). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 380/415V AC; Full Load Current @ 60 Hz: 18.2 A; Nameplate RPM @ 60 Hz: 1,780 RPM; Motor Enclosure: TEAO.
Brand: Weg

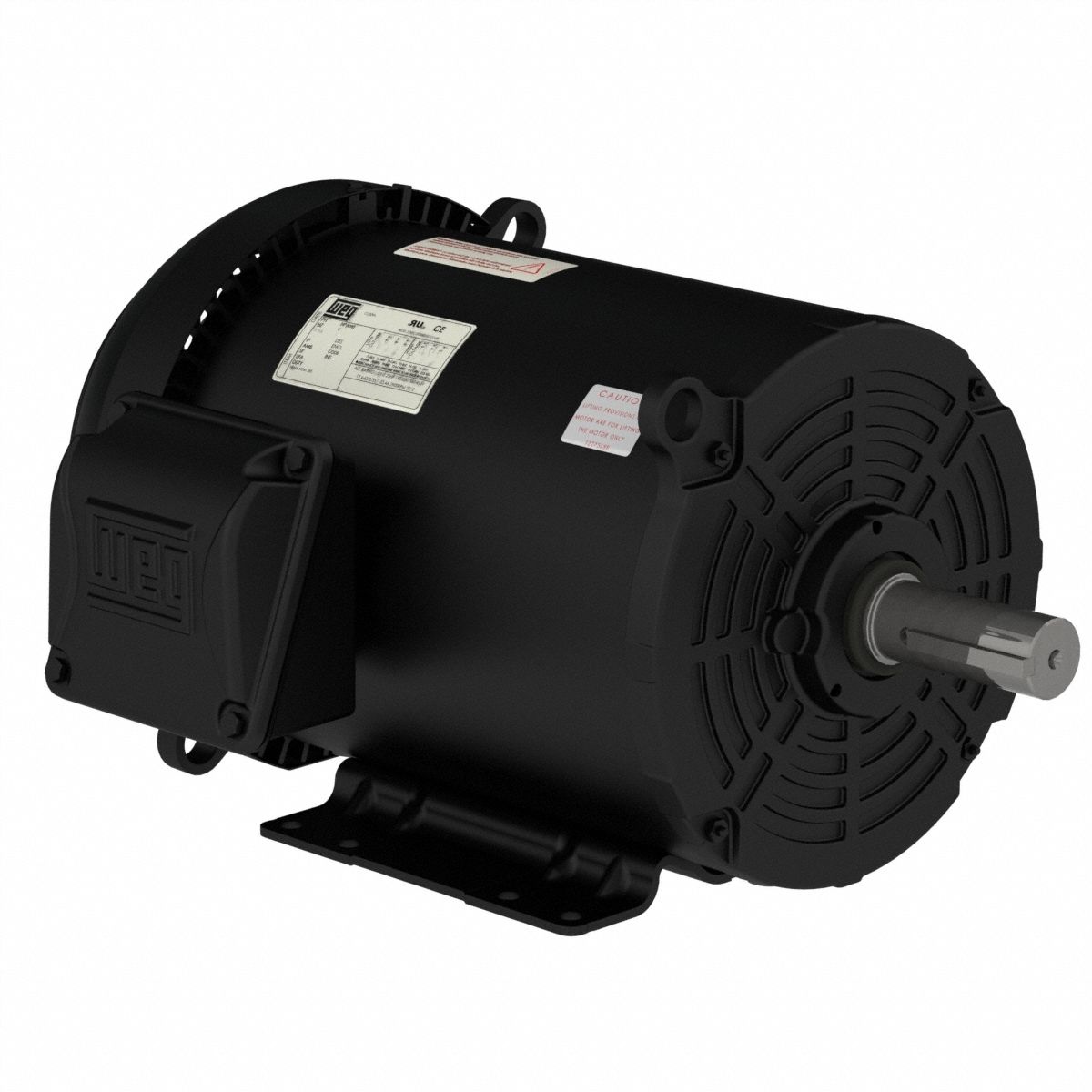

The WEG General Purpose Motor: Rigid Base Mount (SKU 827DH6, MPN 01518ET3E254T-SG) is a rigid base 3-phase general purpose AC motor with a Totally Enclosed Air-Over (TEAO) enclosure. It delivers 15 hp at 1,780 RPM on a 60 Hz supply, with a nameplate voltage of 380/415V AC and a full load current of 18.2 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Air-Over, 15 hp, 1,780 RPM
Brand	WEG
Motor Enclosure	TEAO
Nameplate RPM @ 60 Hz	1,780 RPM
Manufacturer Part Number	01518ET3E254T-SG
Full Load Current @ 60 Hz	18.2 A
Nameplate Voltage @ 60 Hz	380/415V AC
