Weg 3G-OTH-78644 — Technical Specifications

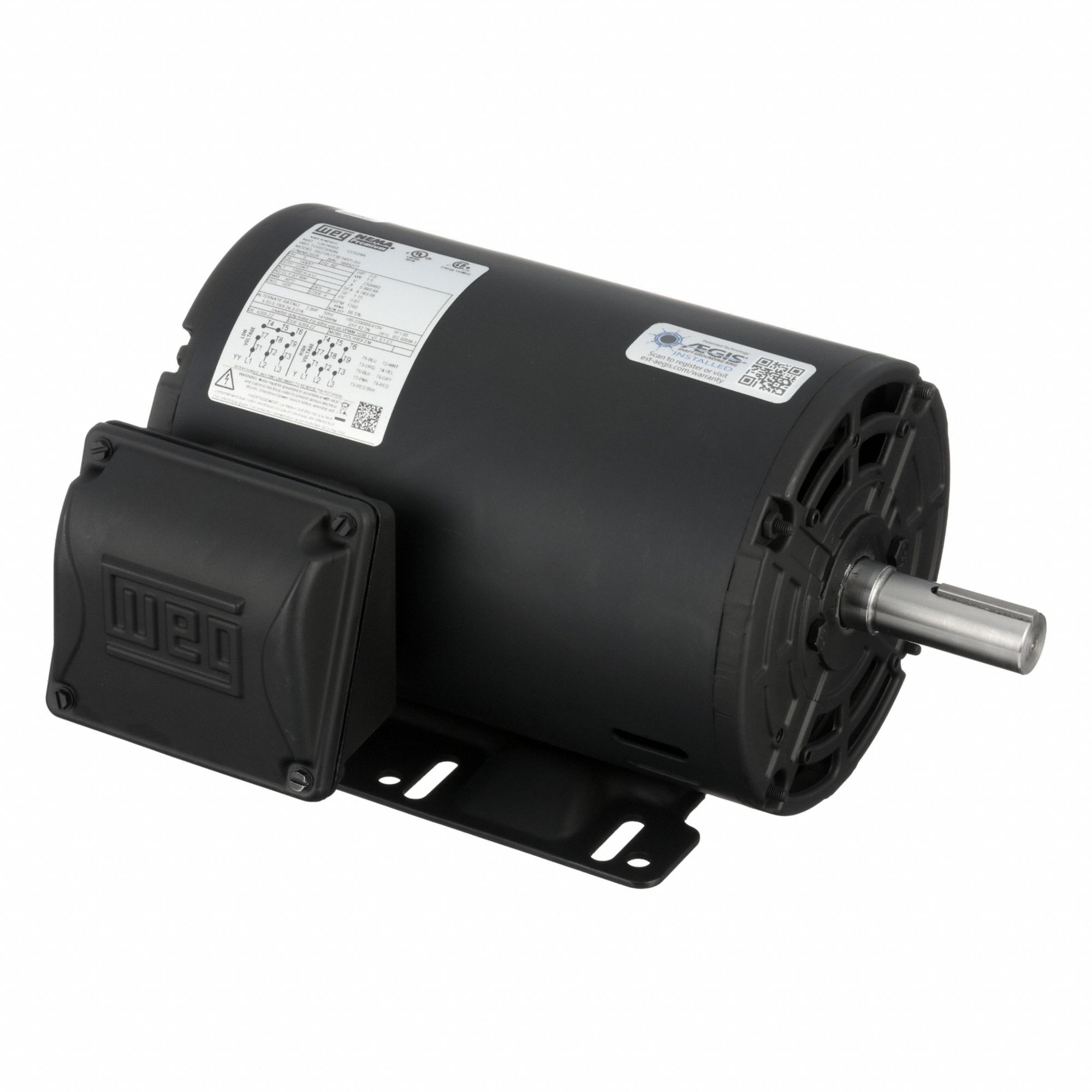

The WEG General Purpose Motor: Rigid Base Mount (SKU 827DJ1) is a Rigid Base 3-Phase General Purpose AC Motor with an ODP enclosure. It delivers 2 hp at 1,740 RPM (60 Hz) and operates at 220V AC with a full load current of 2.7 A. This model features a 143-5T frame size (MPN 00218OT3E145T-SG).
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Open Drip Proof, 2 hp, 1,740 RPM |
| Brand | WEG |
| Frame Size | 143-5T |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,740 RPM |
| Manufacturer Part Number | 00218OT3E145T-SG |
| Full Load Current @ 60 Hz | 2.7 A |
| Nameplate Voltage @ 60 Hz | 220V AC |
