Winland Electronics 3G-OTH-450227 — Technical Specifications

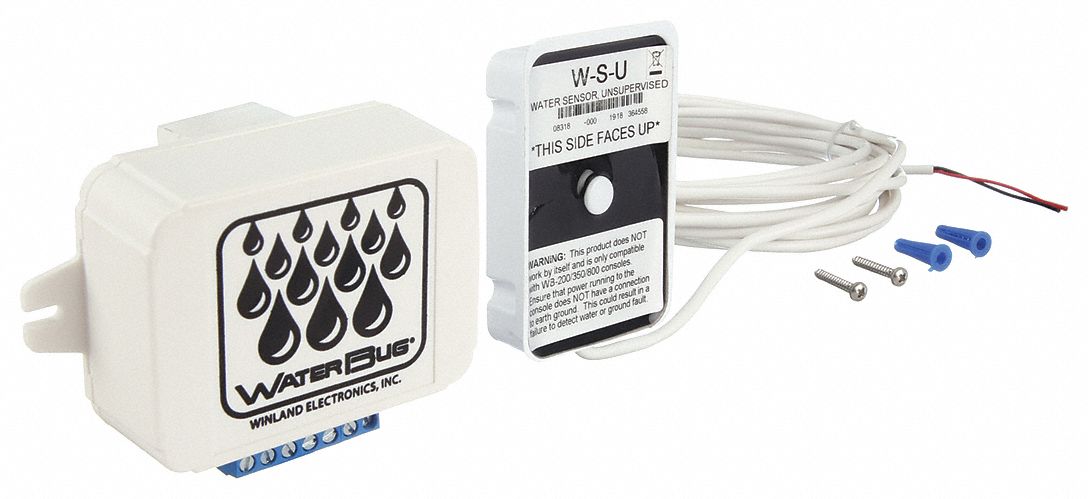

The WINLAND ELECTRONICS Water Detection System (WaterBug WB-200) is an electric-corded water detector and alarm with a hardwired power source operating at 12 to 24V AC/DC. It features Form C Relays for connection and is designed for flange mounting. The alarm unit measures 1.2 in L x 4.1 in W x 2.4 in H, while the sensor unit is 2 in W x 0.88 in D x 3 in H, with a maximum operating temperature of 140°F.
Technical Specifications
| Parameter | Value |
|---|---|
| AC/DC | 12 to 24V |
| Brand | WINLAND ELECTRONICS |
| Sub-Brand | WaterBug |
| Max. Op Temp | 140°F |
| Power Source | Hardwired |
| Detector Type | Water Detector and Alarm |
| Connection Type | Form C Relays |
| Display Sell UOM | EA |
| Mounting Location | Flanges |
| Operating Voltage | 12 to 24V AC/DC |
| Power Source Type | Electric-Corded |
| Includes Batteries | No |
| Alarm Unit Dimensions | 1.2 in L x 4.1 in W x 2.4 in H |
| Sensor Unit Dimensions | 2 in W x 0.88 in D x 3 in H |
| Manufacturer Part Number | WB-200 |
