Zoeller 3G-OTH-84454 — Technical Specifications

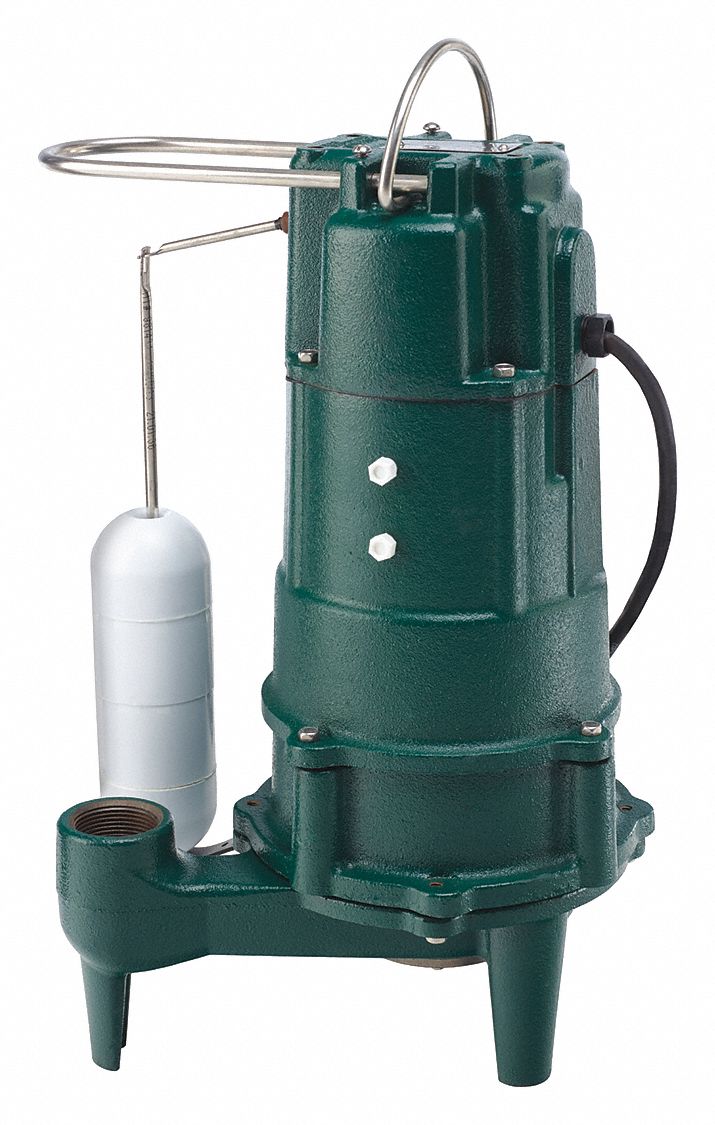

The ZOELLER Grinder Pump: Vertical (MPN 807-0001) is a general purpose sewage grinder pump with a 1 hp single-phase motor, rated at 115V AC. It delivers 42 gpm at 10 feet of head and features a 1 1/4 in FNPT vertical discharge. The pump includes an integral vertical float switch and a cast iron volute; it is not rated for hazardous locations.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 115V |
| FNPT | 1 1/4 in |
| Type | Single Phase, 1 hp, 42 gpm @ 10' of Head |
| Brand | ZOELLER |
| Switch | Integral Vertical Float |
| Rated Voltage | 115V AC |
| Volute Material | Cast Iron |
| Discharge Orientation | Vertical |
| Hazardous Location Class | Not Rated |
| Manufacturer Part Number | 807-0001 |
