BUSSMANN IEC Type D fuses are available in two physical sizes: DII and DIII. The DII size is designed for lower current ratings, typically from 2 A up to 25 A, with a smaller physical envelope. The DIII size accommodates higher current ratings, from 35 A up to 63 A, with a larger diameter and length. Both sizes share the same 500 V AC voltage rating and are built to IEC 60269-2 standards. The physical size difference ensures proper fitment in corresponding fuse holders and prevents installation of an incorrectly rated fuse. Always verify the fuse holder's size class before selecting a DII or DIII fuse.

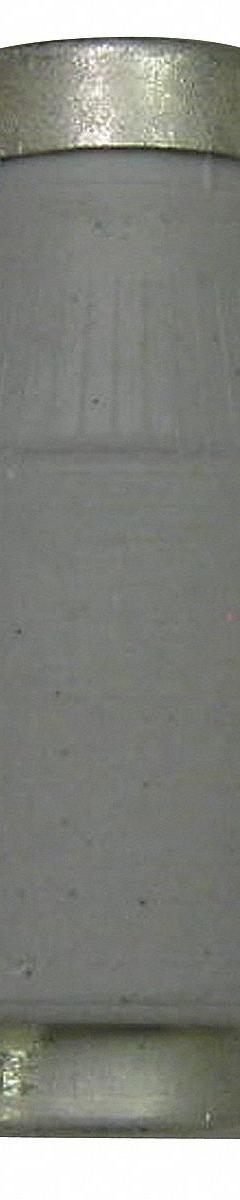

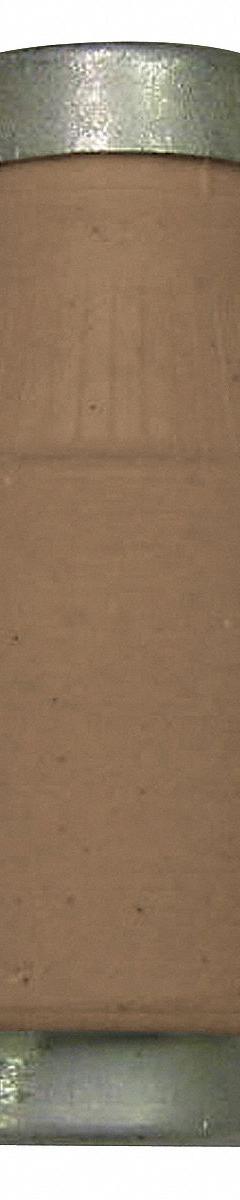

Time-delay BUSSMANN IEC Type D fuses (e.g., MPN 63D33, 16D27) are designed to tolerate temporary overcurrents, such as motor starting currents or transformer inrush, without opening. They have a slower response curve, allowing short-duration surges to pass. Fast-acting fuses (e.g., MPN 20D27Q) respond more quickly to overcurrent conditions, providing faster protection for sensitive components. The choice depends on the load characteristics: time-delay for inductive or capacitive loads, fast-acting for resistive or electronic loads. Both types are rated for 500 V AC and are available in DII and DIII sizes.

BUSSMANN IEC Type D fuses are manufactured to comply with IEC 60269-1 (general requirements) and IEC 60269-2 (requirements for fuses for industrial applications). These standards define the dimensions, electrical ratings, breaking capacity, and performance characteristics for Type D fuses. Compliance ensures that the fuses are interchangeable with other IEC Type D fuses from different manufacturers, provided the size class (DII or DIII) and current rating match. The fuses are also designed to meet the relevant safety and performance criteria for overcurrent protection in industrial environments.

Yes, BUSSMANN IEC Type D time-delay fuses are suitable for motor protection applications. The time-delay characteristic allows the fuse to withstand the high inrush current during motor startup, which can be several times the full-load current for a short duration. For example, a 63 A time-delay fuse (MPN 63D33) can protect a motor with a full-load current around 50-55 A, depending on the starting current profile. However, for precise motor protection, coordination with a motor starter or overload relay is recommended. Fast-acting fuses are generally not recommended for motor circuits due to the risk of nuisance tripping during startup.

All BUSSMANN IEC Type D fuses listed are rated for 500 V AC. They are designed for alternating current (AC) applications and may not have the same interrupting capacity or performance in direct current (DC) circuits. For DC applications, consult the manufacturer's data sheet to verify the DC voltage rating and breaking capacity. Using an AC-rated fuse in a DC circuit can result in inadequate arc extinction and potential equipment damage. For DC protection, consider BUSSMANN DC-rated fuses or other appropriate overcurrent devices.

To select the correct BUSSMANN IEC Type D fuse, determine the following: the continuous load current (choose a fuse rated at least 125% of the load current for continuous loads), the voltage rating (must be equal to or greater than the system voltage, up to 500 V AC), the physical size class (DII for up to 25 A, DIII for 35 A to 63 A), and the operating characteristic (time-delay for inductive loads, fast-acting for resistive or sensitive loads). Also consider the available fault current to ensure the fuse's breaking capacity is sufficient. 3G Electric provides specification sheets for each SKU to assist with selection.
