DRANETZ logo

DRANETZ

DRANETZ is a manufacturer of power quality analyzers and current probes, with a history dating back to the 1960s. The company is known for its precision measurement instruments used in electrical power systems analysis. 3G Electric supplies a range of DRANETZ products, including portable power quality analyzers and flexible current probes, designed for field and industrial applications. The power quality analyzers, such as the HDPQ-P-GAFLEX3KPKG and HDPQ-P-VAFLEX3KPKG, are rated for CAT III 1000V/CAT IV 600V environments, with an IP65 enclosure for dust and water ingress protection. These units sample at 512 samples per cycle, enabling detailed harmonic analysis and transient capture. The analyzers are available in kits that include flexible current probes, allowing for measurement on conductors up to 15 inches in diameter. The flexible current probes, like the DRANFLEX3000XLB series, use a proprietary connector and are rated CAT III 1000V or CAT IV 600V, with jaw openings ranging from 7.5 to 15 inches. These probes are designed for AC current measurement and are compatible with DRANETZ analyzers. The TR-2510B clamp-on current probe offers a 0.59-inch jaw opening and CAT III 600V rating. DRANETZ products are used by electrical engineers and maintenance professionals for troubleshooting power quality issues, verifying compliance with standards such as IEEE 519, and monitoring electrical distribution systems. 3G Electric provides these products with datasheets and logistics support for global shipment, ensuring that buyers receive the correct specifications for their application.

Genuine
OEM Parts
Expert
Tech Support
1 Day
Quote Response
Worldwide
Origin
Worldwide Shipping
Air & sea freight
Datasheets on Request
Technical specs & drawings
1-Day Quote Response
Singapore-based team
Browse:
Show
Page 1 of 1

About DRANETZ

DRANETZ is a manufacturer of power quality analyzers and current probes, with a history dating back to the 1960s. The company is known for its precision measurement instruments used in electrical power systems analysis. 3G Electric supplies a range of DRANETZ products, including portable power quality analyzers and flexible current probes, designed for field and industrial applications. The power quality analyzers, such as the HDPQ-P-GAFLEX3KPKG and HDPQ-P-VAFLEX3KPKG, are rated for CAT III 1000V/CAT IV 600V environments, with an IP65 enclosure for dust and water ingress protection. These units sample at 512 samples per cycle, enabling detailed harmonic analysis and transient capture. The analyzers are available in kits that include flexible current probes, allowing for measurement on conductors up to 15 inches in diameter. The flexible current probes, like the DRANFLEX3000XLB series, use a proprietary connector and are rated CAT III 1000V or CAT IV 600V, with jaw openings ranging from 7.5 to 15 inches. These probes are designed for AC current measurement and are compatible with DRANETZ analyzers. The TR-2510B clamp-on current probe offers a 0.59-inch jaw opening and CAT III 600V rating. DRANETZ products are used by electrical engineers and maintenance professionals for troubleshooting power quality issues, verifying compliance with standards such as IEEE 519, and monitoring electrical distribution systems. 3G Electric provides these products with datasheets and logistics support for global shipment, ensuring that buyers receive the correct specifications for their application.

Common Applications

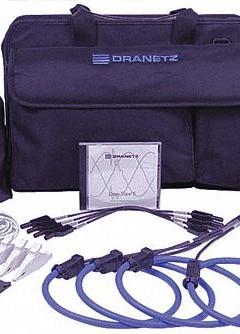

  • Industrial power quality auditing — DRANETZ HDPQ-P-VAFLEX3KPKG analyzer for harmonic and transient analysis on 480V distribution panels.

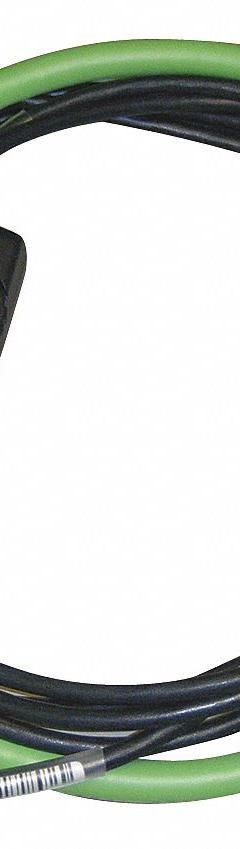

  • Utility substation monitoring — DRANETZ DRANFLEX3000XLB48 flexible probe for measuring high-current feeders up to 3000A.

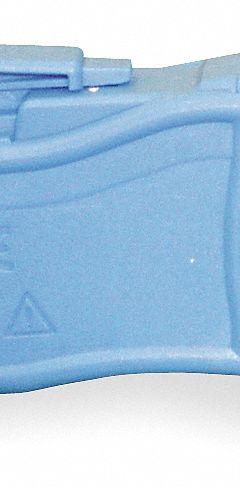

  • Data center electrical troubleshooting — DRANETZ TR-2510B clamp-on probe for verifying UPS output and branch circuit loads.

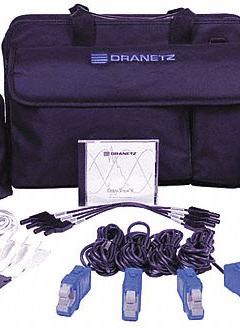

  • Manufacturing plant compliance testing — DRANETZ HDPQ-P-VA10PKG kit for IEEE 519 harmonic limit verification on motor drives.
  • Renewable energy system commissioning — DRANETZ DRANFLEX6000XLB48 probe for measuring inverter output currents up to 6000A.

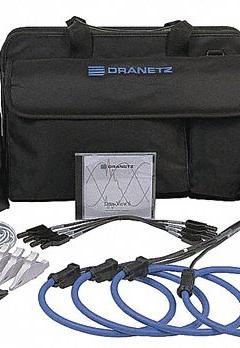

  • Building electrical maintenance — DRANETZ HDPQ-P-GAFLEX3KPKG for periodic power quality surveys on main switchboards.

Frequently asked questions

Common questions about DRANETZ from 3G Electric.

What safety ratings do DRANETZ power quality analyzers have?

DRANETZ power quality analyzers, such as the HDPQ-P-GAFLEX3KPKG, are rated CAT III 1000V and CAT IV 600V. CAT III applies to distribution-level equipment, while CAT IV covers utility-level installations. The IP65 rating means the enclosure is dust-tight and protected against water jets, suitable for outdoor or industrial environments.

What is the sampling rate of DRANETZ power quality analyzers?

DRANETZ power quality analyzers sample at 512 samples per cycle. This high sampling rate allows for accurate harmonic analysis up to the 50th harmonic or higher, depending on the fundamental frequency. It also enables capture of fast transients and waveform details for power quality assessments.

Are DRANETZ flexible current probes compatible with other brands?

DRANETZ flexible current probes, such as the DRANFLEX3000XLB series, use a proprietary connector. They are designed specifically for DRANETZ power quality analyzers and are not directly compatible with other brands without an adapter. Check the connector type and pinout before attempting to use with non-DRANETZ equipment.

What is the maximum jaw opening for DRANETZ flexible current probes?

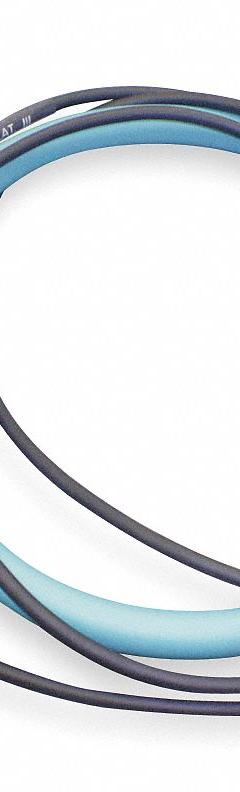

DRANETZ flexible current probes are available with jaw openings of 7.5 inches (DRANFLEX3000XLB24), 11.5 inches (DRANFLEX3000XLB36), and 15 inches (DRANFLEX3000XLB48). The 15-inch version can accommodate large busbars or multiple conductors. All are rated for AC current measurement.

Can DRANETZ power quality analyzers measure four phases simultaneously?

Yes, DRANETZ power quality analyzer kits like the HDPQ-P-GAFLEX3KPKG are designed for four-phase measurement. This allows simultaneous monitoring of three phases and neutral, or other configurations. The kit includes flexible current probes and voltage leads for comprehensive analysis.

Does 3G Electric supply DRANETZ products?

Yes — 3G Electric (S) Pte. Ltd. supplies DRANETZ products. We stock the DRANETZ catalog and supply genuine factory-original products with full manufacturer warranty and technical support.
