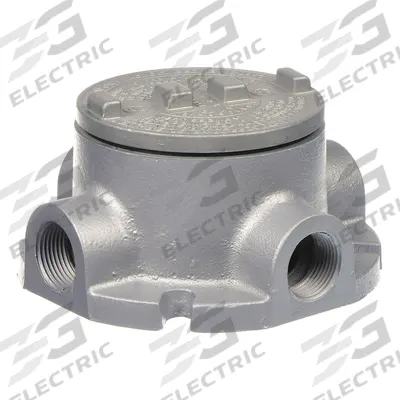

APPLETON ELECTRIC Conduit Outlet Body: Aluminum, GRF, 3/4 in Trade Size, X Body - X, XAT and XTF Round Body - Cross Type
APPLETON ELECTRICX, XAT and XTF Round Body - Cross Type

APPLETON ELECTRIC Conduit Outlet Body: Aluminum, GRF, 3/4 in Trade Size, X Body

The APPLETON ELECTRIC Conduit Outlet Body is an aluminum X, XAT and XTF Round Body - Cross Type with a 3/4 in trade size and 18 cu in body capacity. It features a powder-coated finish, threaded female hubs, a flat…

SKU 3G-OTH-05210

Brand
APPLETON ELECTRIC
Item
Conduit Outlet Body: Aluminum, GRF, 3/4 in Trade Size, X Body
Category
X, XAT and XTF Round Body - Cross Type
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Manufacturer Part Number
GRFX75-A
Series
For Standard Body
Type
GRF, X Body, 18 cu in Body Capacity
Material
Aluminum
Finish
Powder Coated
Back Type
Flat
Body Type
Conduit Outlet Body
Hub Style
Threaded
Standards
CSA C22.2 No. 30
Body Style
X
Trade Size
3/4 in
For Use With
Threaded IMC
Thread Gender
Female
Cover Included
Yes
Connection Type
Threaded
Special Features
Flanged
Hazardous Location
Yes
Compatible Conduit Trade Size
3/4 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPLETON ELECTRIC Conduit Outlet Body is an aluminum X, XAT and XTF Round Body - Cross Type with a 3/4 in trade size and 18 cu in body capacity. It features a powder-coated finish, threaded female hubs, a flat back, and a flanged design for use with threaded IMC. This CSA C22.2 No. 30 certified unit includes a cover and is suitable for hazardous locations.

Frequently Asked Questions

What is the APPLETON ELECTRIC GRFX75-A conduit outlet body used for?

The APPLETON ELECTRIC GRFX75-A is a conduit outlet body used to provide a pull point or junction in electrical conduit systems. It is suitable for hazardous locations and works with threaded IMC, making it ideal for industrial plants, refineries, and other demanding environments requiring a durable, certified enclosure.

What are the specifications of the APPLETON ELECTRIC GRFX75-A conduit outlet body?

The GRFX75-A is an aluminum X-body conduit outlet body with a 3/4 in trade size and 18 cu in capacity. It features threaded female hubs, a flat back, powder-coated finish, and a flanged design. It is CSA C22.2 No. 30 certified for hazardous locations and includes a cover.

Where to buy the APPLETON ELECTRIC GRFX75-A conduit outlet body worldwide?

3G Electric supplies the APPLETON ELECTRIC GRFX75-A conduit outlet body worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time on this item.

How to install the APPLETON ELECTRIC GRFX75-A conduit outlet body?

To install the GRFX75-A, thread the conduit into the female hubs and secure the cover with the provided screws. Ensure the flat back mounts flush against a support surface. Follow standard electrical codes for hazardous locations and use appropriate sealing fittings where required.
