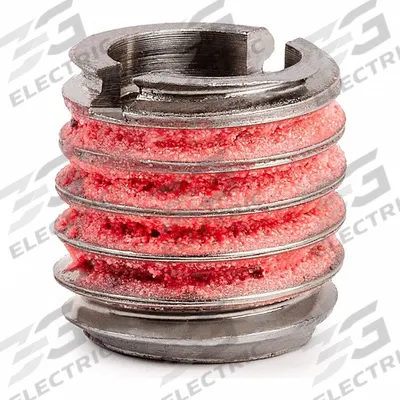

APPROVED VENDOR Self Locking Thread Insert: Std Wall, M6-1.00 Int Thrd Sz - Heavy Wall Self-Locking Inserts
APPROVED VENDORHeavy Wall Self-Locking Inserts

APPROVED VENDOR Self Locking Thread Insert: Std Wall, M6-1.00 Int Thrd Sz

The APPROVED VENDOR Self Locking Thread Insert is a heavy wall, standard wall insert with M6-1.00 internal thread size and M10-1.50 external thread size (MPN 416-6). It features coarse metric threads, a compatible…

SKU 3G-OTH-534168

Brand
APPROVED VENDOR
Item
Self Locking Thread Insert: Std Wall, M6-1.00 Int Thrd Sz
Category
Heavy Wall Self-Locking Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPROVED VENDOR
Manufacturer Part Number
416-6
Type
M6-1.00 Int Thrd Sz, M10-1.50 Ext Thrd Sz
Wall Type
Standard Wall
Thread Type
Coarse
Drill Bit Size
8.6mm
Compatible Tap Size
M10-1.50
External Thread Fit
6G
Internal Thread Fit
6H
System of Measurement
Metric
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPROVED VENDOR Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPROVED VENDOR Self Locking Thread Insert is a heavy wall, standard wall insert with M6-1.00 internal thread size and M10-1.50 external thread size (MPN 416-6). It features coarse metric threads, a compatible tap size of M10-1.50, internal thread fit 6H, external thread fit 6G, and requires an 8.6mm drill bit.

Frequently Asked Questions

What is an APPROVED VENDOR Self Locking Thread Insert used for?

This heavy wall insert repairs or reinforces tapped holes in metal assemblies. It provides a durable M6-1.00 internal thread with a 6H fit, ideal for industrial machinery, automotive, and equipment maintenance where vibration resistance is required.

What are the specifications of the APPROVED VENDOR 416-6 thread insert?

The insert has M6-1.00 internal thread size, M10-1.50 external thread size, standard wall, coarse metric threads, compatible tap size M10-1.50, internal thread fit 6H, external thread fit 6G, and requires an 8.6mm drill bit. It is manufactured by APPROVED VENDOR.

Where to buy APPROVED VENDOR Self Locking Thread Insert 416-6 worldwide?

3G Electric supplies the APPROVED VENDOR 416-6 self locking thread insert to customers worldwide. We handle full logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this metric standard wall insert.

How to install an APPROVED VENDOR self locking thread insert?

Drill a hole using an 8.6mm drill bit, tap it with an M10-1.50 tap, then install the insert using a compatible installation tool. The self-locking feature engages upon insertion. Follow standard thread insert installation practices for best results.
