Approved Vendor 3G-OTH-534168 — Technical Specifications

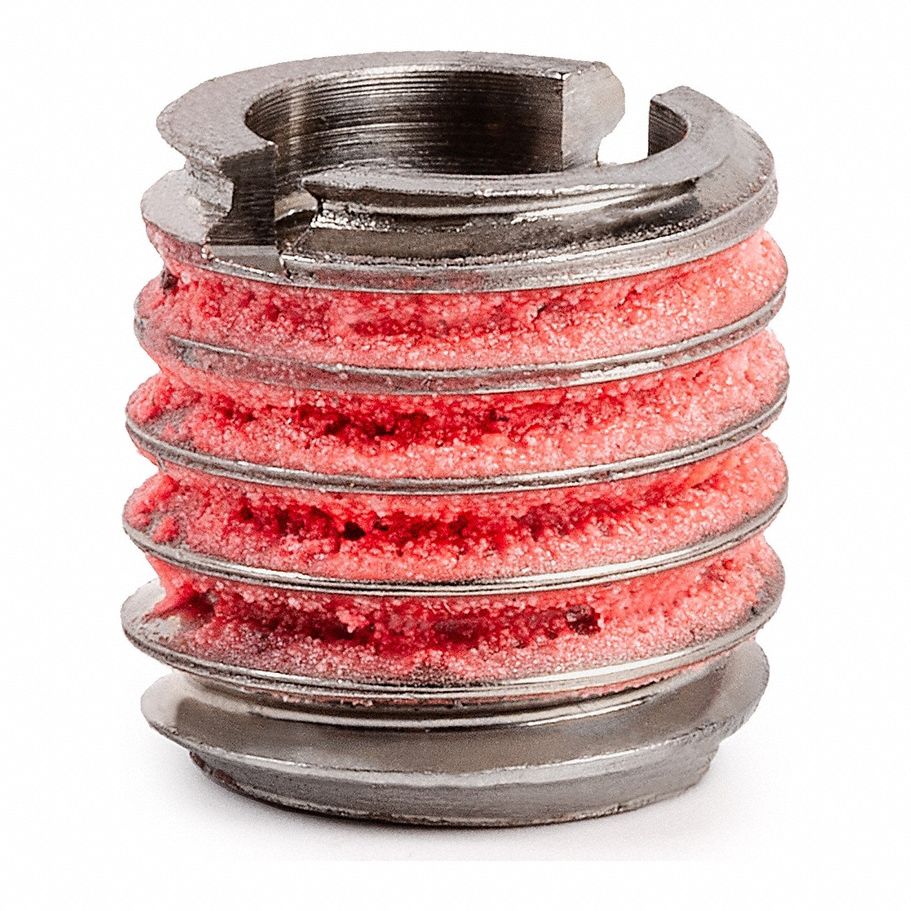

The APPROVED VENDOR Self Locking Thread Insert is a heavy wall, standard wall insert with M6-1.00 internal thread size and M10-1.50 external thread size (MPN 416-6). It features coarse metric threads, a compatible tap size of M10-1.50, internal thread fit 6H, external thread fit 6G, and requires an 8.6mm drill bit.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M6-1.00 Int Thrd Sz, M10-1.50 Ext Thrd Sz |
| Wall Type | Standard Wall |
| Thread Type | Coarse |
| Drill Bit Size | 8.6mm |
| Compatible Tap Size | M10-1.50 |
| External Thread Fit | 6G |
| Internal Thread Fit | 6H |
| System Of Measurement | Metric |
| Manufacturer Part Number | 416-6 |
