ASHCROFT Pressure Transmitter: 0 psi to 3,000 psi, 4 to 20mA DC, Cable & Wire Leads - Pressure Transmitters with Cable & Wire Leads
ASHCROFTPressure Transmitters with Cable & Wire Leads

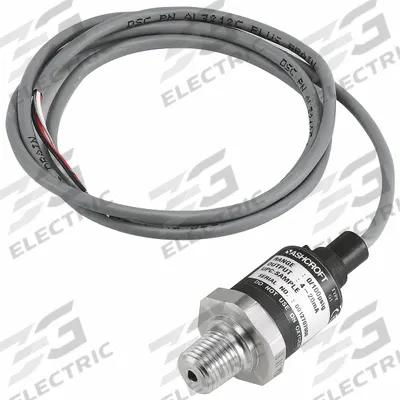

ASHCROFT Pressure Transmitter: 0 psi to 3,000 psi, 4 to 20mA DC, Cable & Wire Leads

The ASHCROFT G1 Series Pressure Transmitter (SKU 5DEK8) is a 0 psi to 3,000 psi pressure transmitter with cable and wire leads, featuring a 4 to 20mA DC output and ±0.5% accuracy. It has a nylon housing with IP67 and…

SKU 3G-OTH-176390

Brand
ASHCROFT
Item
Pressure Transmitter: 0 psi to 3,000 psi, 4 to 20mA DC, Cable & Wire Leads
Category
Pressure Transmitters with Cable & Wire Leads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
G17M0242F23000#
Series
G1
Type
Cable & Wire Leads
DC
4 to 20mA
Output
4 to 20mA DC
Accuracy
±0.5%
Male NPT
1/4 in
IP Rating
IP67
NEMA Rating
4X
Overpressure
2x Range
Burst Pressure
5x Range
Housing Material
Nylon
Process Connection Type
NPT
Process Connection Gender
Male
Calibration Certificate Included
No NIST-Traceable Calibration Certificate Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT G1 Series Pressure Transmitter (SKU 5DEK8) is a 0 psi to 3,000 psi pressure transmitter with cable and wire leads, featuring a 4 to 20mA DC output and ±0.5% accuracy. It has a nylon housing with IP67 and NEMA 4X ratings, a 1/4 in Male NPT process connection, and overpressure of 2x range with burst pressure of 5x range.

Frequently Asked Questions

What is the ASHCROFT G1 pressure transmitter used for?

The ASHCROFT G1 pressure transmitter measures pressure from 0 psi to 3,000 psi and outputs a 4 to 20mA DC signal for industrial process control, hydraulic systems, and pump monitoring. Its IP67 and NEMA 4X nylon housing suits harsh environments.

What are the specifications of the ASHCROFT G1 pressure transmitter?

The ASHCROFT G1 (MPN G17M0242F23000#) has ±0.5% accuracy, 4 to 20mA DC output, 1/4 in Male NPT connection, IP67 and NEMA 4X ratings, overpressure of 2x range, and burst pressure of 5x range. Housing is nylon; no NIST-traceable calibration certificate is included.

Where to buy the ASHCROFT G1 pressure transmitter worldwide?

3G Electric supplies the ASHCROFT G1 pressure transmitter worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this model.

How to install the ASHCROFT G1 pressure transmitter?

Install the ASHCROFT G1 by threading the 1/4 in Male NPT connection into a compatible port using PTFE tape on threads. Wire the 4 to 20mA DC output per the diagram. Avoid over-torquing the nylon housing. Ensure the IP67 seal is intact.

Used in

Common applications for ASHCROFT
Process control in chemical plants — ASHCROFT G2 series pressure transmitters with 4-20 mA output
Sanitary monitoring in food processing — ASHCROFT sanitary pressure transmitters with stainless steel fittings
Temperature measurement in oil and gas — ASHCROFT flanged thermowells rated to 1,000°F
Hydraulic system pressure monitoring — ASHCROFT G2 series transmitters with 1-5 V DC output
Hazardous location pressure sensing — ASHCROFT A2X explosion-proof transmitters with conduit connection
Steam system temperature protection — ASHCROFT threaded thermowells rated to 7,000 psi

ASHCROFT Products

3G Electric supplies ASHCROFT pressure transmitters with cable & wire leads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
