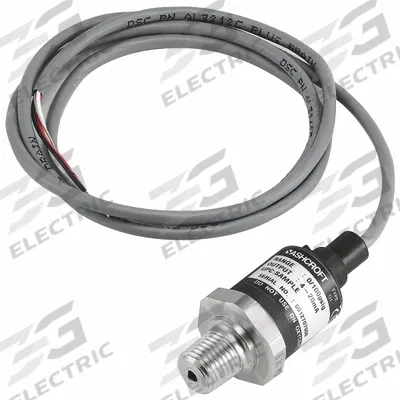

ASHCROFT Pressure Transmitter: 0 psi to 5,000 psi, 4 to 20mA DC, Cable & Wire Leads - Pressure Transmitters with Cable & Wire Leads
ASHCROFTPressure Transmitters with Cable & Wire Leads

ASHCROFT Pressure Transmitter: 0 psi to 5,000 psi, 4 to 20mA DC, Cable & Wire Leads

The ASHCROFT G2 Series Pressure Transmitter (SKU 5DEK9) is a cable and wire lead pressure transmitter with a 0 psi to 5,000 psi range and a 4 to 20mA DC output. It features ±0.5% accuracy, an IP67 and NEMA 4X rating…

SKU 3G-OTH-176373

Brand
ASHCROFT
Item
Pressure Transmitter: 0 psi to 5,000 psi, 4 to 20mA DC, Cable & Wire Leads
Category
Pressure Transmitters with Cable & Wire Leads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
G17M0242F25000#
Series
G2
Type
Cable & Wire Leads
DC
4 to 20mA
Output
4 to 20mA DC
Accuracy
±0.5%
Male NPT
1/4 in
IP Rating
IP67
NEMA Rating
4X
Overpressure
1.5x Range
Burst Pressure
5x Range
Housing Material
Nylon
Process Connection Type
NPT
Process Connection Gender
Male
Calibration Certificate Included
No NIST-Traceable Calibration Certificate Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT G2 Series Pressure Transmitter (SKU 5DEK9) is a cable and wire lead pressure transmitter with a 0 psi to 5,000 psi range and a 4 to 20mA DC output. It features ±0.5% accuracy, an IP67 and NEMA 4X rating, a nylon housing, and a 1/4 in male NPT process connection. Overpressure capability is 1.5x range, with burst pressure at 5x range.

Frequently Asked Questions

What is the ASHCROFT G2 pressure transmitter used for?

The ASHCROFT G2 pressure transmitter is used for industrial pressure measurement in applications requiring a 0 psi to 5,000 psi range with a 4 to 20mA DC output. It is suitable for harsh environments due to its IP67 and NEMA 4X ratings, making it ideal for process control, hydraulic systems, and water treatment.

What are the specifications of the ASHCROFT G2 pressure transmitter?

The ASHCROFT G2 pressure transmitter (MPN G17M0242F25000#) has a 0 psi to 5,000 psi range, ±0.5% accuracy, 4 to 20mA DC output, 1/4 in male NPT connection, IP67 and NEMA 4X ratings, nylon housing, overpressure of 1.5x range, and burst pressure of 5x range. No NIST-traceable calibration certificate is included.

Where to buy the ASHCROFT G2 pressure transmitter worldwide?

You can source the ASHCROFT G2 pressure transmitter from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this model.

How to select the right ASHCROFT pressure transmitter for my system?

To select the right ASHCROFT pressure transmitter, match the pressure range (e.g., 0 psi to 5,000 psi), output signal (4 to 20mA DC), and process connection (1/4 in male NPT) to your system requirements. Consider environmental ratings like IP67 and NEMA 4X for wet or corrosive conditions. Verify overpressure and burst pressure margins for safety.

Used in

Common applications for ASHCROFT
Process control in chemical plants — ASHCROFT G2 series pressure transmitters with 4-20 mA output
Sanitary monitoring in food processing — ASHCROFT sanitary pressure transmitters with stainless steel fittings
Temperature measurement in oil and gas — ASHCROFT flanged thermowells rated to 1,000°F
Hydraulic system pressure monitoring — ASHCROFT G2 series transmitters with 1-5 V DC output
Hazardous location pressure sensing — ASHCROFT A2X explosion-proof transmitters with conduit connection
Steam system temperature protection — ASHCROFT threaded thermowells rated to 7,000 psi

ASHCROFT Products

3G Electric supplies ASHCROFT pressure transmitters with cable & wire leads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
