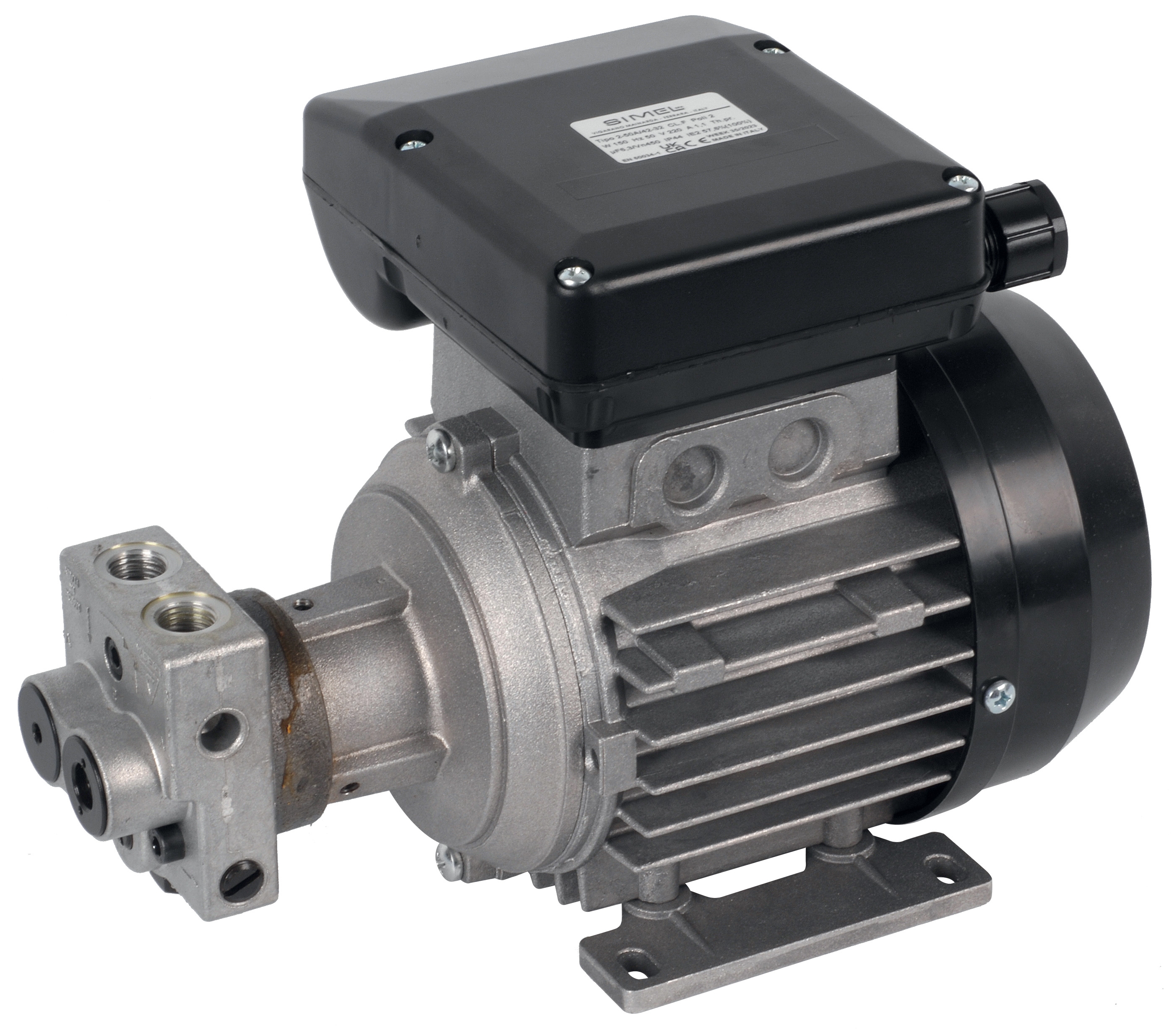

Inpro Oil transfer unit VD5

The Inpro VD5 is an oil transfer unit delivering 110 L/h at maximum 10 bar pressure, powered by 230 Vac 50 Hz. Featuring G1/4" inlet and adjustable bypass pressure from 2–10 bar, it suits industrial lubrication and…

SKU 3G-CBM-00095

Also listed as: ALI 05004 · ALI-05004

Brand

Inpro

Item

Oil transfer unit VD5

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Inpro

type

oil transfer unit

model

DW 120 R / VD5

max power w

150

max flow l h

110

power supply

230 Vac 50 Hz

inlet connection

G1/4"

max pressure bar

10

outlet connection

G1/8"

return connection

G1/4"

pressure range bar

2–10

bypass pressure bar

4

Datasheet Content

MOTOPOMPES POUR VD2 / VD5
                (avec retour à la cuve)

       Caracteristiques techniques

                             DW 60 R / A_VD2      DW 120 R / VD5
Débit max à 2,5 bar               60 l/h              110 l/h
Tension d’alimentation           230 Vac Monophasé 50 Hz
Consommation maximale                       150 W
Raccordement Aspiration                     G1/4”
Raccordement Refoulement                    G1/8”
Raccordement Retour                         G1/4”
Pression max.                               10 bar
Réglage pression                          2 – 10 bar
Régulation Bypass d’usine          4 bar               4 bar
Poids                            4,65 Kg               5 kg
Dimensions (approx)                  310 x 200 x 210 mm

       Débit:

       DW 60                                     DW 120

       Schéma de principe:
               Dimensions:

               Raccordements:
                           DW 60 R / A_VD2             DW 120 R / VDU5

Pompe : plus d’infos :   AD pump datasheet             VDU datasheet

                                             Ref. SI
                                                                         0118 SA

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Inpro Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the Inpro VD5 oil transfer unit used for?

The Inpro VD5 oil transfer unit is used for reliable oil circulation in industrial lubrication and hydraulic systems. It delivers 110 L/h at up to 10 bar pressure, making it suitable for applications requiring consistent oil supply to machinery.

What are the specifications of the Inpro VD5 oil transfer unit?

The Inpro VD5 (model DW 120 R) is an oil transfer unit with 150 W power, 230 Vac 50 Hz supply, G1/4" inlet, G1/8" outlet, and G1/4" return connections. It delivers 110 L/h at max 10 bar, with adjustable bypass pressure from 2–10 bar (factory set at 4 bar).

Where to buy the Inpro VD5 oil transfer unit in Singapore?

You can source the Inpro VD5 oil transfer unit through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this industrial lubrication component.

How to install the Inpro VD5 oil transfer unit?

Install the Inpro VD5 on a stable surface near the oil reservoir. Connect the G1/4" inlet to the suction line, G1/8" outlet to the system, and G1/4" return to the tank. Adjust the bypass pressure between 2–10 bar as needed. Ensure electrical supply matches 230 Vac 50 Hz.
