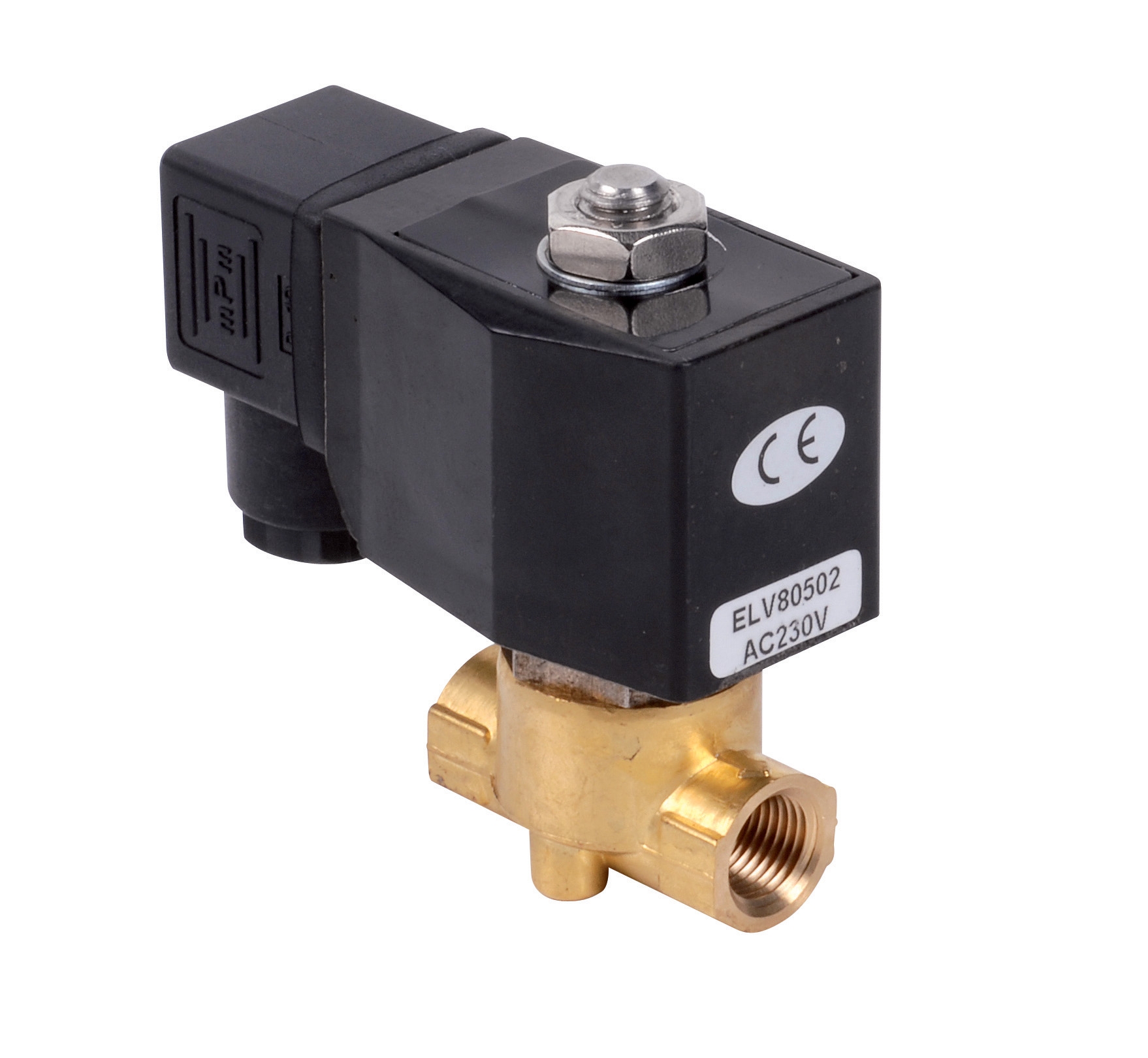

ELV Solenoid valve D.1"1/4 NO MINI O 230V
ELV solenoid valve with 1" 1/4 threaded connection and 32 mm passage diameter, rated to 5 bar differential pressure. Handles air, water, and fuel oil up to 20 cSt viscosity. Energized at 230 V for pneumatic and…
SKU 3G-CBM-03230
Also listed as: D 114 · D-114
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
ELV solenoid valve with 1" 1/4 threaded connection and 32 mm passage diameter, rated to 5 bar differential pressure. Handles air, water, and fuel oil up to 20 cSt viscosity. Energized at 230 V for pneumatic and hydraulic control applications.
Frequently Asked Questions
What is the ELV solenoid valve D.1"1/4 NO MINI O 230V used for?
This ELV normally open solenoid valve is used for on/off control of air, water, and fuel oil up to 20 cSt viscosity in pneumatic and hydraulic systems. It is suitable for industrial fluid handling applications requiring a 1" 1/4 threaded connection and a 32 mm passage diameter.
What are the specifications of the ELV solenoid valve D.1"1/4 NO MINI O 230V?
The ELV solenoid valve has a 1" 1/4 threaded connection, 32 mm passage diameter, and a Cv value of 24. It operates at a maximum differential pressure of 5 bar, handles fluids up to 20 cSt viscosity, and consumes 70 VA at 230 V AC. The bronze body includes an NBR diaphragm.
Where to buy the ELV solenoid valve D.1"1/4 NO MINI O 230V in Singapore?
3G Electric supplies the ELV solenoid valve D.1"1/4 NO MINI O 230V to Singapore. We source this ELV model and handle logistics, customs clearance, and delivery to your facility. Contact us for availability and lead time.
How to install the ELV solenoid valve D.1"1/4 NO MINI O 230V?
Install the ELV solenoid valve with the flow direction matching the arrow on the bronze body. Use thread sealant on the 1" 1/4 connections and ensure the coil voltage (230 V AC) is within +/-10% tolerance. Mount the valve with the coil upright to prevent moisture ingress.
