ELVSolenoid Valves

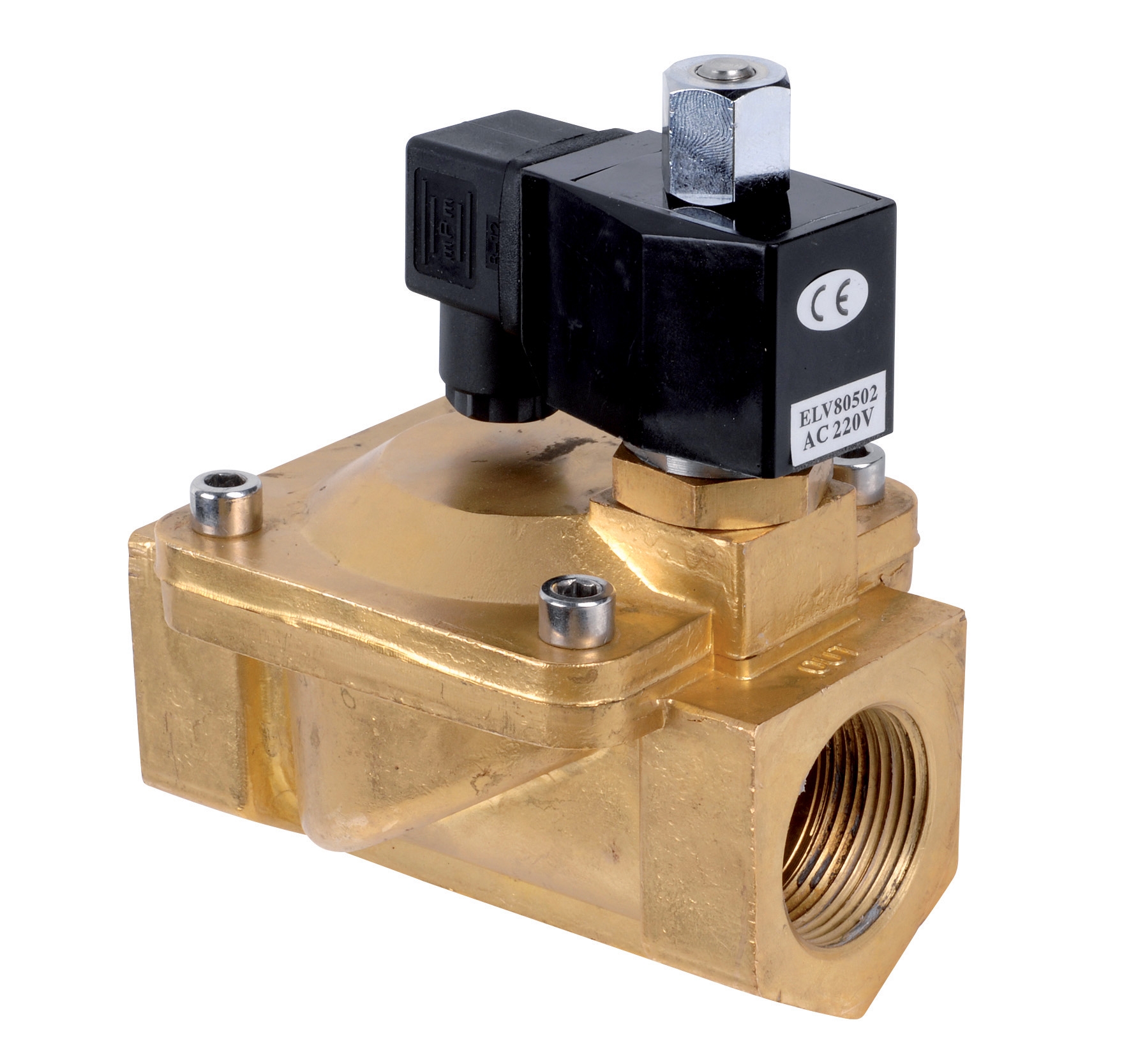

ELV Solenoid valve D.1"1/4 NO 230V

ELV solenoid valve for air, water, and fuel oil applications with DN 1.25" opening, rated to 12 bar maximum pressure and operating across 0.5 to 8 bar range. Available in 230V configuration, suitable for industrial…

SKU 3G-CBM-03237

Also listed as: ELV 20010 · ELV-20010

Brand

ELV

Item

Solenoid valve D.1"1/4 NO 230V

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

ELV

power 24v

32 W

connection

1"

fluid type

Air, Water, Fuel oil

power 220v

33 VA

pressure max

12 bar

pressure range

0.5 to 8 bar

fluid viscosity

less than 20 CST

Datasheet Content

Electrovannes bronze NO
                                                                                                         Code
                                Action indirecte

Electrovanne 3/8”                         • Avec connecteur                                             ELV20002

Electrovanne 1/2”                         • Avec connecteur                                             ELV20004

Electrovanne 3/4”                         • Avec connecteur                                             ELV20006

Electrovanne 1”                           • Avec connecteur                                             ELV20008

Electrovanne 1”1/4                        • Avec connecteur                                             3G-CBM-03237

Electrovanne 1”1/2                        • Avec connecteur                                             ELV20012

Electrovanne 2”                           • Avec connecteur                                             ELV20014


Caractéristiques techniques
            Modèle             ELV20002    ELV20004   ELV20006      ELV20008         3G-CBM-03237   ELV20012   ELV20014
Diamètre Raccord                3/8”        1/2”        3/4”            1”            1”1/4      1”1/2       2”
Diamètre passage                13mm        13mm       20mm          25mm             35mm       40mm       50mm
Pression différentielle max.      8           8          8              8               8          8          8
Valeur CV                        4.5         4.5        7.6            12              22         30         48
Consommation VA 220 volt         33          33          33            33              33         33         33
Consommation W 24 volt           32          32          32            32              32         32         32
Dim A mm                        66.5        66.5         75            96              131        131        165
Dim C mm                        112.5       112.5       118            131             146        146        167
Viscosité fluide                                               Moins de 20 CST
Fluide                                                           Air - Eau - Fioul
Pression fonctionnement                                            0.5 ~8 bar
Pression maxi                                                         12 bar
Température maxi                                                  -10°C ~90°C
Tension                                                       +/- 10% - AC230V
Matériel corps                                                       Bronze
Membrane                                                              NBR
Mode opération                                                Commande indirecte
Type                                                          Normalement ouverte
Protection IP                                                         IP65


PIÈCES DE RECHANGES POUR VANNES
            Modèle             ELV20002    ELV20004   ELV20006      ELV20008         3G-CBM-03237   ELV20012   ELV20014
Référence bobine 220 V         ELV80502    ELV80502   ELV80502      ELV80502         ELV80502   ELV80502   ELV80502
Référence bobine 110 V         ELV80522    ELV80522   ELV80522      ELV80522         ELV80522   ELV80522   ELV80522
Référence bobine AC 48 V       ELV80542    ELV80542   ELV80542      ELV80542         ELV80542   ELV80542   ELV80542
Référence bobine AC 24 V       ELV80560    ELV80560   ELV80560      ELV80560         ELV80560   ELV80560   ELV80560
Référence bobine AC 12 V       ELV80602    ELV80602   ELV80602      ELV80602         ELV80602   ELV80602   ELV80602
Référence bobine DC 24 V       ELV81502    ELV81502   ELV81502      ELV81502         ELV81502   ELV81502   ELV81502
Référence bobine DC 12 V       ELV81520    ELV81520   ELV81520      ELV81520         ELV81520   ELV81520   ELV81520
Référence membrane NBR         ELV90530    ELV90530   ELV90522      ELV90524         ELV90524   ELV90524   ELV90524
Référence membrane EPDM        ELV91530    ELV91530   ELV91522      ELV91524         ELV91524   ELV91524   ELV91524
Référence membrane VITON       ELV92530    ELV92530   ELV92522      ELV92524         ELV92524   ELV92524   ELV92524


                                                                                                                      247

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the ELV solenoid valve D.1"1/4 NO 230V used for?

The ELV solenoid valve D.1"1/4 NO 230V is used for industrial fluid control of air, water, and fuel oil. It is a normally open, indirect-acting valve with a bronze body and NBR membrane, suitable for applications requiring reliable on/off flow control within a 0.5 to 8 bar differential pressure range.

What are the specifications of the ELV solenoid valve D.1"1/4 NO 230V?

The ELV solenoid valve D.1"1/4 NO 230V has a 1"1/4 connection, 35 mm orifice, CV factor of 22, and operates at 230 VAC (33 VA). Maximum pressure is 12 bar, working range 0.5–8 bar, fluid viscosity under 20 CST, and temperature range -10°C to 90°C. It is IP65 rated.

Where to buy the ELV solenoid valve D.1"1/4 NO 230V in Singapore?

3G Electric supplies the ELV solenoid valve D.1"1/4 NO 230V to Singapore. We handle sourcing, logistics, customs clearance, and local delivery. Contact our team for pricing and lead time on this normally open, 230V solenoid valve for air, water, and fuel oil applications.

How to install the ELV solenoid valve D.1"1/4 NO 230V?

Install the ELV solenoid valve D.1"1/4 NO 230V with the flow direction matching the arrow on the bronze body. Ensure the coil is wired to 230 VAC +/-10% and the valve is mounted in a clean, dry location. Use appropriate thread sealant on the 1"1/4 connections and verify the differential pressure stays within 0.5–8 bar.
