ELVSolenoid Valves

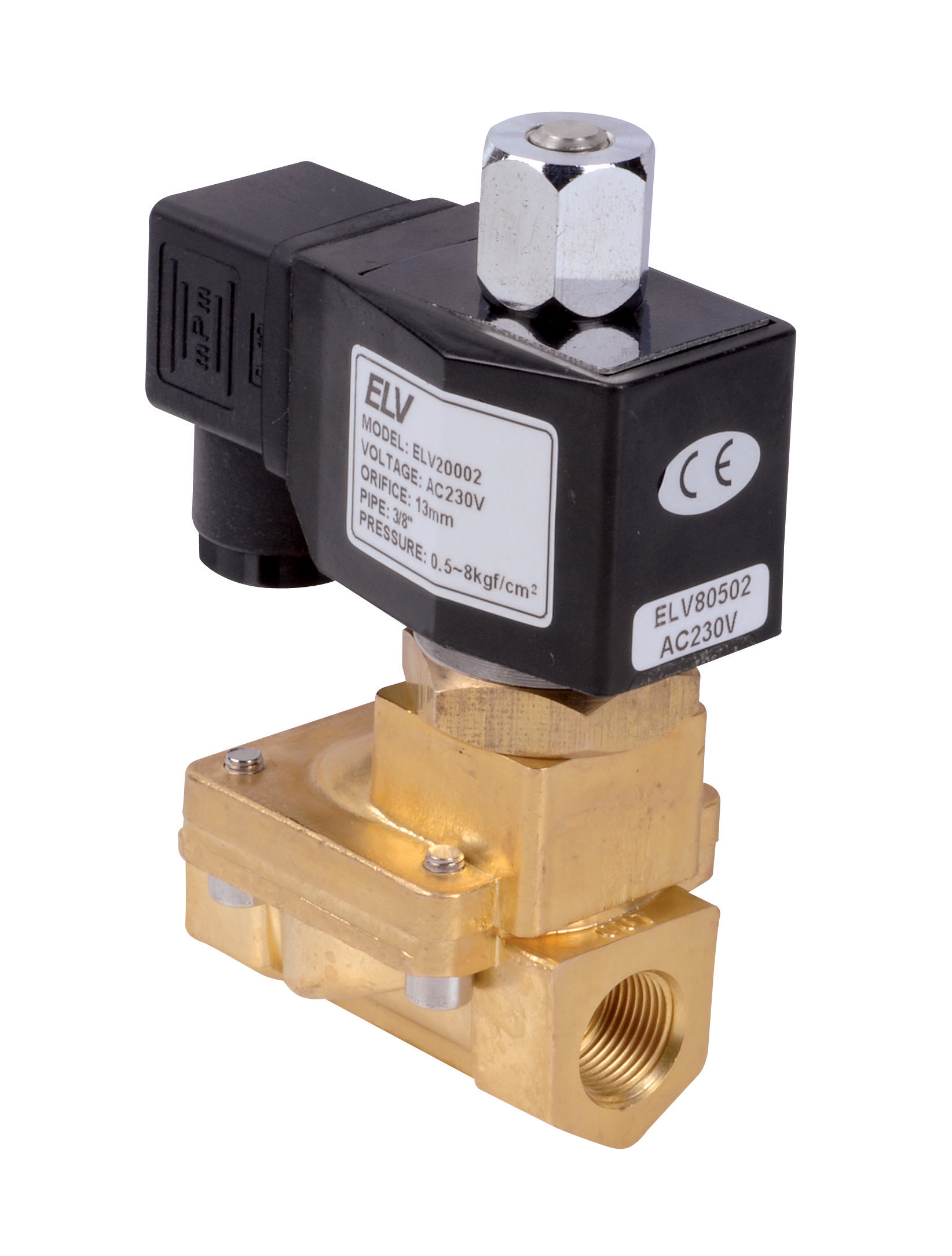

ELV Solenoid valve D.3/8 NO 230V

ELV solenoid valve with 3/8" NO indirect-action design handles air, water, and oil at operating pressures of 0.5–8 bar and maximum 12 bar. Operates at 230V (33 VA) with fluid viscosity below 20 CST. Suitable for…

SKU 3G-CBM-03233

Also listed as: ELV 20002 · ELV-20002

Brand

ELV

Item

Solenoid valve D.3/8 NO 230V

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

ELV

type

3/8" NO indirect action

fluid

Air - Water - Oil

voltage 24v

32 W

max pressure

12 bar

voltage 220v

33 VA

fluid viscosity

< 20 CST

operating pressure

0.5 - 8 bar

Datasheet Content

Electrovannes bronze NO
                                                                                                         Code
                                Action indirecte

Electrovanne 3/8”                         • Avec connecteur                                             3G-CBM-03233

Electrovanne 1/2”                         • Avec connecteur                                             ELV20004

Electrovanne 3/4”                         • Avec connecteur                                             ELV20006

Electrovanne 1”                           • Avec connecteur                                             ELV20008

Electrovanne 1”1/4                        • Avec connecteur                                             ELV20010

Electrovanne 1”1/2                        • Avec connecteur                                             ELV20012

Electrovanne 2”                           • Avec connecteur                                             ELV20014


Caractéristiques techniques
            Modèle             3G-CBM-03233    ELV20004   ELV20006      ELV20008         ELV20010   ELV20012   ELV20014
Diamètre Raccord                3/8”        1/2”        3/4”            1”            1”1/4      1”1/2       2”
Diamètre passage                13mm        13mm       20mm          25mm             35mm       40mm       50mm
Pression différentielle max.      8           8          8              8               8          8          8
Valeur CV                        4.5         4.5        7.6            12              22         30         48
Consommation VA 220 volt         33          33          33            33              33         33         33
Consommation W 24 volt           32          32          32            32              32         32         32
Dim A mm                        66.5        66.5         75            96              131        131        165
Dim C mm                        112.5       112.5       118            131             146        146        167
Viscosité fluide                                               Moins de 20 CST
Fluide                                                           Air - Eau - Fioul
Pression fonctionnement                                            0.5 ~8 bar
Pression maxi                                                         12 bar
Température maxi                                                  -10°C ~90°C
Tension                                                       +/- 10% - AC230V
Matériel corps                                                       Bronze
Membrane                                                              NBR
Mode opération                                                Commande indirecte
Type                                                          Normalement ouverte
Protection IP                                                         IP65


PIÈCES DE RECHANGES POUR VANNES
            Modèle             3G-CBM-03233    ELV20004   ELV20006      ELV20008         ELV20010   ELV20012   ELV20014
Référence bobine 220 V         ELV80502    ELV80502   ELV80502      ELV80502         ELV80502   ELV80502   ELV80502
Référence bobine 110 V         ELV80522    ELV80522   ELV80522      ELV80522         ELV80522   ELV80522   ELV80522
Référence bobine AC 48 V       ELV80542    ELV80542   ELV80542      ELV80542         ELV80542   ELV80542   ELV80542
Référence bobine AC 24 V       ELV80560    ELV80560   ELV80560      ELV80560         ELV80560   ELV80560   ELV80560
Référence bobine AC 12 V       ELV80602    ELV80602   ELV80602      ELV80602         ELV80602   ELV80602   ELV80602
Référence bobine DC 24 V       ELV81502    ELV81502   ELV81502      ELV81502         ELV81502   ELV81502   ELV81502
Référence bobine DC 12 V       ELV81520    ELV81520   ELV81520      ELV81520         ELV81520   ELV81520   ELV81520
Référence membrane NBR         ELV90530    ELV90530   ELV90522      ELV90524         ELV90524   ELV90524   ELV90524
Référence membrane EPDM        ELV91530    ELV91530   ELV91522      ELV91524         ELV91524   ELV91524   ELV91524
Référence membrane VITON       ELV92530    ELV92530   ELV92522      ELV92524         ELV92524   ELV92524   ELV92524


                                                                                                                      247

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the ELV solenoid valve D.3/8 NO 230V used for?

The ELV solenoid valve D.3/8 NO 230V is used for general industrial automation and fluid-control applications. It handles air, water, and oil at operating pressures of 0.5–8 bar and fluid viscosity below 20 CST. Its normally open, indirect-action design makes it suitable for systems requiring fail-open operation.

What are the specifications of the ELV solenoid valve D.3/8 NO 230V?

The ELV solenoid valve D.3/8 NO 230V has a 3/8" normally open indirect-action design. It operates at 230V AC (33 VA) with a maximum pressure of 12 bar and operating pressure range of 0.5–8 bar. The valve body is bronze, membrane is NBR, and it has IP65 protection.

Where to buy the ELV solenoid valve D.3/8 NO 230V in Singapore?

You can source the ELV solenoid valve D.3/8 NO 230V through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this ELV model.

How to install the ELV solenoid valve D.3/8 NO 230V?

Install the ELV solenoid valve D.3/8 NO 230V with the flow direction matching the arrow on the bronze body. Ensure the coil connector is properly seated and the voltage matches 230V AC. Use PTFE tape on threads and avoid overtightening. The valve is IP65 rated for indoor or protected outdoor use.

Used in

Common applications for ELV

Pneumatic automation and directional control — ELV 2/2-way and 3/2-way pilot-operated solenoid valves in compressed-air circuits

Fluid-power machinery — ELV cavity cartridges and manifold-integrated solenoids in hydraulic and lubrication systems

Packaging and filling equipment — ELV proportional and on-off solenoid valves for rapid actuation and media switching

Water treatment and circulation systems — ELV valves rated for continuous water flow control and process isolation

Gas burner and combustion control — ELV solenoid coils for gas isolation and pilot fuel regulation in industrial burner systems

Maintenance and retrofit projects — ELV replacement solenoid coils and membrane kits for in-service valve replacement without removing the valve body
