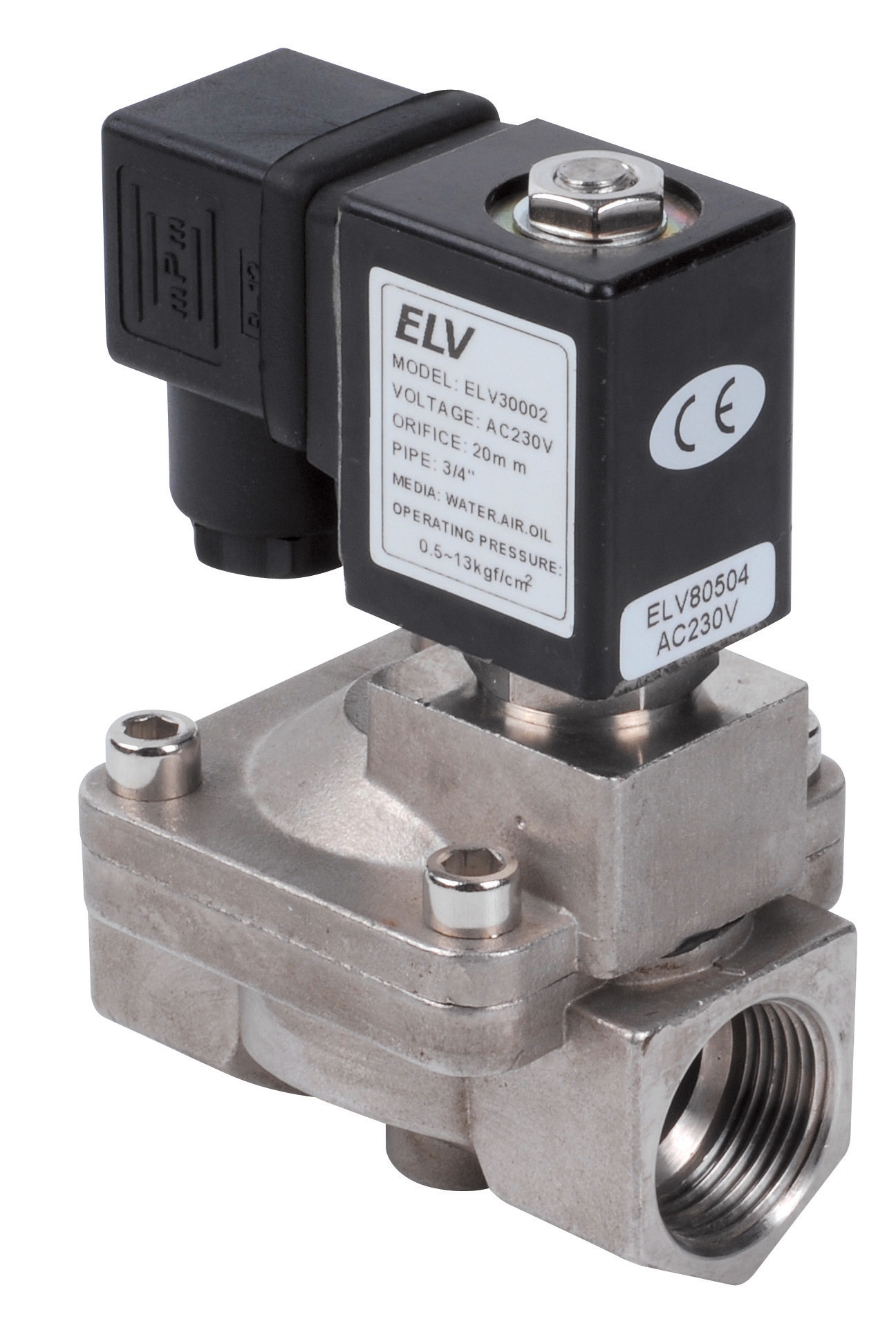

ELV Stainless solenoid valve D.3/4 NF 230V

ELV Stainless Solenoid Valve D.3/4 NF 230V

SKU 3G-CBM-03256

Also listed as: ELV 30002 · ELV-30002

Brand

ELV

Item

Stainless solenoid valve D.3/4 NF 230V

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

ELV

cv value

7.6

ip rating

IP65

valve type

Normally closed

dimension a

75 mm

dimension c

118 mm

body material

Stainless Steel INOX 316

connector type

With connector

operation mode

Indirect actuation

supply voltage

AC 230V ±10%

maximum pressure

17 bar

passage diameter

20 mm

compatible fluids

Air, Water, Fuel Oil

membrane material

NBR

temperature range

-10°C to 90°C

port connection size

3/4"

power consumption 24v

13 W

power consumption 220v

22 VA

operating pressure range

0.5 - 13 bar

max differential pressure

13 bar

Datasheet Content

Electrovannes inox NF
                                                                                                       Code
                                        Action indirecte

      Electrovanne 3/8”                           • Avec connecteur                                    ELV30001

      Electrovanne 1/2”                           • Avec connecteur                                    ELV30003

      Electrovanne 3/4”                           • Avec connecteur                                    3G-CBM-03256

      Electrovanne 1”                             • Avec connecteur                                    ELV30004

      Electrovanne 1”1/4                          • Avec connecteur                                    ELV30006

      Electrovanne 1”1/2                          • Avec connecteur                                    ELV30008

      Electrovanne 2”                             • Avec connecteur                                    ELV30010


      Caractéristiques techniques
                  Modèle                  3G-CBM-03256        ELV30004        ELV30006          ELV30008    ELV30010
      Diamètre Raccord                      3/4”              1”            1 1/4”           1 1/2”        2”
      Diamètre passage                     20mm             25mm            35mm             40mm        50mm
      Pression différentielle max.           13              13               13               13         13
      Valeur CV                             7.6              12               24               29         48
      Consommation VA 220 volt               22              22               22               22         13
      Consommation W 24 volt                 13              13               13               22         13
      Dim A                                  75              91               131             131         165
      Dim C                                 118              131              146             146         167
      Fluide                                                            Air - Eau - Fioul
      Pression fonctionnement                                            0.5 ~13 bar
      Pression maxi                                                         17 bar
      Température maxi                                                   -10°C ~90°C
      Tension                                                         +/- 10% - AC230V
      Matériel corps                                                      Acier INOX 316
      Membrane                                                               NBR
      Mode opération                                                  Commande indirecte
      Type                                                            Normalement fermée
      Protection IP                                                          IP65


      PIÈCES DE RECHANGES POUR VANNES
                  Modèle                  3G-CBM-03256        ELV30004        ELV30006          ELV30008   ELV30010
      Référence bobine 220 V              ELV80504        ELV80504        ELV80504          ELV80504   ELV80504
      Référence bobine 110 V              ELV80522        ELV80522        ELV80522          ELV80522   ELV80522
      Référence bobine AC 48 V            ELV80542        ELV80542        ELV80542          ELV80542   ELV80542
      Référence bobine AC 24 V            ELV80562        ELV80562        ELV80562          ELV80562   ELV80562
      Référence bobine AC 12 V            ELV80604        ELV80604        ELV80604          ELV80604   ELV80604
      Référence bobine DC 24 V            ELV81504        ELV81504        ELV81504          ELV81504   ELV81504
      Référence bobine DC 12 V            ELV81522        ELV81522        ELV81522          ELV81522   ELV81522
      Référence membrane NBR              ELV90522        ELV90524        ELV90526          ELV90526   ELV90528
      Référence membrane EPDM             ELV91522        ELV91524        ELV91526          ELV91526   ELV91528
      Référence membrane VITON            ELV92522        ELV92524        ELV92526          ELV92526   ELV92528


252

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

ELV Stainless Solenoid Valve D.3/4 NF 230V

Frequently Asked Questions

What is the ELV stainless solenoid valve D.3/4 NF 230V used for?

The ELV stainless solenoid valve D.3/4 NF 230V is used to control the flow of air, water, and fuel oil in industrial systems. Its normally closed, indirect-acting design and INOX 316 body make it suitable for applications requiring reliable shut-off and corrosion resistance, such as process automation and fluid handling.

What are the specifications of the ELV stainless solenoid valve D.3/4 NF 230V?

The ELV stainless solenoid valve D.3/4 NF 230V has a 3/4" port connection, 20 mm passage diameter, CV value of 7.6, and operates at AC 230V ±10%. It handles pressures from 0.5 to 13 bar (max 17 bar), temperatures from -10°C to 90°C, and is rated IP65 with an NBR membrane.

Where to buy the ELV stainless solenoid valve D.3/4 NF 230V in Singapore?

You can source the ELV stainless solenoid valve D.3/4 NF 230V from 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this ELV solenoid valve.

How to install the ELV stainless solenoid valve D.3/4 NF 230V?

Install the ELV stainless solenoid valve D.3/4 NF 230V with the flow direction matching the arrow on the body. Ensure the coil connector is securely attached and the valve is mounted in a clean, dry location within its IP65 rating. Refer to the ELV datasheet for torque and wiring details.

Used in

Common applications for ELV

Pneumatic automation and directional control — ELV 2/2-way and 3/2-way pilot-operated solenoid valves in compressed-air circuits

Fluid-power machinery — ELV cavity cartridges and manifold-integrated solenoids in hydraulic and lubrication systems

Packaging and filling equipment — ELV proportional and on-off solenoid valves for rapid actuation and media switching

Water treatment and circulation systems — ELV valves rated for continuous water flow control and process isolation

Gas burner and combustion control — ELV solenoid coils for gas isolation and pilot fuel regulation in industrial burner systems

Maintenance and retrofit projects — ELV replacement solenoid coils and membrane kits for in-service valve replacement without removing the valve body
