ELVSolenoid Valves

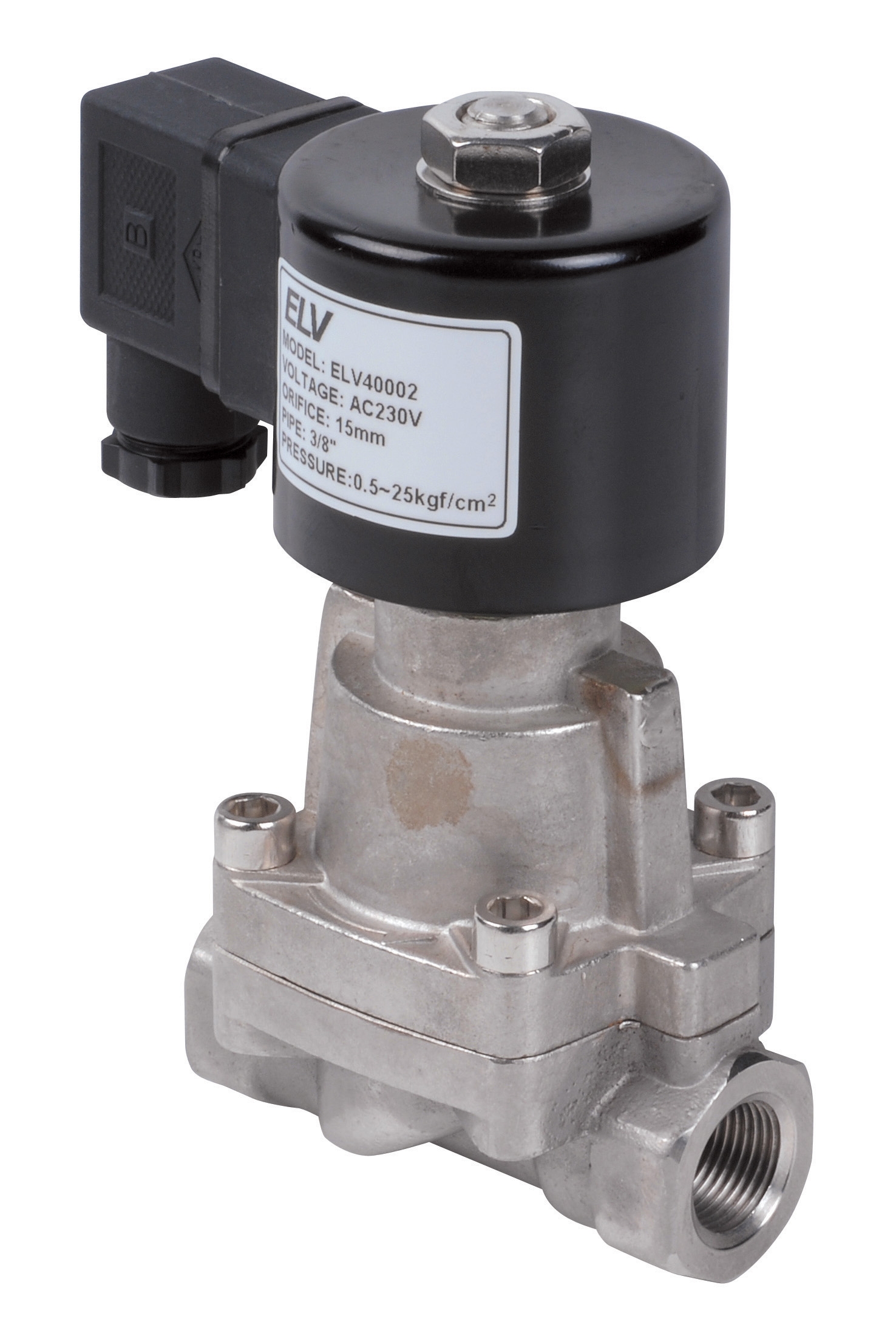

ELV Stainless steel steam solenoid valve D 3/8

ELV stainless steel steam solenoid valve for steam systems and industrial process applications. Features 3/8" connection with 15 mm passage diameter, rated for 0.5 to 10 bar operating pressure and Cv value of 4.5…

SKU 3G-CBM-03268

Also listed as: ELV 40002 · ELV-40002

Brand

ELV

Item

Stainless steel steam solenoid valve D 3/8

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

ELV

fluid

steam

cv value

4.5

max pressure

10 bar

connection size

3/8"

passage diameter

15mm

operating pressure

0.5 to 10 bar

max fluid viscosity

50 CST

max differential pressure

25 bar

Datasheet Content

Electrovannes inox NF vapeur                                                     Code

Electrovanne vapeur 3/8”                                                                           3G-CBM-03268

Electrovanne vapeur 1/2”                                                                           ELV40004

Electrovanne vapeur 3/4”                                                                           ELV40006

Electrovanne vapeur 1”                                                                             ELV40008

Electrovanne vapeur 1”1/4                                                                          ELV40010

Electrovanne vapeur 1”1/2                                                                          ELV40012

Caractéristiques techniques
            Modèle             3G-CBM-03268   ELV40004   ELV40006     ELV40008       ELV40010   ELV40012    ELV40014
Diamètre Raccord                3/8”       1/2”       3/4”           1”          1”1/4      1”1/2         2”
Diamètre passage               15mm       15mm       20mm          25mm          35mm       35mm         50mm
Pression différentielle max.     25         25         25            25            25         25          25
Valeur CV                        4.5        4.5        9.3          13.2           16         26          48
Dim. A mm                        75         75         85           100           120        120         150
Dim. C mm                       129        129        141           148           168        168         190
Viscosité fluide                                             Moins de 50 CST
Fluide                                                             Vapeur
Pression fonctionnement                                         0.5 ~ 10 bar
Pression maxi                                                      10 bar
Température maxi                                                5°C ~ 180°C
Tension                                                      +/- 10% - AC230V
Matériel corps                                                   Acier inox
Membrane                                                            Teflon
Mode opération                                                  Action directe
Type                                                        Normalement fermée

PIÈCES DE RECHANGES POUR VANNES
            Modèle             3G-CBM-03268   ELV40004   ELV40006     ELV40008       ELV40010   ELV40012    ELV40014
Référence bobine 220 V         ELV80515   ELV80515   ELV80515     ELV80515       ELV80515   ELV80515    ELV80515
Référence bobine 110 V            -          -          -             -             -          -           -
Référence bobine AC 48 V          -          -          -             -             -          -           -
Référence bobine AC 24 V          -          -          -             -             -          -           -
Référence bobine AC 12 V          -          -          -             -             -          -           -
Référence bobine DC 24 V       ELV81515   ELV81515   ELV81515     ELV81515       ELV81515   ELV81515    ELV81515
Référence bobine DC 12 V       ELV81530   ELV81530   ELV81530     ELV81530       ELV81530   ELV81530    ELV81530
Référence membrane NBR            -          -          -             -             -          -           -
Référence membrane EPDM           -          -          -             -             -          -           -
Référence membrane VITON          -          -          -             -             -          -           -

                                                                                                                   255
BRASS STREAM VALVES
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                                 1/4
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                     ELV35004

                                                     ELV35006

                                                     ELV35008

                                                     ELV35010

                                                      ELV35012

                                                                 2/4
                              1/4

        INOX STREAM VALVES
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                     3G-CBM-03268

                                                     ELV40004

                                                     ELV40006

                                                     ELV40008

                                                                 3/4
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                                 4/4

Technical Documents

(2)

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the ELV stainless steel steam solenoid valve D 3/8 used for?

The ELV stainless steel steam solenoid valve D 3/8 is used for automated steam control in manufacturing and heating installations. It handles steam in industrial process applications, such as steam systems, where reliable on/off control is required. The valve is normally closed and operates with direct action.

What are the specifications of the ELV steam solenoid valve D 3/8?

The ELV steam solenoid valve D 3/8 has a 3/8" connection, 15 mm passage diameter, and Cv value of 4.5. It operates from 0.5 to 10 bar with a maximum differential pressure of 25 bar. The valve handles steam up to 180 °C and fluid viscosity below 50 CST. The body is stainless steel with a Teflon membrane.

Where to buy the ELV steam solenoid valve D 3/8 in Singapore?

You can source the ELV steam solenoid valve D 3/8 through 3G Electric in Singapore. We supply this valve for industrial steam control applications and handle logistics, customs clearance, and delivery to your facility. Contact us for availability and lead time on this model.

How to install the ELV steam solenoid valve D 3/8?

Install the ELV steam solenoid valve D 3/8 with the flow direction matching the arrow on the body. Ensure the steam line is clean and the valve is mounted in the correct orientation (typically coil upright). Use appropriate thread sealant on the 3/8" connections and verify the electrical supply matches the coil voltage (AC230V or DC24V).
