ELVSolenoid Valves

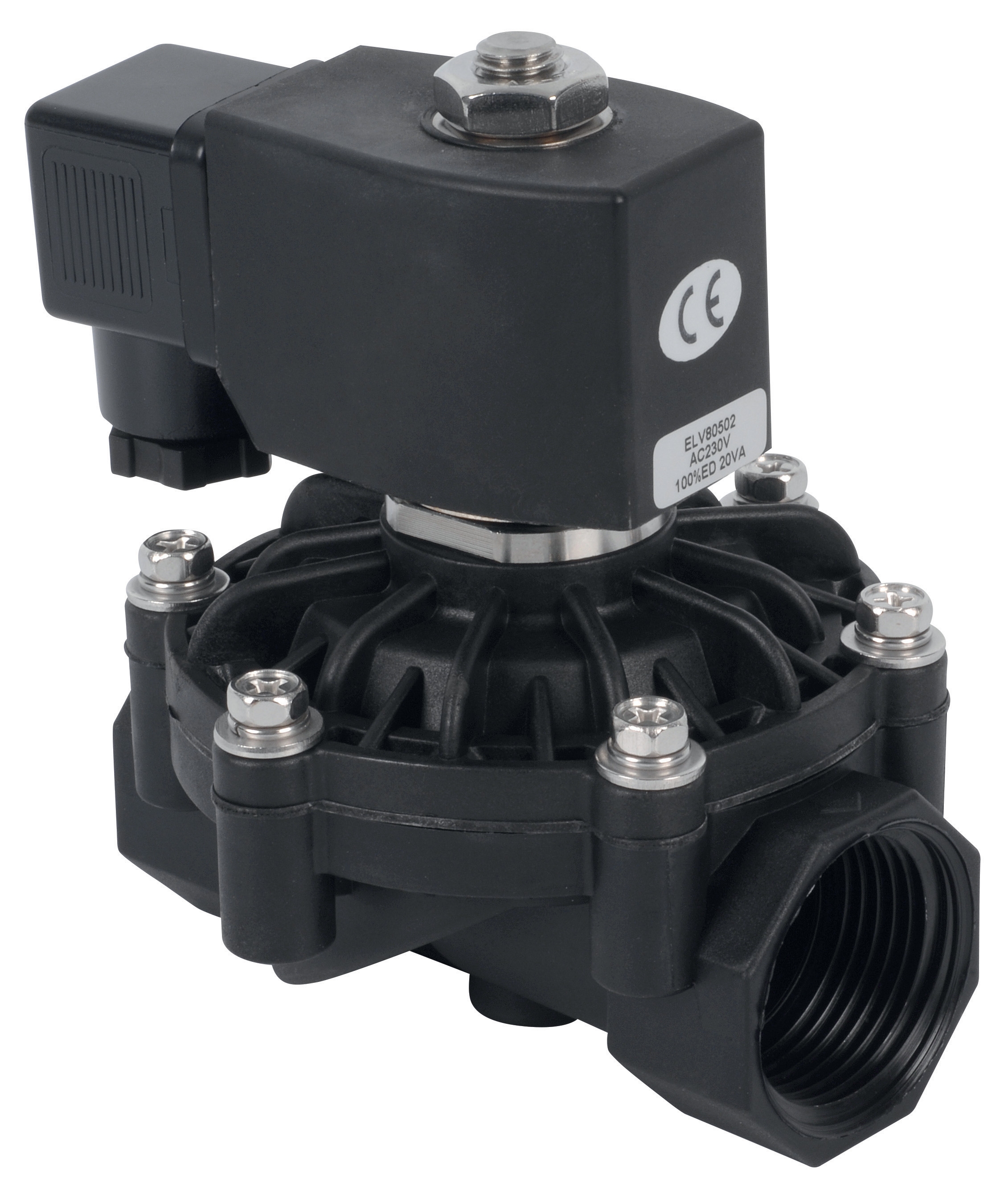

ELV Plastic solenoid valve DN 1" NF 230V Mini 0

ELV solenoid valve for air, water, and oil control applications features 1" connection, 16 bar maximum pressure, and 25 mm flow diameter. Handles viscosity up to 20 CST with low power consumption, suitable for…

SKU 3G-CBM-03280

Also listed as: ELV 55006 · ELV-55006

Brand

ELV

Item

Plastic solenoid valve DN 1" NF 230V Mini 0

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

ELV

fluid

Air - Water - Oil

cv value

12

viscosity

< 20 CST

connection

1"

max pressure

16 bar

flow diameter

25 mm

consumption 24v

32 W

consumption 220v

33 VA

max differential pressure

10 bar

Datasheet Content

Electrovannes plastique nf
                                                                                                 Code
                   Action directe - pression différentiel 0

Electrovanne 1/2”                     • Avec connecteur                                         ELV55002


Electrovanne 3/4”                     • Avec connecteur                                         ELV55004


Electrovanne 1”                       • Avec connecteur                                         3G-CBM-03280




Caractéristiques techniques

                    Modèle                  ELV55002               ELV55004                  3G-CBM-03280
Diamètre Raccord                              1/2”                    3/4”                       1”
Diamètre passage                             16 mm                   20 mm                     25 mm
Pression différentielle max.                   10                      10                        10
Valeur CV                                      4,8                     7,6                       12
Consommation VA 220 volt                       33                      33                        33
Consommation W 24 volt                         32                      32                        32
Dim L mm                                       69                      73                        99
Dim H mm                                       117                   123,5                     134,5
Viscosité fluide                                                Moins de 20 CST
Fluide                                                           Air - Eau - Fioul
Pression fonctionnement                          Eau : 0 ~ 10    Air : 0 ~10     Fioul : 0 ~ 5 bar
Pression maxi                                                        16 bar
Température maxi                                                    -5 ~90°C
Tension                                                         +/- 10% - AC230V
Matériel Corps                                                    Nylon (PA6)
Membrane                                                               NBR
Mode opération                                                  Commande directe
Type                                                        Normalement fermée
Protection IP                                                         IP65

PIÈCES DE RECHANGES POUR VANNES

                    Modèle                  ELV55002               ELV55004                  3G-CBM-03280
Référence bobine 220 V                      ELV80502               ELV80502                  ELV80502
Référence bobine 110 V                      ELV80520               ELV80520                  ELV80520
Référence bobine AC 48 V                    ELV80540               ELV80540                  ELV80540
Référence bobine AC 24 V                    ELV80560               ELV80560                  ELV80560
Référence bobine AC 12 V                    ELV80602               ELV80602                          -
Référence bobine DC 24 V                    ELV81502               ELV81502                  ELV81502
Référence bobine DC 12 V                    ELV81520               ELV81520                  ELV81520
Référence membrane NBR                      ELV90502               ELV90502                  ELV90504
Référence membrane EPDM                     ELV91502               ELV91502                  ELV91504
Référence membrane VITON                    ELV92502               ELV92502                  ELV92504




                                                                                                           243

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the ELV plastic solenoid valve used for?

The ELV plastic solenoid valve is used to control the flow of air, water, and oil in industrial automation and fluid-control systems. It handles viscosity up to 20 CST and operates at pressures up to 16 bar, making it suitable for a wide range of process applications.

What are the specifications of the 3G-CBM-03280 solenoid valve?

The 3G-CBM-03280 solenoid valve has a 1" connection, 25 mm flow diameter, 16 bar maximum pressure, and 10 bar maximum differential pressure. It consumes 33 VA at 220 VAC or 32 W at 24 VDC. The CV value is 12, and the body is nylon (PA6) with an NBR membrane.

Where to buy the ELV plastic solenoid valve in Singapore?

You can source the ELV plastic solenoid valve through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this ELV model.

How to install the ELV solenoid valve?

Install the ELV solenoid valve with the flow direction matching the arrow on the body. Ensure the coil voltage matches your supply (230 VAC for this model). Use PTFE tape on the 1" threads and verify the fluid is compatible with the NBR membrane and nylon body.

Used in

Common applications for ELV

Pneumatic automation and directional control — ELV 2/2-way and 3/2-way pilot-operated solenoid valves in compressed-air circuits

Fluid-power machinery — ELV cavity cartridges and manifold-integrated solenoids in hydraulic and lubrication systems

Packaging and filling equipment — ELV proportional and on-off solenoid valves for rapid actuation and media switching

Water treatment and circulation systems — ELV valves rated for continuous water flow control and process isolation

Gas burner and combustion control — ELV solenoid coils for gas isolation and pilot fuel regulation in industrial burner systems

Maintenance and retrofit projects — ELV replacement solenoid coils and membrane kits for in-service valve replacement without removing the valve body
