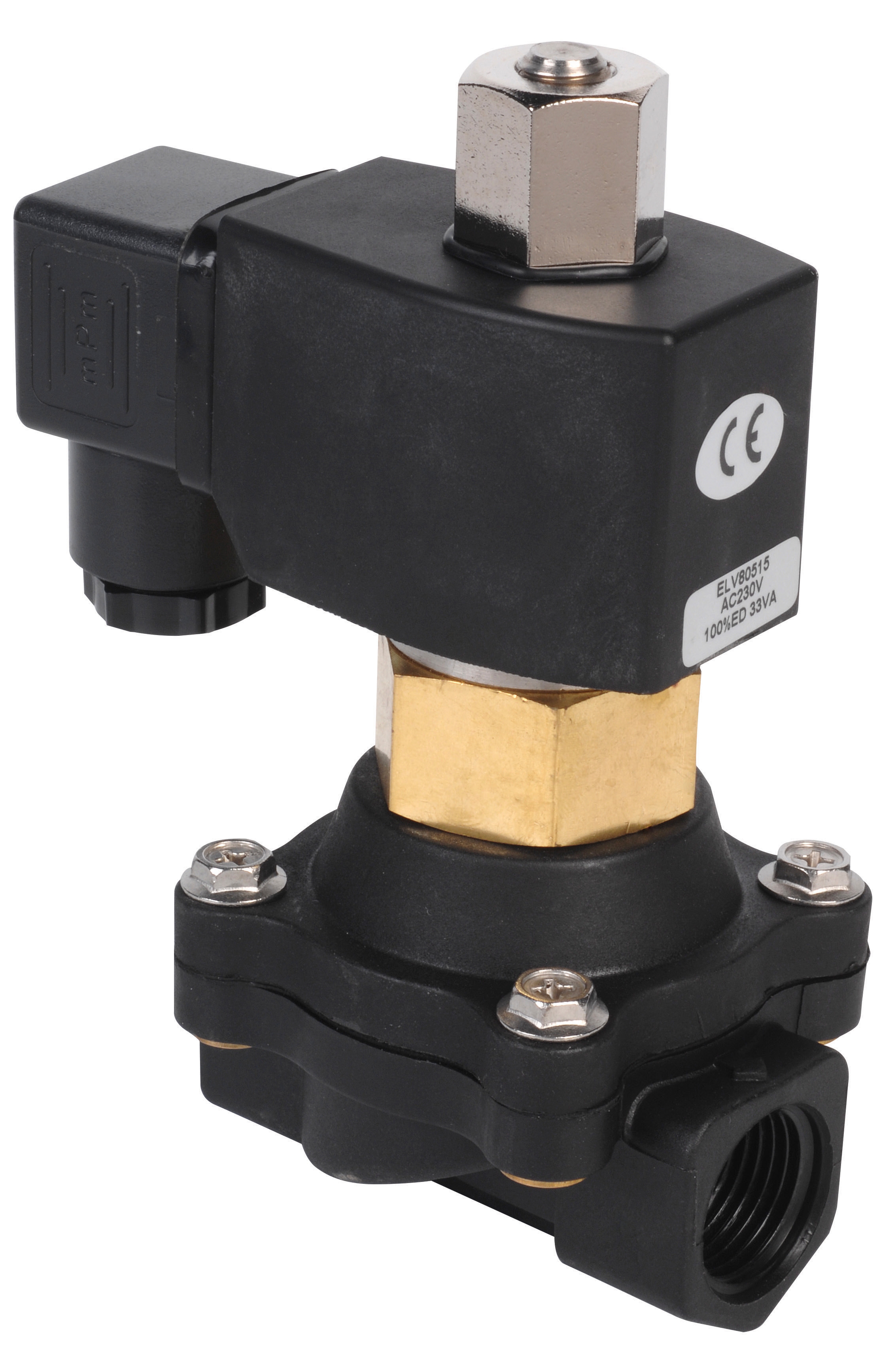

ELV Plastic solenoid valve DN 1" NO 230V
ELV plastic solenoid valve with 1" connection and NO function, rated 230V, handles air, water, and oil to 20 CST with maximum 10 bar differential pressure. Ideal for pneumatic and hydraulic control systems requiring…
SKU 3G-CBM-03289
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
ELV plastic solenoid valve with 1" connection and NO function, rated 230V, handles air, water, and oil to 20 CST with maximum 10 bar differential pressure. Ideal for pneumatic and hydraulic control systems requiring reliable on-off actuation.
Frequently Asked Questions
What is the ELV plastic solenoid valve DN 1" NO 230V used for?
The ELV plastic solenoid valve DN 1" NO 230V is used for on-off control of air, water, and oil (up to 20 CST viscosity) in pneumatic and hydraulic systems. It is a normally open, direct-acting valve rated for 230 VAC, suitable for applications requiring reliable actuation up to 10 bar differential pressure.
What are the specifications of the ELV plastic solenoid valve DN 1" NO 230V?
The ELV plastic solenoid valve (SKU 3G-CBM-03289) has a 1" connection, 25 mm passage diameter, CV value of 12, and power consumption of 57 VA at 230 VAC. It handles air and water from 0–10 bar, oil from 0–5 bar, with a maximum differential pressure of 10 bar and fluid temperature range of -5 to 90 °C.
Where to buy the ELV plastic solenoid valve DN 1" NO 230V in Singapore?
You can source the ELV plastic solenoid valve DN 1" NO 230V from 3G Electric in Singapore. We supply genuine ELV components and handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this normally open, 230 VAC solenoid valve.
How to install the ELV plastic solenoid valve DN 1" NO 230V?
Install the ELV plastic solenoid valve with the flow direction matching the arrow on the body. Use PTFE tape on the 1" male threads and ensure the coil connector (IP65 rated) is securely fastened. The valve is direct-acting and can be mounted in any orientation, but avoid exceeding 10 bar differential pressure or 90 °C fluid temperature.
