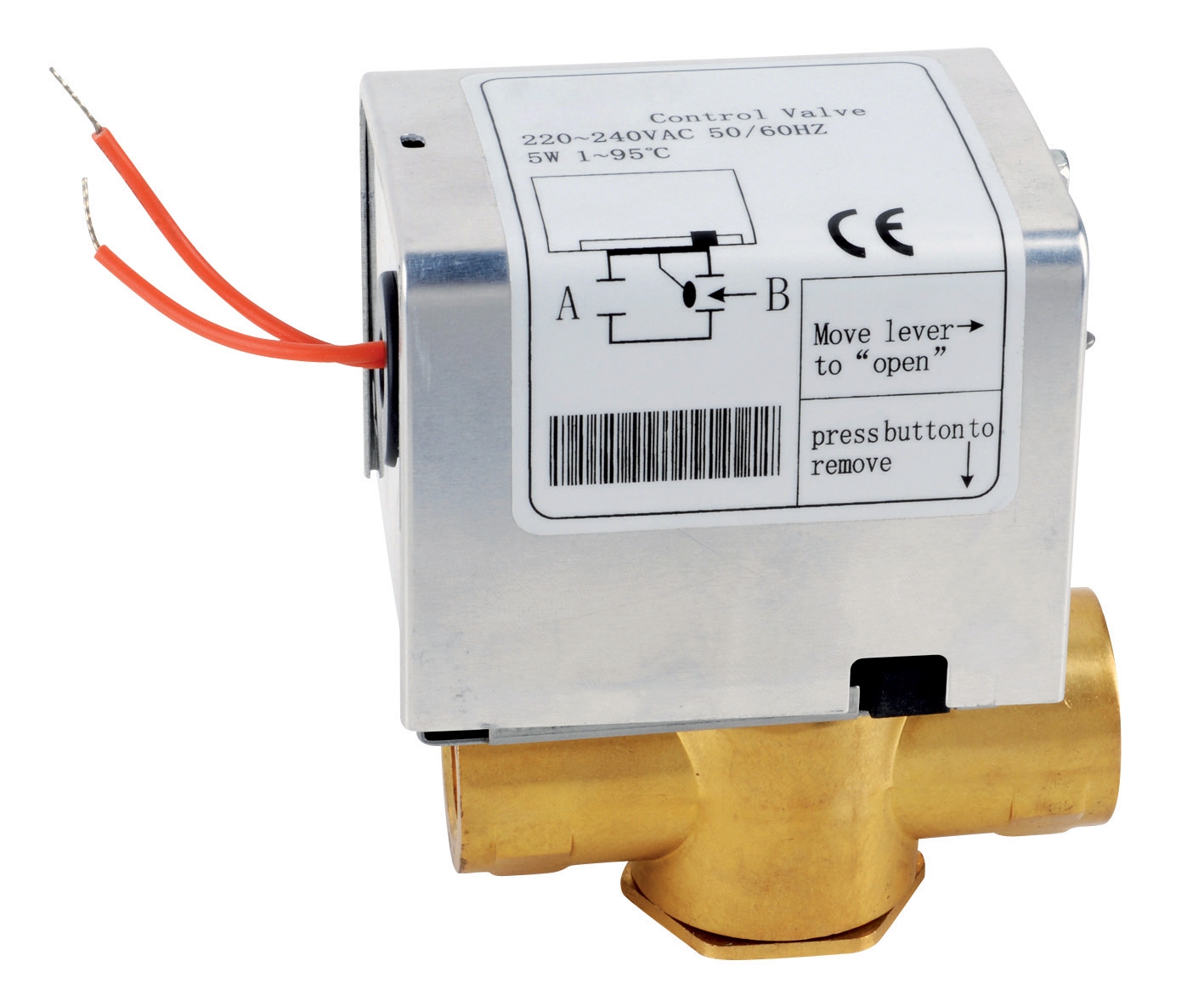

ELV 2-way zone valve 1"

ELV 2-way solenoid zone valve for chilled or hot water systems up to 50% glycol, DN20 connection with 16 bar maximum pressure and 6.5 Kv rating. On-Off control with spring return, opening time under 18 seconds…

SKU 3G-CBM-03292

Also listed as: ELV 60006 · ELV-60006

Brand

ELV

Item

2-way zone valve 1"

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

ELV

fluid

chilled/hot water, up to 50% glycol

cv value

7.5

kv value

6.5

connection

DN20 (1 inch)

closing time

<7s

control mode

On-Off with spring return

max pressure

16 bar

opening time

<18s

supply voltage

AC220V±10%, 50/60Hz

fluid temperature

0°C-94°C

power consumption

6.5W

ambient temperature

0°C-50°C

Datasheet Content

Données Techniques


                    Modèle ELV60002 & 10 ELV60020 & 30 ELV60004 & 12 ELV60022 & 32 3G-CBM-03292 & 14 ELV60024 & 34

               Alimentation                                           AC220V±10%, 50/60Hz
           Consommation                                                           6.5W
         Mode de contrôle                                         On-Off(Ouvert/Fermé) Ressort de rappel
                    Temps                                                Ouverture<18s Fermeture<7s
             Type d'action     N.C. 2 Voies    Déviation 3-Way N.C. 2 Voies          Déviation 3-Way N.C. 2 Voies   Déviation 3-Way
            Pression max                                                         16 Bar
                    Fluide                                    Eau glacée et/ou chaude, jusqu'à 50% de Glycol
                  Câblage                                             2 Fils(Rouge, Bleu) or 5 Fils

    Température ambiante                                             0℃-50℃ sans condensation
     Température du fluide                                                       0℃-94℃
                  Matériel                                   Corps : Laiton - Axe : SS(304) - Joint : EPDM
                  DN Size           DN15            DN15                DN20              DN20           DN25           DN25
                  Filetage                                                     BSPP Femelle
         Diamètre raccord           1/2”              1/2”               3/4”              3/4”              1”           1”
           Valeur Kv (Cv)      2.2（2.5）         2.6（3.0）             3.0（3.5）          3.4（4.0）       6.5（7.5）        6.9（8.0）
Pression de fermeture(Bar)            2                2                 1.8               1.8               1.5          1.5




Dimensions




         Modèle               A(mm)           B(mm)              C(mm)

     DN15 2 Voies              70              23                  86
     DN15 3 Voies              70              33                  86
     DN20 2 Voies              79              23                  90

     DN20 3 Voies              79              34                  90

     DN25 2 Voies              88              23                  95
     DN25 3 Voies              88              42                  95
Câblage




              2 Fils (sans contact auxiliaire)                                         5 Fils (avec contact auxiliaire)


Installations
  1. Lisez attentivement ces instructions. Le non-respect de ces instructions pourrait endommager le produit ou
      provoquer une situation dangereuse.
  2. Vérifier les côtes indiquées dans les instructions et sur le produit pour vous assurer que le produit est
      adapté à votre application.
  3. L’installateur doit être un technicien qualifié et expérimenté.
  4. La vanne doit être installée dans un endroit facile à installer et à entretenir.
  5. L’installation doit être horizontale, cela signifie que le moteur doit être vers le haut de façon à éviter l’humidité.
  6. Lors de l'installation de la vanne 2 voies, le côté B doit être l'entrée et le côté A doit être la sortie (A, B inscrit
      sur le bas du corps de vanne).
  7. Lors de l'installation de la vanne 3 voies, l'entrée se trouve en bas de la vanne (aucune inscription sur le
     corps de vanne).
  8. Pour la vanne 3 voies, le côté B est le NC & le côté A est le NO. Installez le tuyau de sortie, le côté B doit
     être connecté au tuyau pricipal et le côté A doit être connecté au tuyau de dérivation, voir FIG.3.




                                                 2 Voies Normalement fermée
                                        3 Voies
Installations
 Actionneur détachable

                   3.Retirer
                   l'actionneur


                                                  1.Mettre en position ouverte


                 2. Pousser le bouton
