ELVSolenoid Valves

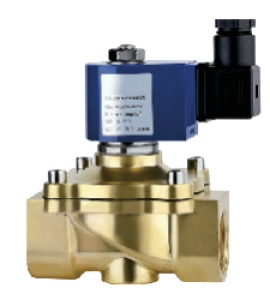

ELV Solenoid valve BC Bronze 3/8" 220v viton

ELV solenoid valve in bronze construction with 3/8" connection for fluid control applications. Rated at 10 bar maximum differential pressure with 4.5 VA power consumption at 220V. Viton seals suit industrial piping…

SKU 3G-CBM-03302

Also listed as: ELV 70002 · ELV-70002

Brand

ELV

Item

Solenoid valve BC Bronze 3/8" 220v viton

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

ELV

cv value

4.8

connection

3/8"

passage diameter mm

16

power consumption 220v va

4.5

max differential pressure bar

10

Datasheet Content

Electrovannes BC Bronze NF Action Directe - Pression différentiel 0                                      Code

      Electrovanne BC 3/8"                       • Avec connecteur, basse consommation                      3G-CBM-03302

      Electrovanne BC 1/2"                       • Avec connecteur, basse consommation                      ELV70004

      Electrovanne BC 3/4"                       • Avec connecteur, basse consommation                      ELV70006

      Electrovanne BC 1"                         • Avec connecteur, basse consommation                      ELV70008

      Electrovanne BC 1" 1/4                     • Avec connecteur, basse consommation                      ELV70010

      Electrovanne BC 1" 1/2                     • Avec connecteur, basse consommation                      ELV70012

      Electrovanne BC 2"                         • Avec connecteur, basse consommation                      ELV70014


      Caractéristiques techniques
                  Modèle             3G-CBM-03302   ELV70004   ELV70006      ELV70008         ELV70010   ELV70012      ELV70014
      Diamètre Raccord                3/8”       1/2”       3/4”             1”           1”1/4      1”1/2           2”
      Diamètre passage               16 mm      16 mm      20 mm          25 mm           32 mm      40 mm         50 mm
      Pression différentielle max.     10         10         10             10              10         10            10
      Valeur CV                        4.8        4.8        7.6            12              12         29            48
      Consommation VA 220 Volt         4.5        4.5        4.5            4.5              6          6             6
      Consommation W 24 Volt           7.2        7.2        7.2            7.2              9          9             9
      Dim L mm                         69         69         73             99             112        123           168
      Dim H mm                        103        103        110             119            129        139           162
      Viscosité fluide                 16         16          4              4
      Fluide                                                          Eau - Air - Fioul
      Pression fonctionnement                                           0 ~ 10 Bar
      Pression maxi                                                       10 Bar
      Température maxi                                                    120°C
      Tension                                                            220 Volt
      Matériel corps                                                      Bronze
      Membrane                                                             Viton
      Mode opération                                                   Action direct
      Type                                                        Normalement fermée
      Protection IP                                                        IP65


      PIÈCES DE RECHANGES POUR VANNES
                  Modèle             3G-CBM-03302   ELV70004   ELV70006      ELV70008         ELV70010   ELV70012   Code
                                                                                                                  ELV70014
      Référence bobine 220 V         ELV93002   ELV93002   ELV93002      ELV93002         ELV93010   ELV93010      ELV93010
      Référence bobine 110 V         ELV93004   ELV93004   ELV93004      ELV93004         ELV93012   ELV93012      ELV93012
      Référence bobine AC 48 V          -          -          -               -              -          -             -
      Référence bobine AC 24 V       ELV93006   ELV93006   ELV93006      ELV93006         ELV93014   ELV93014      ELV93014
      Référence bobine AC 12 V          -          -          -               -              -          -             -
      Référence bobine DC 24 V       ELV93008   ELV93008   ELV93008      ELV93008         ELV93016   ELV93016      ELV93016
      Référence bobine DC 12 V          -          -          -               -              -          -             -
      Référence membrane NBR            -          -          -               -              -          -             -
      Référence membrane EPDM           -          -          -               -              -          -             -
      Référence membrane VITON          -          -          -               -              -          -             -


260

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the ELV solenoid valve BC Bronze 3/8" 220v viton used for?

The ELV solenoid valve BC Bronze 3/8" 220v viton is a direct-acting, normally closed valve for on-off fluid control in industrial piping systems. It handles water, air, and fuel oil (fioul) at temperatures up to 120°C and pressures from 0 to 10 bar, making it suitable for general industrial applications.

What are the specifications of the ELV solenoid valve BC Bronze 3/8" 220v viton?

The ELV solenoid valve BC Bronze 3/8" 220v viton has a 3/8" connection, 16 mm passage diameter, CV value of 4.8, maximum differential pressure of 10 bar, and power consumption of 4.5 VA at 220 V. The bronze body and Viton membrane provide IP65 protection.

Where to buy the ELV solenoid valve BC Bronze 3/8" 220v viton in Singapore?

3G Electric supplies the ELV solenoid valve BC Bronze 3/8" 220v viton to Singapore. We source and deliver this valve, handling logistics and customs clearance so you receive the correct ELV model for your fluid control system.

How to install the ELV solenoid valve BC Bronze 3/8" 220v viton?

Install the ELV solenoid valve BC Bronze 3/8" 220v viton with the flow direction matching the arrow on the body. Ensure the coil connector is properly seated and tightened to maintain IP65 protection. Use thread sealant on the 3/8" connections and verify the supply voltage is 220 V.

Used in

Common applications for ELV

Pneumatic automation and directional control — ELV 2/2-way and 3/2-way pilot-operated solenoid valves in compressed-air circuits

Fluid-power machinery — ELV cavity cartridges and manifold-integrated solenoids in hydraulic and lubrication systems

Packaging and filling equipment — ELV proportional and on-off solenoid valves for rapid actuation and media switching

Water treatment and circulation systems — ELV valves rated for continuous water flow control and process isolation

Gas burner and combustion control — ELV solenoid coils for gas isolation and pilot fuel regulation in industrial burner systems

Maintenance and retrofit projects — ELV replacement solenoid coils and membrane kits for in-service valve replacement without removing the valve body
