ELVSolenoid Valves

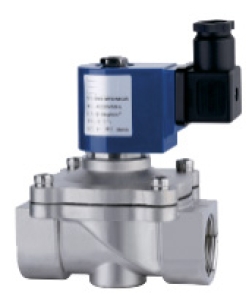

ELV Stainless steel solenoid valve 1"1/4 220v viton

ELV stainless steel solenoid valve for industrial fluid control, rated 220V with 10 bar maximum differential pressure and 1"1/4 connection size. Direct-action design with 32 mm passage diameter serves automation and…

SKU 3G-CBM-03313

Also listed as: ELV 71010 · ELV-71010

Brand

ELV

Item

Stainless steel solenoid valve 1"1/4 220v viton

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

ELV

type

BC Direct Action

cv value

12

connection

1"

dimension l mm

112

connection size

1" 1/4

consumption 24v w

9

consumption 220v va

6

passage diameter mm

32

max differential pressure bar

10

Datasheet Content

Electrovannes BC Inox NF Action Directe - Pression différentiel 0                                       Code

Electrovanne BC 3/8"                       • Avec connecteur, basse consommation                      ELV71002

Electrovanne BC 1/2"                       • Avec connecteur, basse consommation                      ELV71004

Electrovanne BC 3/4"                       • Avec connecteur, basse consommation                      ELV71006

Electrovanne BC 1"                         • Avec connecteur, basse consommation                      ELV71008

Electrovanne BC 1" 1/4                     • Avec connecteur, basse consommation                      3G-CBM-03313

Electrovanne BC 1" 1/2                     • Avec connecteur, basse consommation                      ELV71012

Electrovanne BC 2"                         • Avec connecteur, basse consommation                      ELV71014


Caractéristiques techniques
            Modèle             ELV71002   ELV71004   ELV71006      ELV71008         3G-CBM-03313   ELV71012    ELV71014
Diamètre Raccord                3/8”       1/2”       3/4”             1”           1”1/4      1”1/2         2”
Diamètre passage               16 mm      16 mm      20 mm          25 mm           32 mm      40 mm        50 mm
Pression différentielle max.     10         10         10             10              10         10          10
Valeur CV                        4.8        4.8        7.6            12              12         29          48
Consommation VA 220 Volt         4.5        4.5        4.5            4.5              6          6           6
Consommation W 24 Volt           7.2        7.2        7.2            7.2              9          9           9
Dim L mm                         69         69         73             99             112        123          168
Dim H mm                        103        103        110             119            129        139          162
Viscosité fluide                                                      16
Fluide                                                          Eau - Air - Fioul
Pression fonctionnement                                           0 ~ 10 Bar
Pression maxi                                                       10 Bar
Température maxi                                                    120°C
Tension                                                            220 Volt
Matériel corps                                                        Inox
Membrane                                                             Viton
Mode opération                                                   Action direct
Type                                                        Normalement fermée
Protection IP                                                        IP65


PIÈCES DE RECHANGES POUR VANNES
            Modèle             ELV71002   ELV71004   ELV71006      ELV71008         3G-CBM-03313   ELV71012    ELV71014
Référence bobine 220 V         ELV93002   ELV93002   ELV93002      ELV93002         ELV93010   ELV93010    ELV93010
Référence bobine 110 V         ELV93004   ELV93004   ELV93004      ELV93004         ELV93012   ELV93012    ELV93012
Référence bobine AC 48 V          -          -          -               -              -          -           -
Référence bobine AC 24 V       ELV93006   ELV93006   ELV93006      ELV93006         ELV93014   ELV93014    ELV93014
Référence bobine AC 12 V          -          -          -               -              -          -           -
Référence bobine DC 24 V       ELV93008   ELV93008   ELV93008      ELV93008         ELV93016   ELV93016    ELV93016
Référence bobine DC 12 V          -          -          -               -              -          -           -
Référence membrane NBR            -          -          -               -              -          -           -
Référence membrane EPDM           -          -          -               -              -          -           -
Référence membrane VITON          -          -          -               -              -          -           -


                                                                                                                      261

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the ELV stainless steel solenoid valve 1"1/4 220v viton used for?

The ELV stainless steel solenoid valve is used for industrial fluid control in automation and process applications requiring corrosion resistance. It handles water, air, and fuel oil (fioul) at temperatures up to 120 °C and differential pressures up to 10 bar, making it suitable for chemical, food, and general manufacturing environments.

What are the specifications of the ELV stainless steel solenoid valve 1"1/4 220v viton?

The ELV model 3G-CBM-03313 is a direct-action, normally closed solenoid valve with a 1"1/4 connection, 32 mm passage diameter, CV value of 12, and maximum differential pressure of 10 bar. It operates on 220 V AC with 6 VA consumption, has a stainless steel body, Viton membrane, and IP65 protection.

Where to buy the ELV stainless steel solenoid valve 1"1/4 220v viton in Singapore?

You can source the ELV stainless steel solenoid valve 1"1/4 220v viton through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this ELV direct-action solenoid valve for industrial fluid control.

How to install the ELV stainless steel solenoid valve 1"1/4 220v viton?

Install the ELV solenoid valve with the flow direction matching the arrow on the body. Ensure the 220 V AC supply matches the coil rating (6 VA) and that the system pressure does not exceed 10 bar. Use appropriate thread sealant on the 1"1/4 connections and verify the Viton membrane is compatible with the fluid.

Used in

Common applications for ELV

Pneumatic automation and directional control — ELV 2/2-way and 3/2-way pilot-operated solenoid valves in compressed-air circuits

Fluid-power machinery — ELV cavity cartridges and manifold-integrated solenoids in hydraulic and lubrication systems

Packaging and filling equipment — ELV proportional and on-off solenoid valves for rapid actuation and media switching

Water treatment and circulation systems — ELV valves rated for continuous water flow control and process isolation

Gas burner and combustion control — ELV solenoid coils for gas isolation and pilot fuel regulation in industrial burner systems

Maintenance and retrofit projects — ELV replacement solenoid coils and membrane kits for in-service valve replacement without removing the valve body
